8.3
CVT TRANSMISSION
GEAR SELECTION
SHIFT LINKAGE INSPECTION
NOTE: Shift rod is preset at time of manufacture.
1. Inspect shift linkage rod bushing clips and replace if
worn or damaged. Lubrication of rod ends is not
required.
GEAR SELECTOR REMOVAL
1. Push linkage rod out of bushing clip to remove.
2. Remove bolts attaching gear selector mount to frame.
3. To remove gear selector handle, pry cap off and
remove screw.

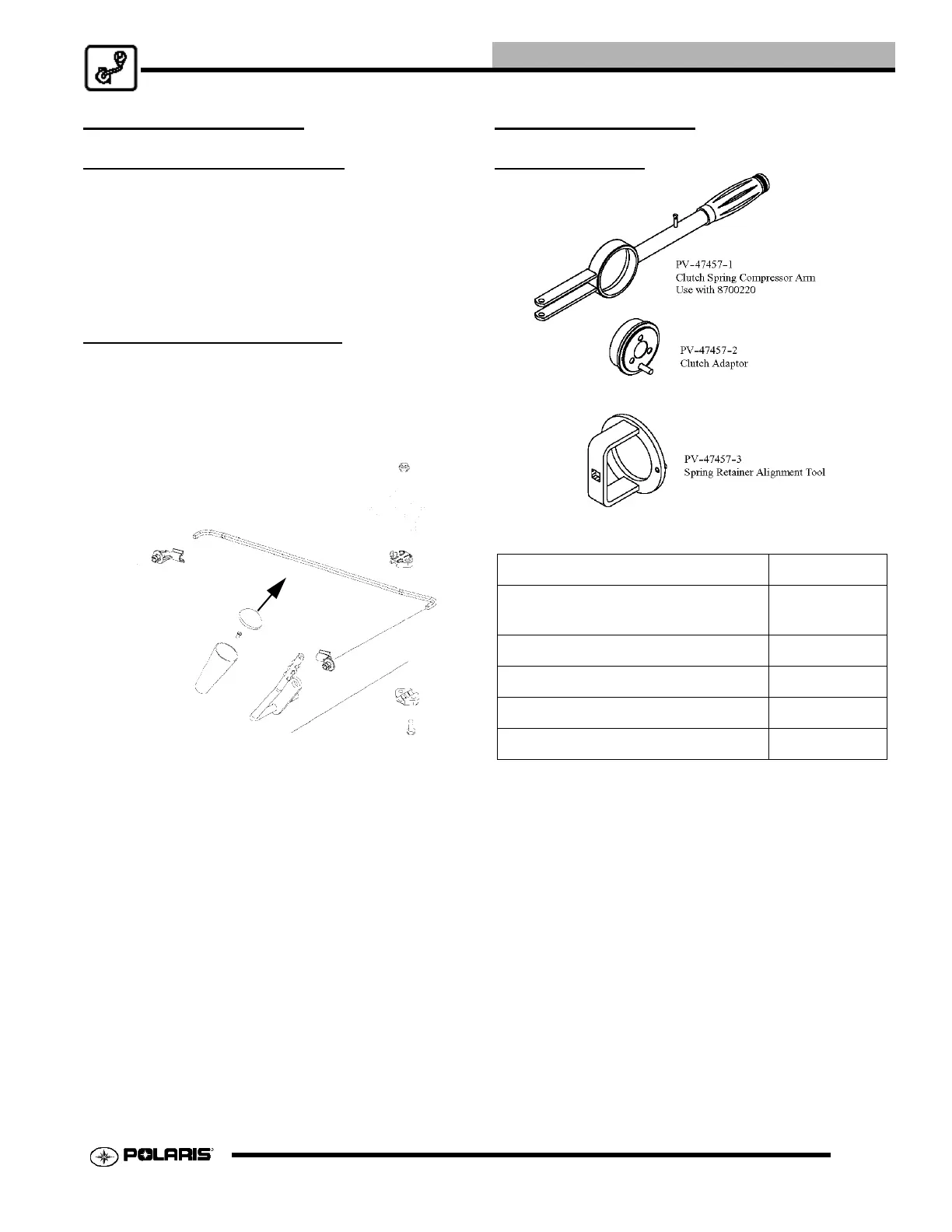

SPECIAL TOOLS
SPECIAL TOOLS
Order tools from SPX Corp. 1-800-328-6657
Clutch Compression Tool 8700220
Arm, Clutch Spring Compressor
(Use with 8700220)
PA-47457-1
Clutch Adaptor PA-47457-2
Spring Retainer Alignment Tool PA-47457-3
Retainer Nut Socket, Driven Clutch PA-46076
Drive Clutch Holder PA-47478
