5.6
BODY AND STEERING

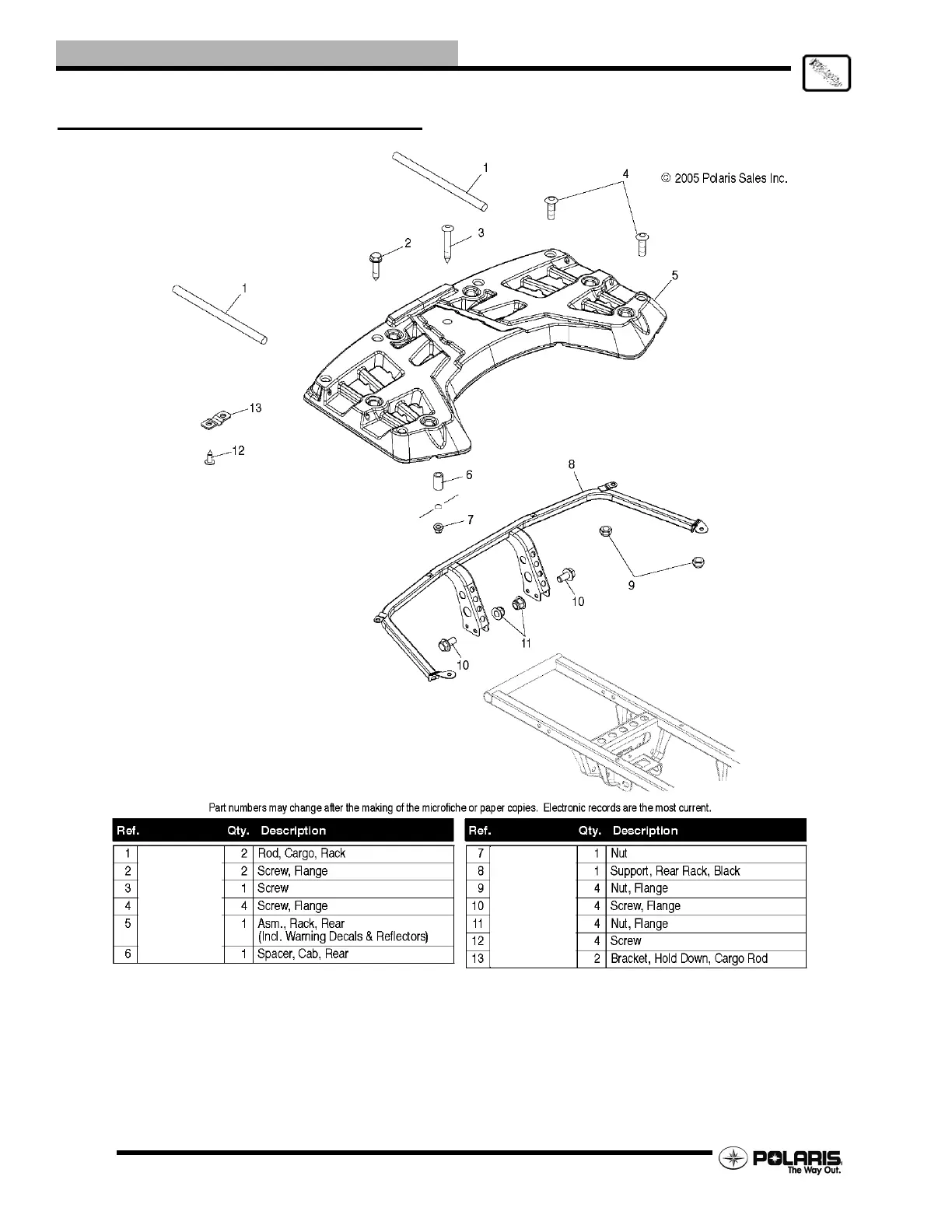

BODY RACK EXPLODED VIEW
REAR RACK REMOVAL/INSTALLATION
1. Remove the fasteners 2,3,7,9,10 and 11.
2. Remove the rear rack.
3. Replace in reverse order.
