7.24
FINAL DRIVE
CV JOINT SERVICE

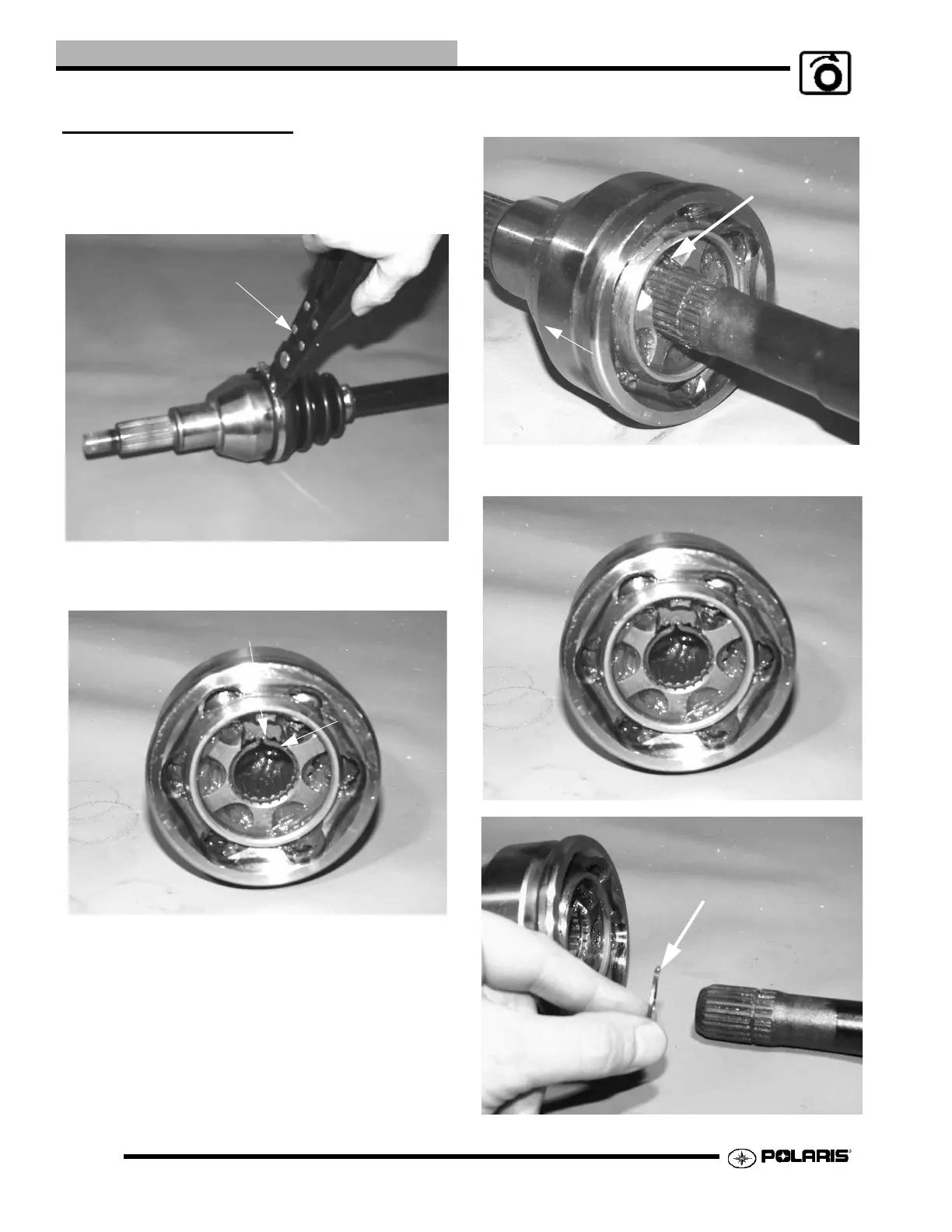

CV Joint Replacement
1. Remove clamps from rubber boot(s) using the CV Boot
Clamp Pliers (PN 8700226) (A).
NOTE: Photo below is shown without shaft for
clarity. Wipe grease away from recess in CV joint
inner hub to locate snap ring
2. Open the snap ring using a snap ring pliers or small needle
nose pliers. Tap CV housing off shaft with a soft faced
hammer while holding snap ring open.
3. Place a new snap ring in the groove of the CV joint inner
hub, with tabs facing the shaft as shown.
A
Snap Ring
Snap Ring Located in recessed area
Tap CV housing
off shaft
Spread ends of snap ring
to remove joint from
Tabs face shaft
To Next Page
