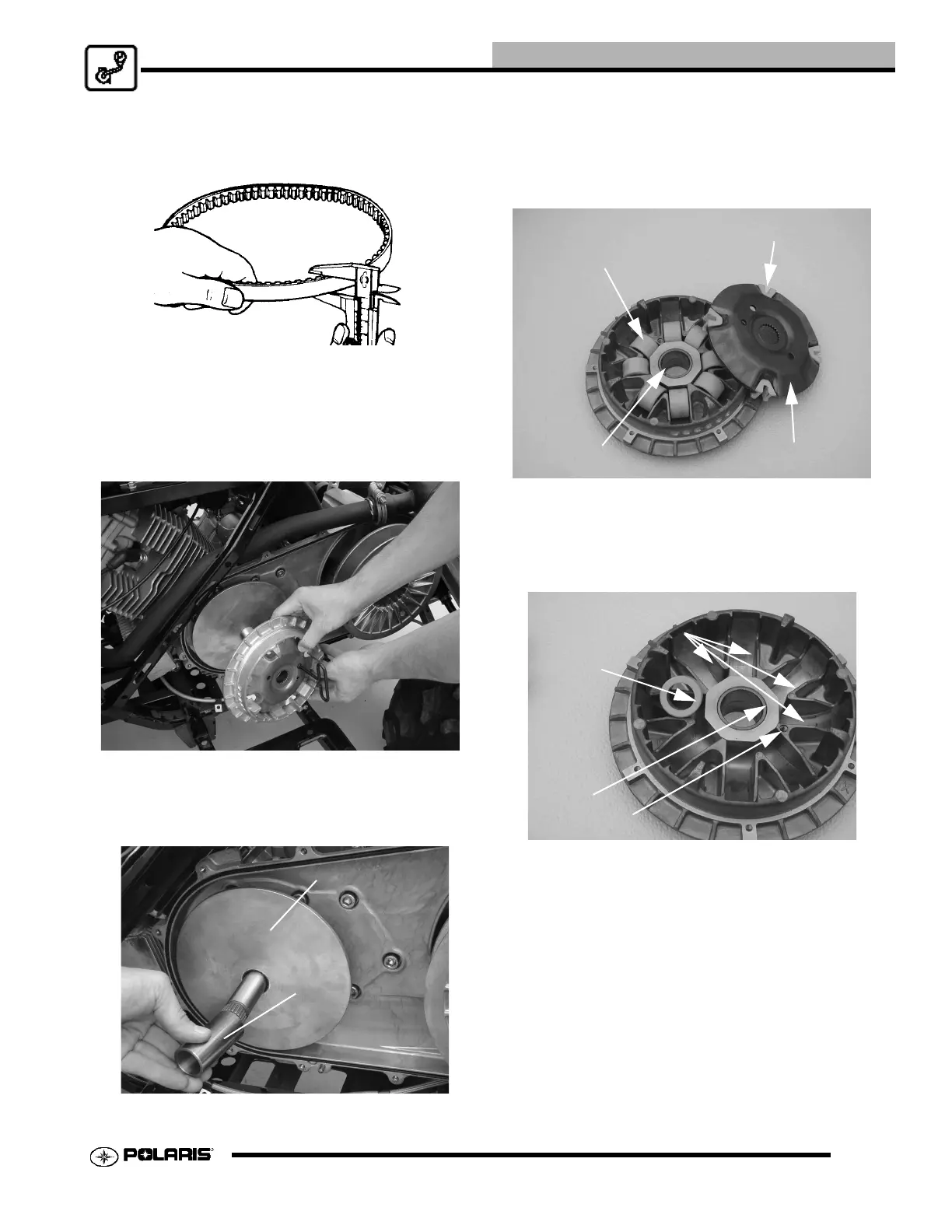

9. Measure belt width and compare to specification.
Replace if any area is worn below the minimum width,
if belt is unevenly worn (hour glassed) or if damaged.
10. Remove the primary sliding sheave and cam plate
assembly as one assembly. Inspect the movable
sheave for scoring, grooving, or abnormal wear.
NOTE: If tool is not installed, be sure to hold cam
plate and primary sliding sheave together to prevent
rollers from falling out of the assembly.
11. Remove sleeve and fixed sheave. Inspect the cooling
fins for damage, the sleeve for wear or rough spots,
and the face of the fixed sheave for wear, grooving or
rough surface.
12. Remove the rollers from the primary sliding sheave.
Check the rollers for wear, deep scoring, or flat spots.
Remove and inspect the slide bushings and cam
plate. Replace any components that found to be worn
excessively or appears abnormal.
13. Note direction of roller thrust surface (wide edge)
toward thrust face of sheave.
14. Inspect bushing for wear.
15. When installing cam plate, be sure to align offset hole
in cover with threaded hole in sheave.
Fixed Sheave
Sleeve
Slide Bushings
Rollers
Bushing
Cam Plate
Wide Surface Of Roller Against Thrust
Surface Of Roller Track
Wide Surface
Bushing
Threaded Hole
