8.17
CVT TRANSMISSION

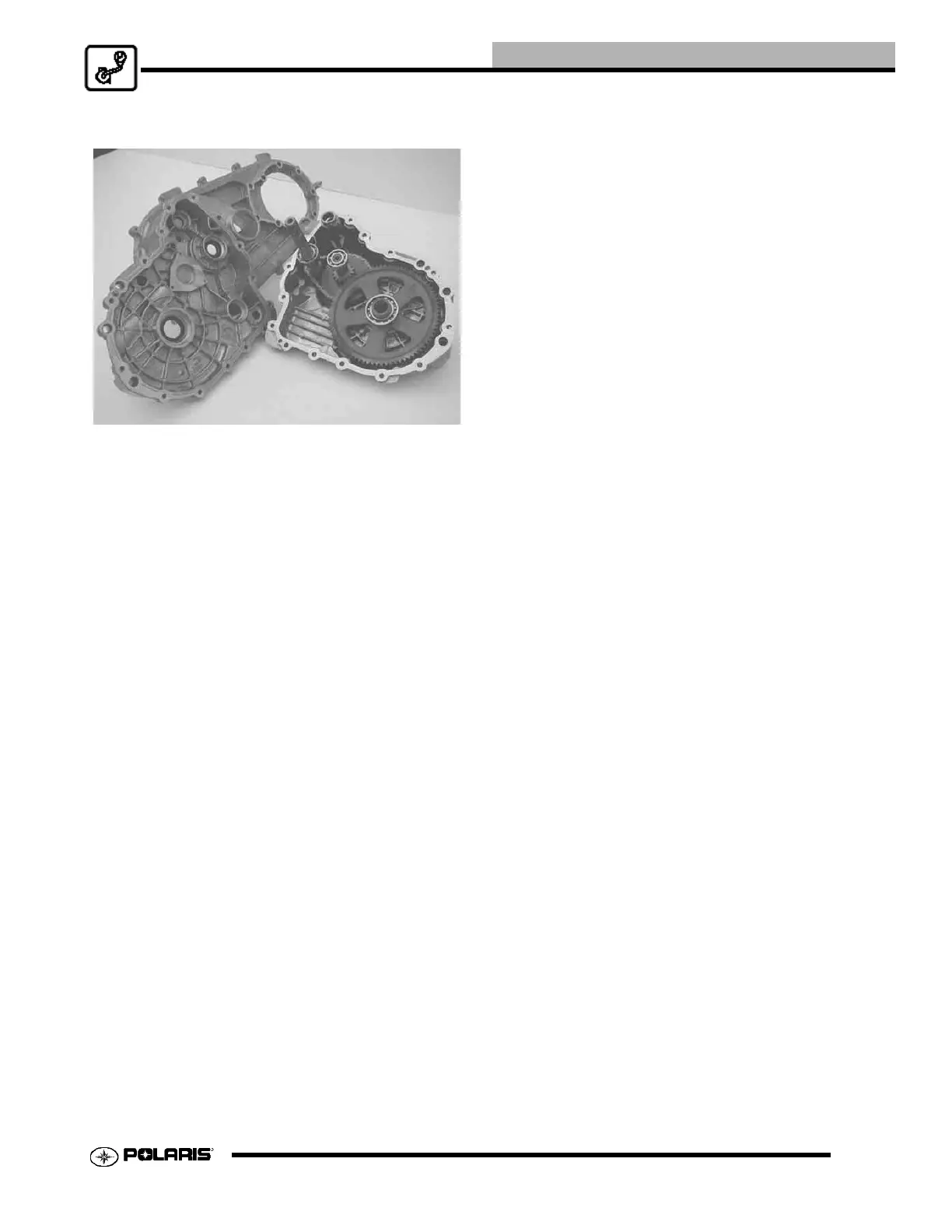

19. Apply 3-Bond 1215 sealant evenly to clean and oil-
free case sealing surfaces.
20. Install the left case and tap it into place until seated.
21. Install bolts and torque in two steps following a cross
pattern to 18 ft. lbs. (24.5 Nm).
22. Install the shift arm (bell crank).
23. Rotate the shafts to be sure they turn smoothly. Verify
shifting through all gears while rotating the shafts.
24. Verify drain plug is tight (18 ft. lbs. (24.5 Nm). Fill
transmission with specified type and quantity. (Refer
to Maintenance Section for procedure).
