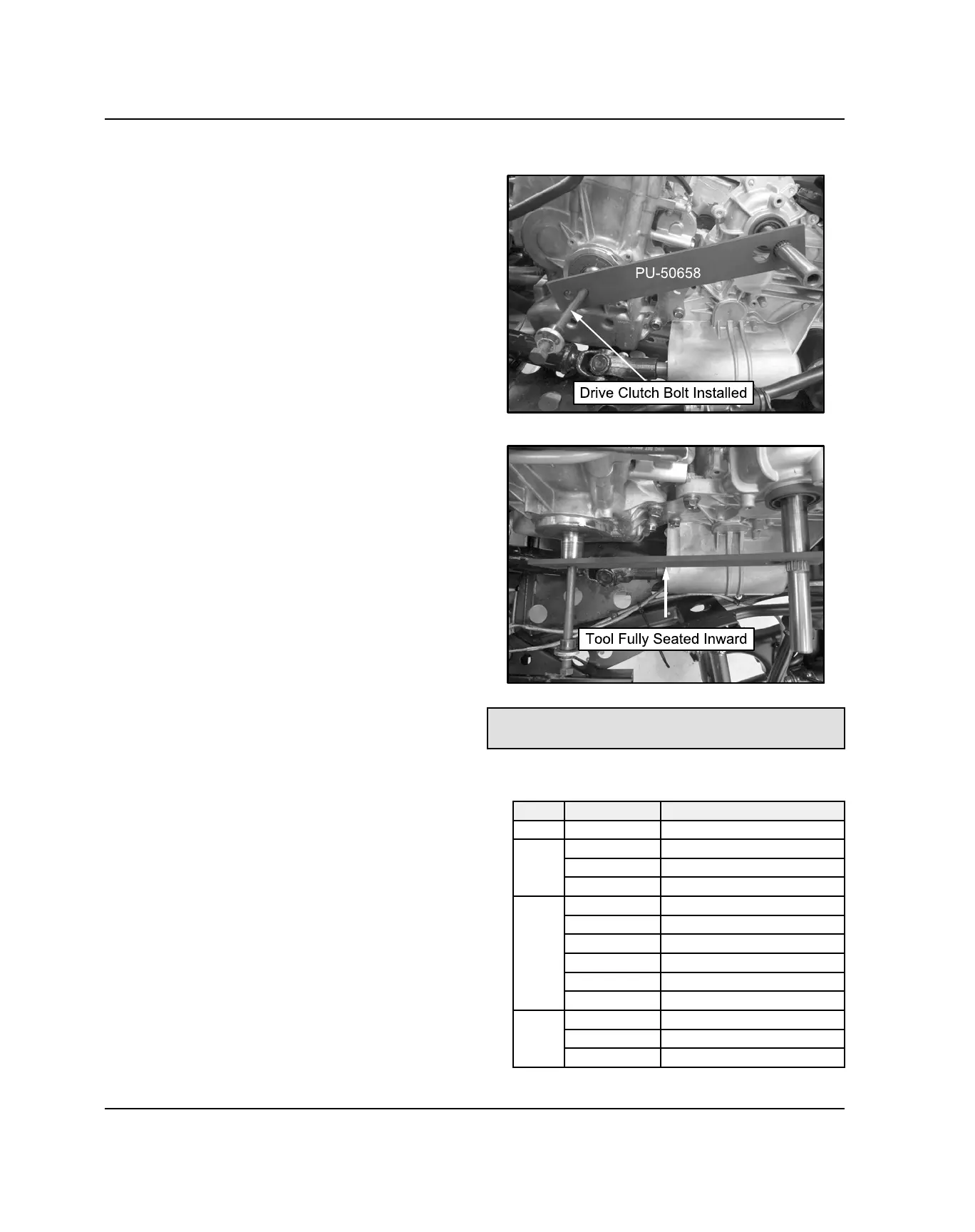

6. Install the Clutch Center Distance Tool onto the
crankshaft and transmission input shaft to properly
position the clutch center distance.
7. The pictures below show the tool properly installed.
Clutch Center Distance Tool:
PU-50658
PU-50658–A
HOLE
YEAR
VEHICLE DESCRIPTION
1 2012 RZR 570
2
2011-14 RZR 900
2014-15 RZR XP 1000
2013 RANGER 900
3
2014-16
ACE
2015-16
ACE 570
2015-16
RGR ETX
2013–16 RZR 570
2014–16
RANGER 570
2015-16
RANGER 570 Full-Size
4
2014-16
RANGER 900
2015-16 RZR 900
2016 RZR 1000
