Getting Started with Your Phone
1 - 5

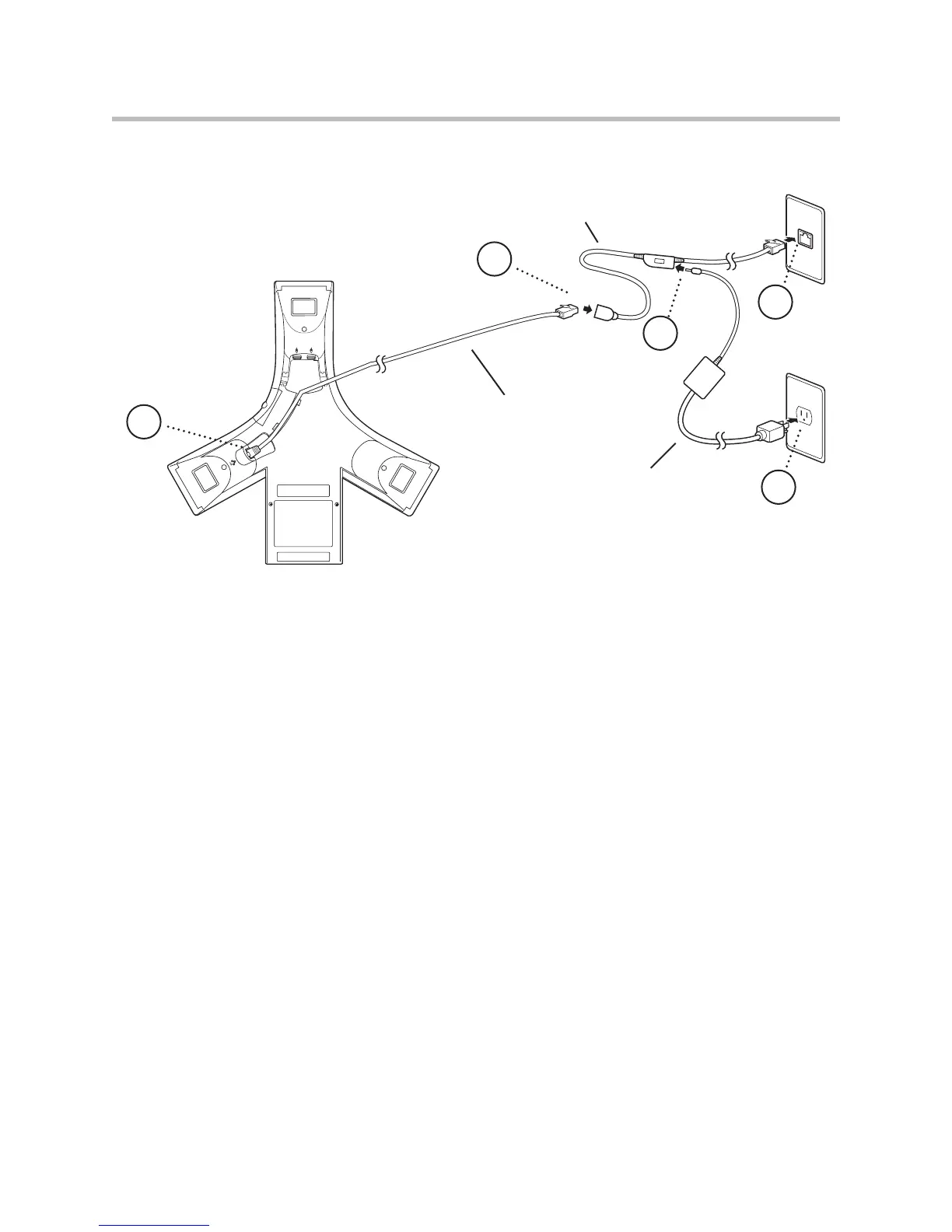

The following figure shows how to connect the phone to an AC power source.
To connect the phone to an AC power source:
1. Connect the 25-foot Network Cable to the LAN jack on the phone.
2. Connect the other end of the 25-foot Network Cable to the
Power Insertion Cable.
3. Connect the Power Insertion Cable to an available LAN port on the wall
or hub/switch device port.
4. Connect the Power Adapter to the Power Insertion Cable.
5. Connect the other end of the Power Adapter (with the attached
Regional Power Cord) to the wall outlet.
Connecting the Phone Using AC Power (One Phone, with Multi-Interface
Module)
You can connect one phone to an AC power source and the Multi-Interface
Module. In this way, you have access to the auxiliary audio connectors on the
module so you can connect speakers, wireless (lapel) microphones, and
recording devices and computers (to record phone calls).
Before you set up a phone using the Multi-Interface Module, make sure you
have the optional Multi-Interface Module Package (containing a
Multi-Interface Module, 12-foot Network Cable (10-pin), Power Adapter, and
Regional Power Cord).
Power Adapter
Power Insertion Cable
25-foot Network Cable
1
2
3
4
5
To Next Page
