Getting Started with Your Phone
1 - 9

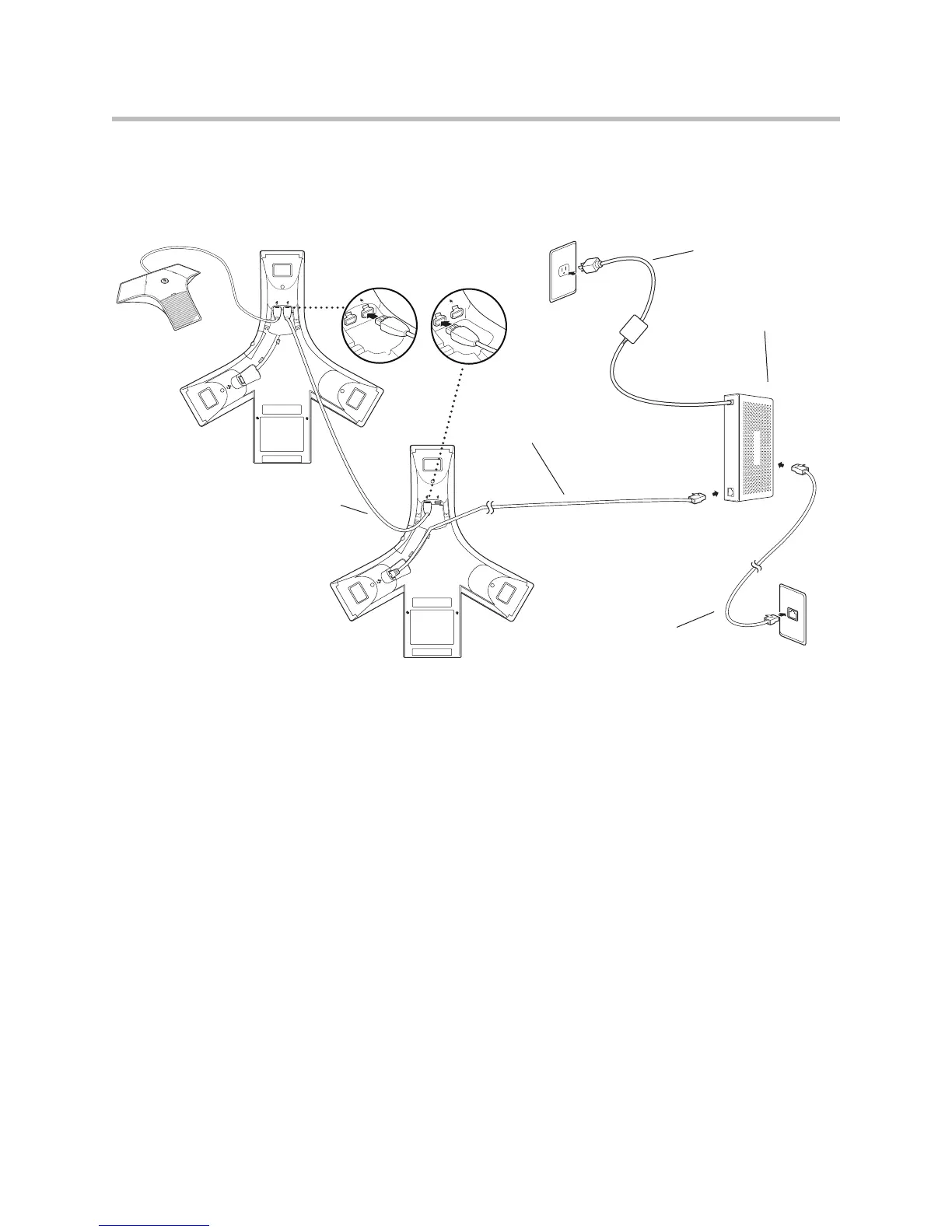

The following figure shows a two phone setup with a SoundStation IP 7000
extended microphone. You would attach a Polycom HDX Microphone Array
in the same way.
Connecting Optional Auxiliary Audio Components
You can connect various auxiliary audio components, such as wireless (lapel)
microphones, speakers, and recording devices and computers (to record
phone calls) to your phone. You can also connect your conference phone to
audio from a mobile phone or a computer calling application. You connect
audio components to one of the following connectors:
2.5mm audio connector on your conference phone—to hear audio from
mobile phones and computer calling applications.
To connect a mobile phone to your conference phone, you require the
optional Mobile Phone Cable. To connect a computer calling application
to your conference phone, you require the optional Computer Calling Kit
(containing a Computer Calling Cable).
Multi-Interface
Module
Console Interconnect Cable
12-foot
Network Cable (10-pin)
25-foot
Network Cable
Power Adapter
