PoolPak MPK series - Page 47

© 2017 PoolPak LLC. All rights reserved. MPK Series - Installation, Operation and Maintenance | 47
PoolPak
®
MPK Series IOM

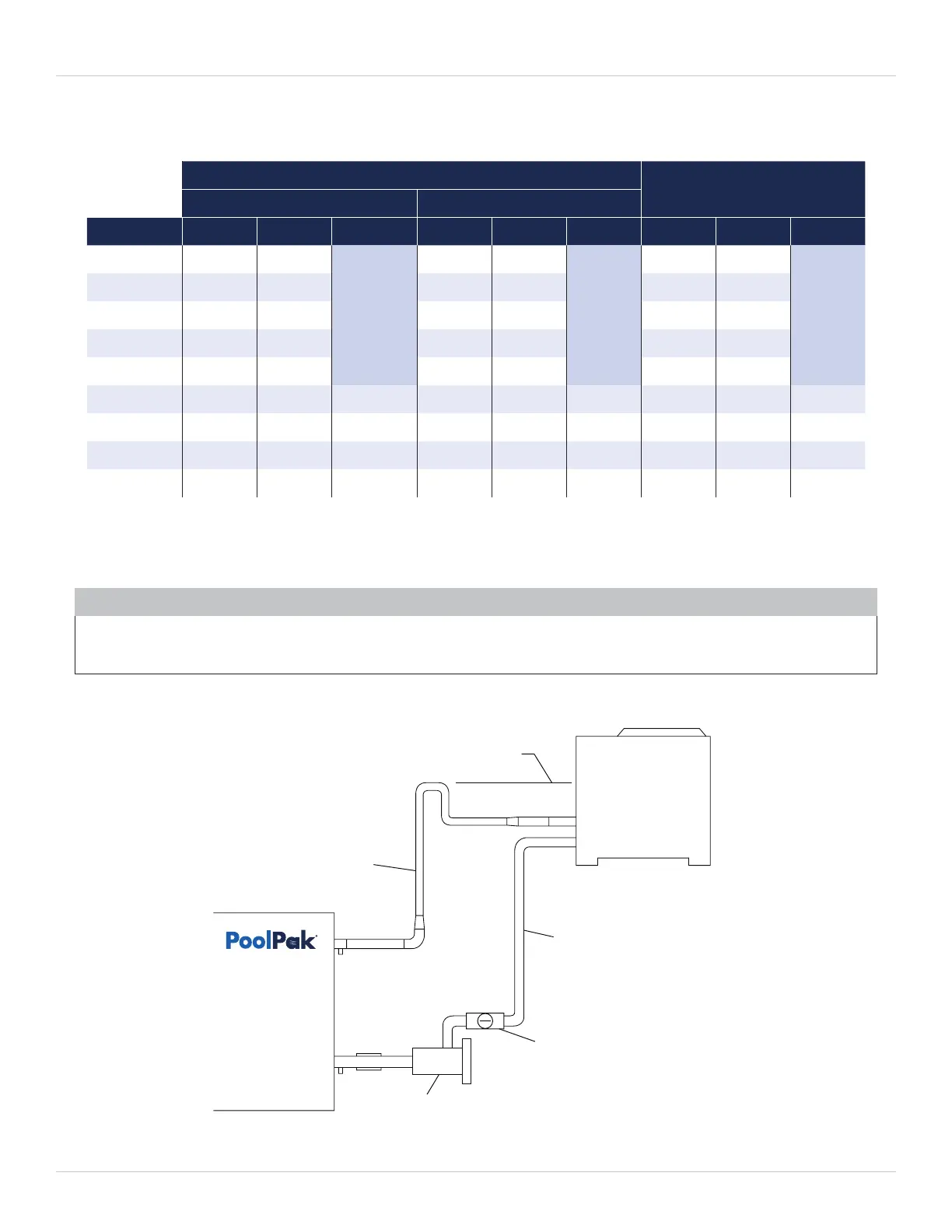

Table 4-1. Pipe Sizes for Remote Refrigerant Condensers
1
Models 060, 070, 080, and 090 have 3 refrigeration circuits piped independently.
2
All pipe diameters are nominal OD inch sizes. Use only certified refrigeration tubing.
Figure 4-13. Remote ACC Above Unit
Above chart is for lineset length less than 100 ft and ACC located less than 50ft above unit or 20ft below unit. Failures due to a
piping layout not within these limits nor receiving prior PoolPak Factory approval will not be covered under PoolPak warranty.
WARNING!
REMOTE
AIR-COOLED OR
WATER-COOLED
CONDENSER
LIQUID
LINE
*
*
TOP OF CONDENSER COIL
HOT GAS LINE
LINE SIZED BALL VALVE
* EVACUATION AND CHARGING PORT
S
REPLACEABLE CORE FILTER DRIER
(Sporlan C-96”N” Series shell. “N” is dependent on liquid line size)
Hot Gas Lines2
Liquid Lines
2
Horizontal Run Vertical Riser
Model
1
Circuit 1 Circuit 2 Circuit 3 Circuit 1 Circuit 2 Circuit 3 Circuit 1 Circuit 2 Circuit 3
030 1-3/8 1-3/8 - 1-3/8 1-3/8
-
7/8 7/8
-
035 1-3/8 1-3/8 - 1-3/8 1-3/8
-
7/8 1-1/8
-
040 1-3/8 1-5/8 - 1-3/8 1-5/8
-
7/8 1-1/8
-
045 1-3/8 1-5/8 - 1-3/8 1-5/8
-
1-1/8 1-1/8
-
050 1-3/8 1-5/8 - 1-3/8 1-5/8
-
1-1/8 1-3/8
-
060 1-3/8 1-3/8 1-3/8 1-3/8 1-3/8 1-3/8 1-1/8 1-1/8 1-1/8
070 1-3/8 1-5/8 1-5/8 1-3/8 1-5/8 1-5/8 1-1/8 1-1/8 1-1/8
080 1-5/8 1-5/8 1-5/8 1-5/8 1-5/8 1-5/8 1-1/8 1-1/8 1-3/8
090 1-5/8 1-5/8 1-5/8 1-5/8 1-5/8 1-5/8 1-1/8 1-3/8 1-3/8
