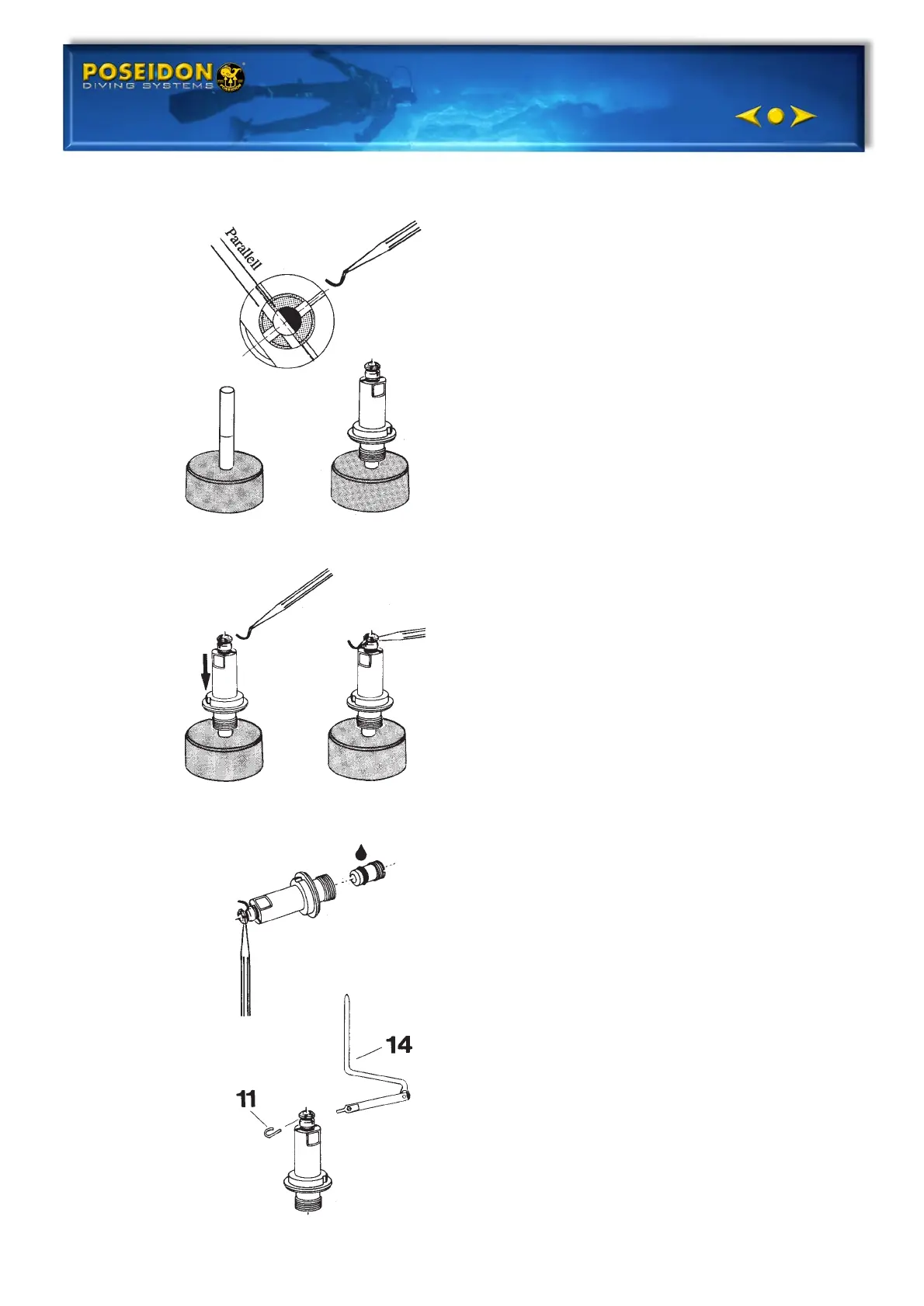

1. Place the valve housing on a
drift seated on a block.
Press the valve housing down,
compressing the spring. Keep
the flat part of the valve piston
parallel with the horizontal slot
in the end of the valve housing.
Move the valve piston up and
down a few times to check for
freedom of movement.
2. Press the valve housing down
and slide an o-ring remover
through the hole in the valve
piston. See diagram.
3. Lubricate the o-ring and the
thread of the valve seat. Screw
in the valve seat with an 8.5 mm
screw driver until the o-ring
remover comes loose.
4. Install the operating device (14).
Insert the lever pin (11) through
the slot, engaging the hole in
the operating device. Rotate the
lever pin 90 degrees to lock it in
place.
