CYKLON
1.0:E55

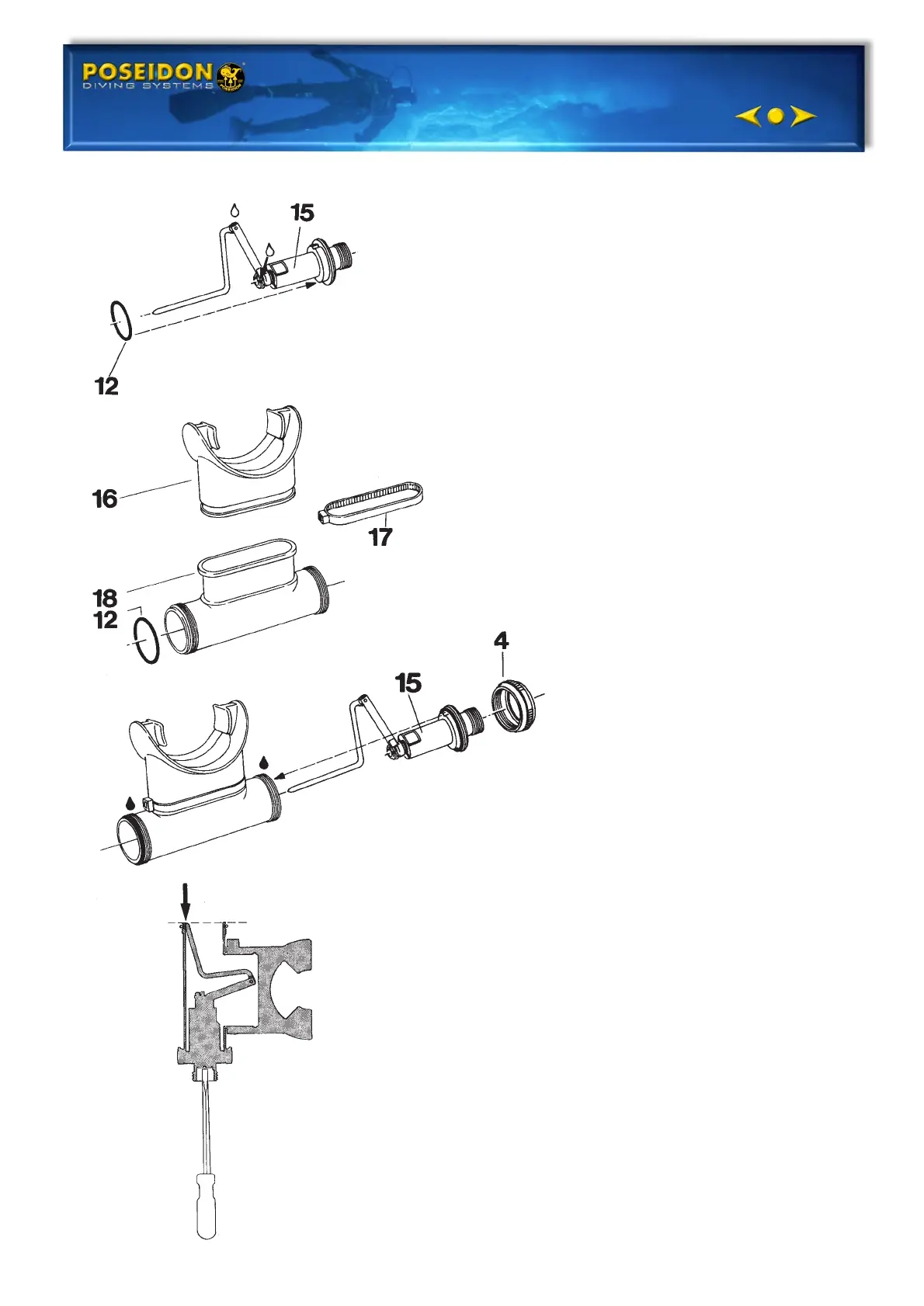

1. Install the o-ring (12).
Lubricate. See diagram.
2. Install the mouth piece (16) and
the plastic band (17). Tighten
and cut off plasticband with
plastic band pliers.
3. Install the o-ring .(12)
4. Lubricate the threads on the
mouth piece
5. Install the low pressure valve
(15) in the mouth piece tube.
Set the indent notch at the top
of the valve housing against the
key at the top of the mouth
piece tube. Screw on the
connecting ring (4).
6. Screw the valve seat down until
the highest part of the
operating device is even with
the level og the opening of the
mouth piece tube. Hold the
second stage valve vertically.
See fig.
