CYKLON
1.0:E56

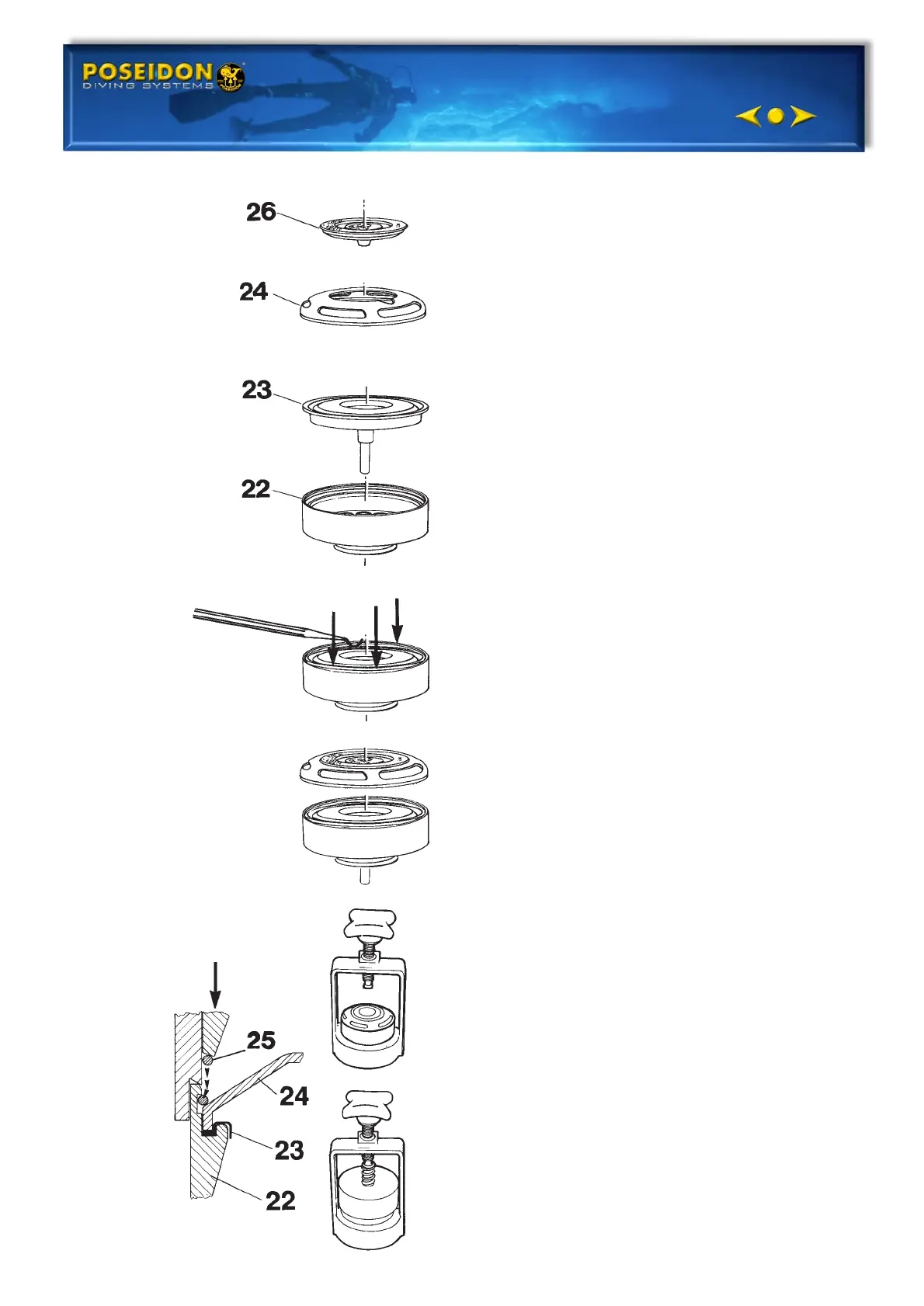

1. Install the purge button (26) in
the cover (24).Screw the button
in the cover-cavity
2. Install the inhalation diaphragm
(23) on the diaphragm housing
(22).
3. Seat the lip on the diaphragm
into the recess on the inner rim
of the diaphragm housing. Use
an o-ring remover or other
blunt pointed instrument.
4. Set the inhalation cover (24) on
the diaphragm housing over the
diaphragm.
5. Place the diaphragm housing
complete with diaphragm and
cover into the frame of the
assembly tool.
6. Insert the locking ring (25) into
the upper groove of the press of
the assembly tool. See diagram
7. Place the press on top on the
diaphragm housing.
8. Tum the knob until you hear or
feel a slight click. Continue
turning until you encounter
resistance, then back off the
knob to release the housing.
9. Check the locking ring
placement to make sure that it
has completely entered the
groove.
