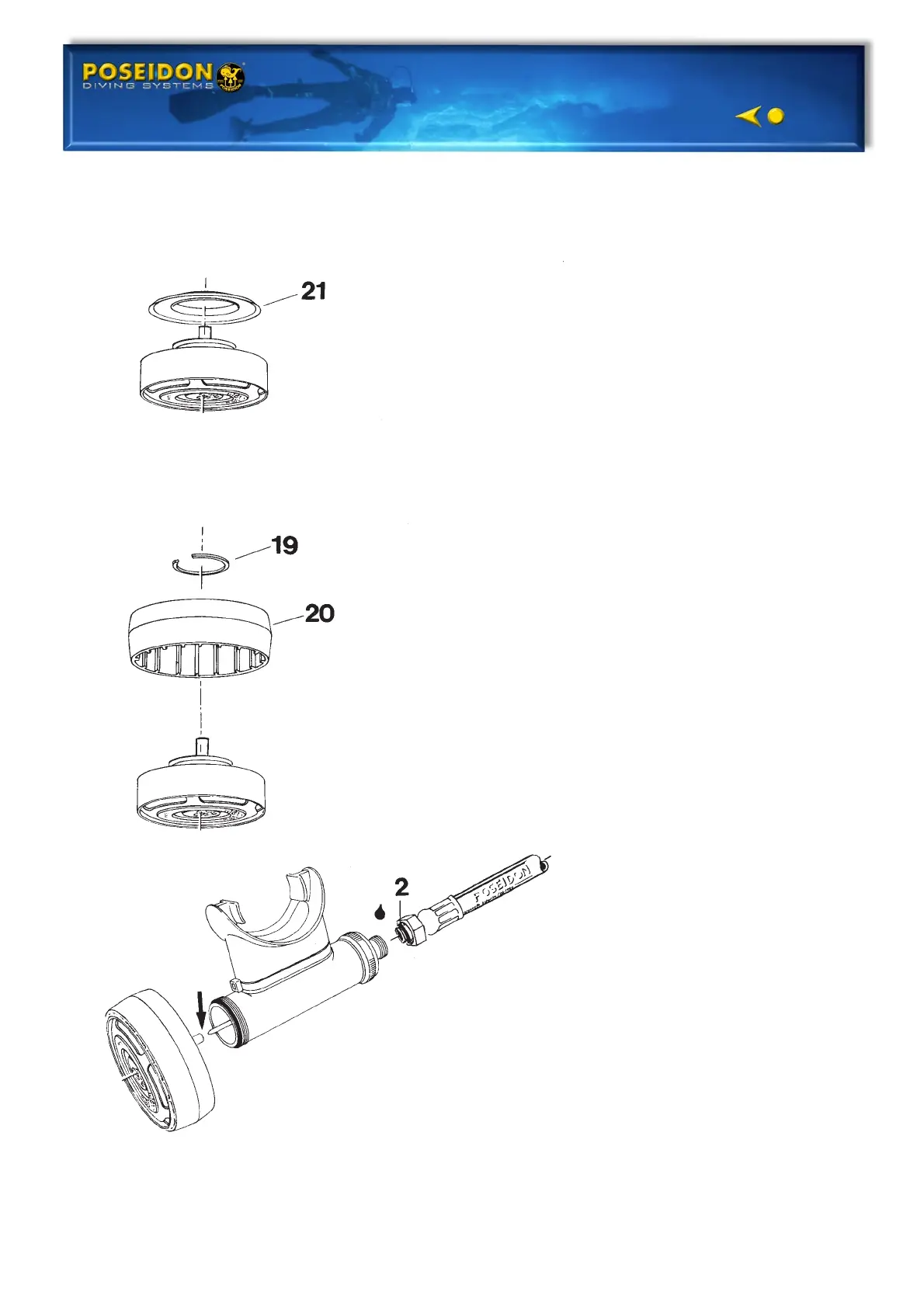

1. Install the exhalation diaphragm
(21) on the diaphragm housing.
Control that the diaphragm is
packing on the diaphragm
housing.
2. Install exhalation diaphragm
cover (20) and locking ring (19).
3. Install the diaphragm housing
on the mouthpiece tube. Be
sure to slip the operating device
into the diaphragm guide
sleeve.
4. Checking the second stage for
leaks: Place the mouth piece
against your lips the low
pressure hose correction with
your thumb and inhale lightly.
This will create a partial vacuum
inside the second stage. If the
pressure does not equalize in 5
seconds the second stage leaks.
See chapter Fault-tracing
scheme.
5. Install the o-ring (2) on the LP
hose and lubricate
6. Screw on the LP-hose. Do not
tighten the connecting ring
until after the function test.
