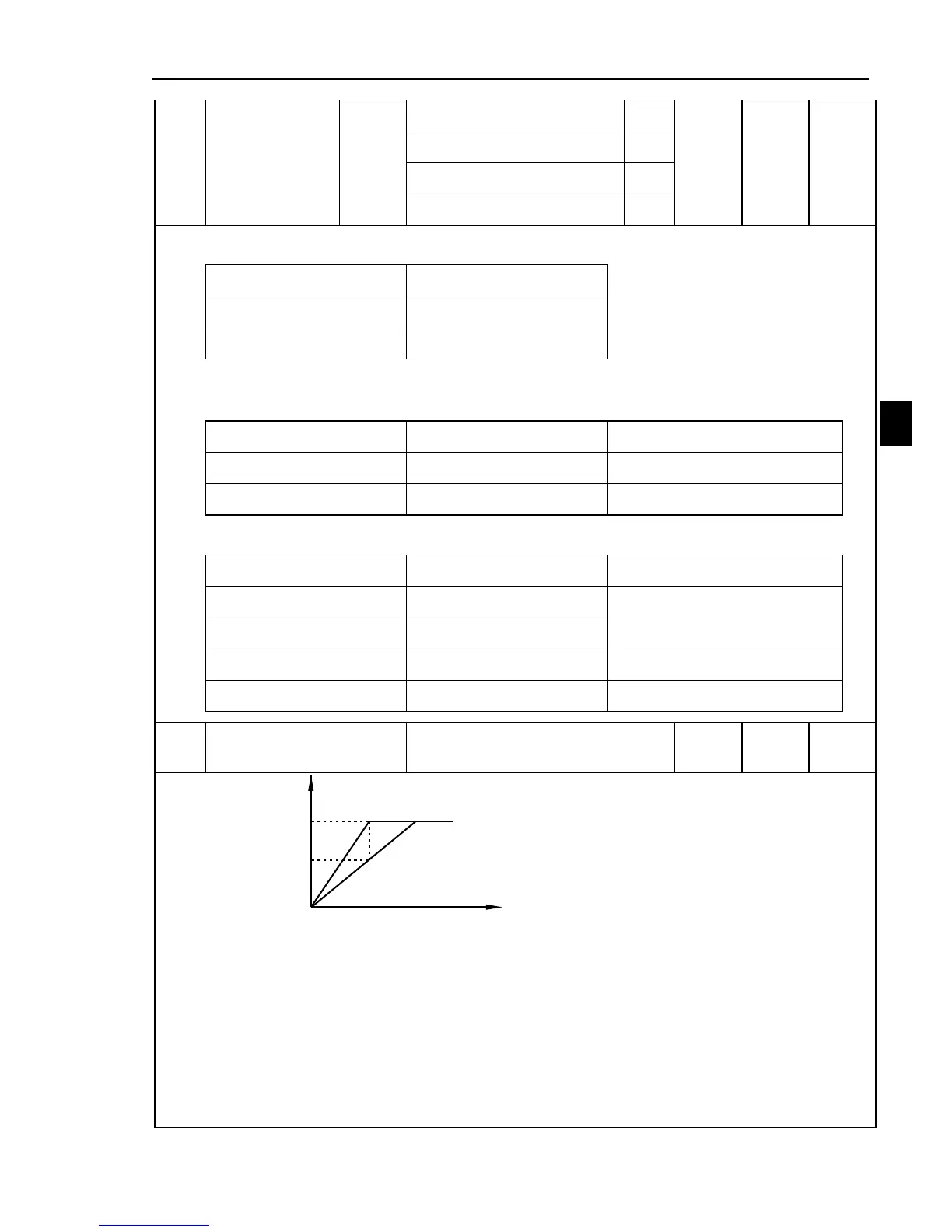

Section V Parameter Function Table
37
Section V
word
10 bit
Running time: *s
0
Running time: *min
1
Running time: *h
2
Running time: *day
3
Unit adjustment of actual running time.It is only valid on program running.
1 bit: Program running on multi-speed running period, Set bit to running direction of “0”step speed.
Running direction
Setting value
FWD
0
REV
1
When running control mode F05＝0/1/2, control direction of “0” step speed.
When running control mode F05＝3,Setting the value and terminal FWD/REV jointly decide
the direction of 0 step speed, FWD priority.
FWD=1runningdirection
REV=1runningdirection
Setting value
FWD
REV
0
REV
FWD
1
10 bit: Unit of time running when on “0” step speed.
The unit of O67、o68 limited time 1，limited time 2.
Running time
10 bit
Range(e.g. H18~H25=3200.0)
*s
0
3200.0 s
*min
1
3200.0 min
*h
2
3200.0 h
*day
3
3200.0 day
F50
Energy saving running
percentage
30~100
%
100
N
frequency (Hz)
output voltatge (V)
100%
75%
This parameter describes the minimum output voltage percentage of energy-saving
operation. In the constant speed operation, the inverter can be automatically calculated the best
output voltage by the load condition. In the process of acceleration and deceleration is not to
make such calculations.
Power-saving function is by lowering the output voltage and improve power factor to
achieve the purpose of saving energy, this parameter determines the minimum value of reducing
of output voltage; This parameter is set to 100%, then energy-saving function will take off.
When energy-saving function in effect, Actual output voltage value of inverter= The inverter
rated output voltage*The percentage of output voltage*output voltage percentage of energy
saving operation.
