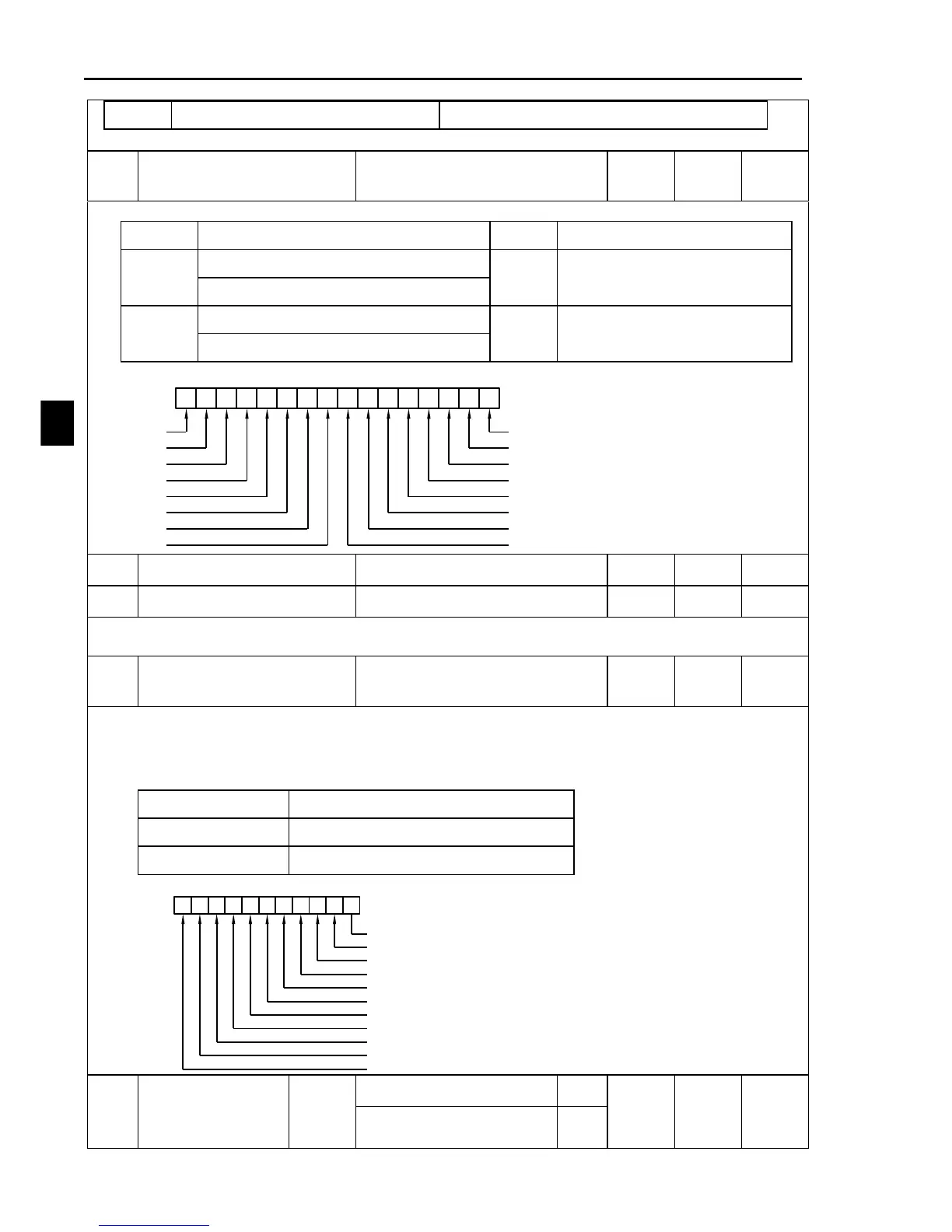

Powtran PI8600 Series User Manual

Section V Parameter Function Table
66
Section V
effective system E_set fault
o47
Polarity of input and output
terminals
0000~F7FF
-
0000
Y
This parameter is used to select each IO pin polarity in which the effective.
0~10
Input terminal polarity
12~15
Output terminal polarity
0
Low level valid (closed)
0
Low level valid (closed)
Falling edge valid, rising edge invali
1
High level valid(disconnect)
1
High level valid(disconnect)
Falling edge valid, rising edge invalid
15 14 13 12 11 10 9 8
7
6
5 4
3 2 1 0
2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2
14 13 0123
45
6
7
89101112
DI1
DI2
DI3
DI4
DI5
DI6
DI7
DI8AI1
AI2
AI3
15
O4
O3
O2
O1
leave unused
o48
Input response time 0
0.001~30.000
s
0.005
Y
o49
Input response time 1
0.001~30.000
s
0.005
Y
o48，o49 Define the response time of input，Select the response time of corresponding
input terminals by o50.
o50
Response time of input
terminal selection
0~07FF
-
0
Y
o48，o49 define the response time of input terminal, o50 to select corresponding terminal
response time.
The delay time of input terminal is valid for both closed and disconnected motion.
This parameter is used to choose input response time of each terminal
Set 0~10 bit
Polarity of input terminal
0
o48 input terminal response time 0
1
o49 input terminal response time 1
DI8
DI7
DI6
DI5
DI4
DI3
DI2
DI1
7
6
5 4
3 2 1 0
22222222
01234567
10
9 8
2 2 2
8910
AI1
AI2
AI3
o51
Counter
configuration
1 bit
Cycle counting operation
0
-
0
Y
Single cycle counting
operation
1
