Powtran PI8600 Series User Manual

Section V Parameter Function Table
76
Section V
H34
5 Segment deceleration
time dt5
0.0~3200.0
s
10.0
Y
H35
6 Segment acceleration
time at6
0.0~3200.0
s
10.0
Y
H36
6 Segment deceleration
time dt6
0.0~3200.0
s
10.0
Y
H37
7 Segment acceleration
time at7
0.0~3200.0
s
10.0
Y
H38
7 Segment deceleration
time dt7
0.0~3200.0
s
10.0
Y
H39
1 Segment deceleration
time dt1
0.0~3200.0
s
10.0
Y
Remark: at1: 1 segment acceleration time;at2: 2 segment acceleration time;dt2: 2 segment
deceleration time;dt3: 3 segment deceleration time.
Set the Acc/Dec time of 7 steps respectively. They determine the time needed to reach the
speed, respectively depending on the acceleration time for acceleration or on the deceleration
time for deceleration, but the time is not the actual time needed. Actual acc/dec time equals to the
set acc/dec time multiples a time multiple which is decided by the hundreds and thousands digit
of H40~H46. Please refer to H40~H46.

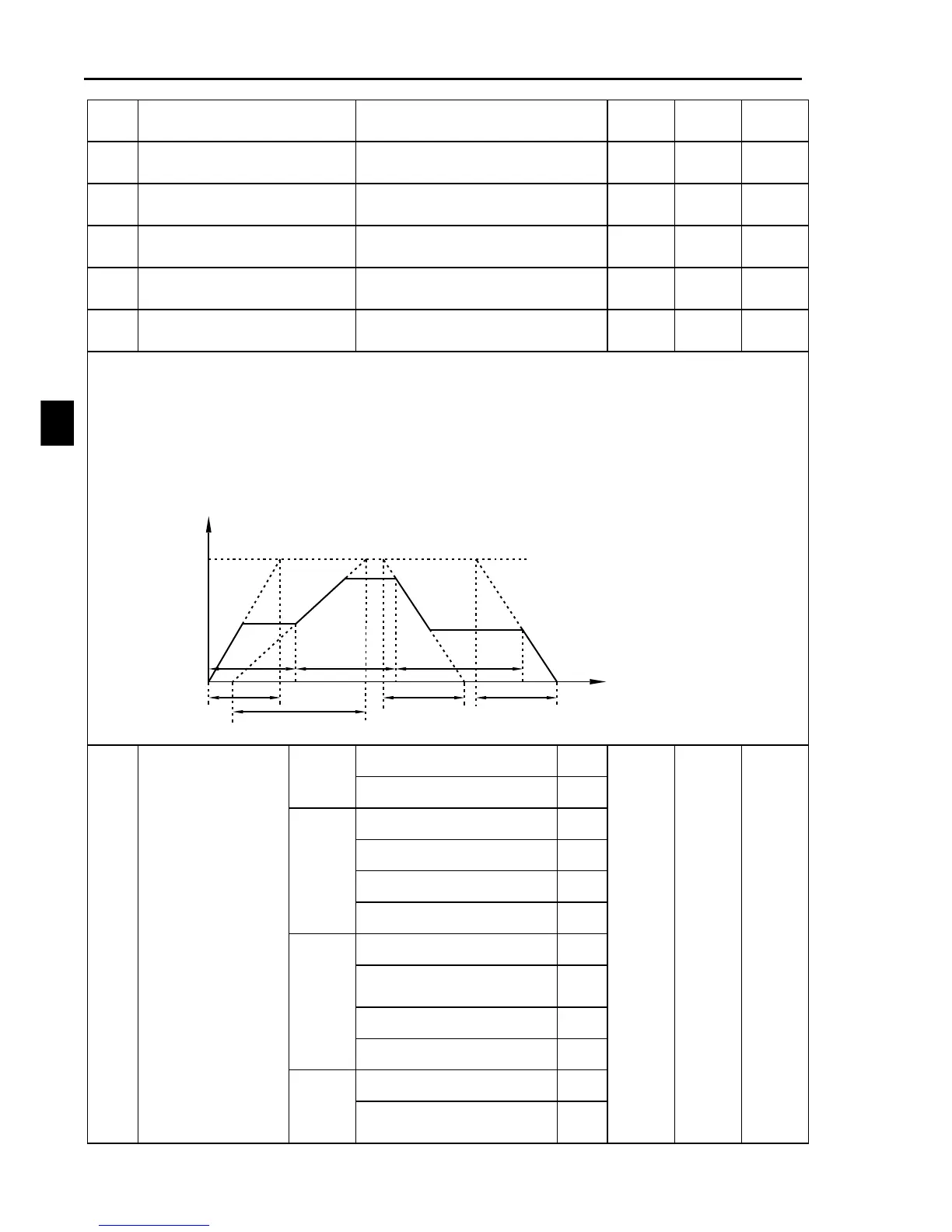

Definite acceleration and deceleration time for multi-step speed:
output
frequency
time
Definition of multi-step speed acceleration/deceleration time
T3T2T1
dt3dt2
at2
at1
3X
2X
1X
H40
H41
H42
H43
H44
H45
H46
1Segment speed
configuration word
2Segment speed
configuration word
3Segment speed
configuration word
4Segment speed
configuration word
5Segment speed
configuration word
6Segment speed
configuration word
7Segment speed
configuration word
1 bit
Running direction:forward
0
-
-
-
-
-
-
-
0000
0000
0000
0000
0000
0000
0000
Y
Y
Y
Y
Y
Y
Y
Running direction: reverse
1
10 bit
Running time: *seconds
0
Running time: *munites
1
Running time: *hours
2
Running time: *days
3
100 bit
Acceleration time:*seconds
0
Acceleration time: *
munites
1
Acceleration time:*hours
2
Acceleration time:*days
3
1000bit
Deceleration time:*seconds
0
Deceleration time:*
munites
1
