54 55

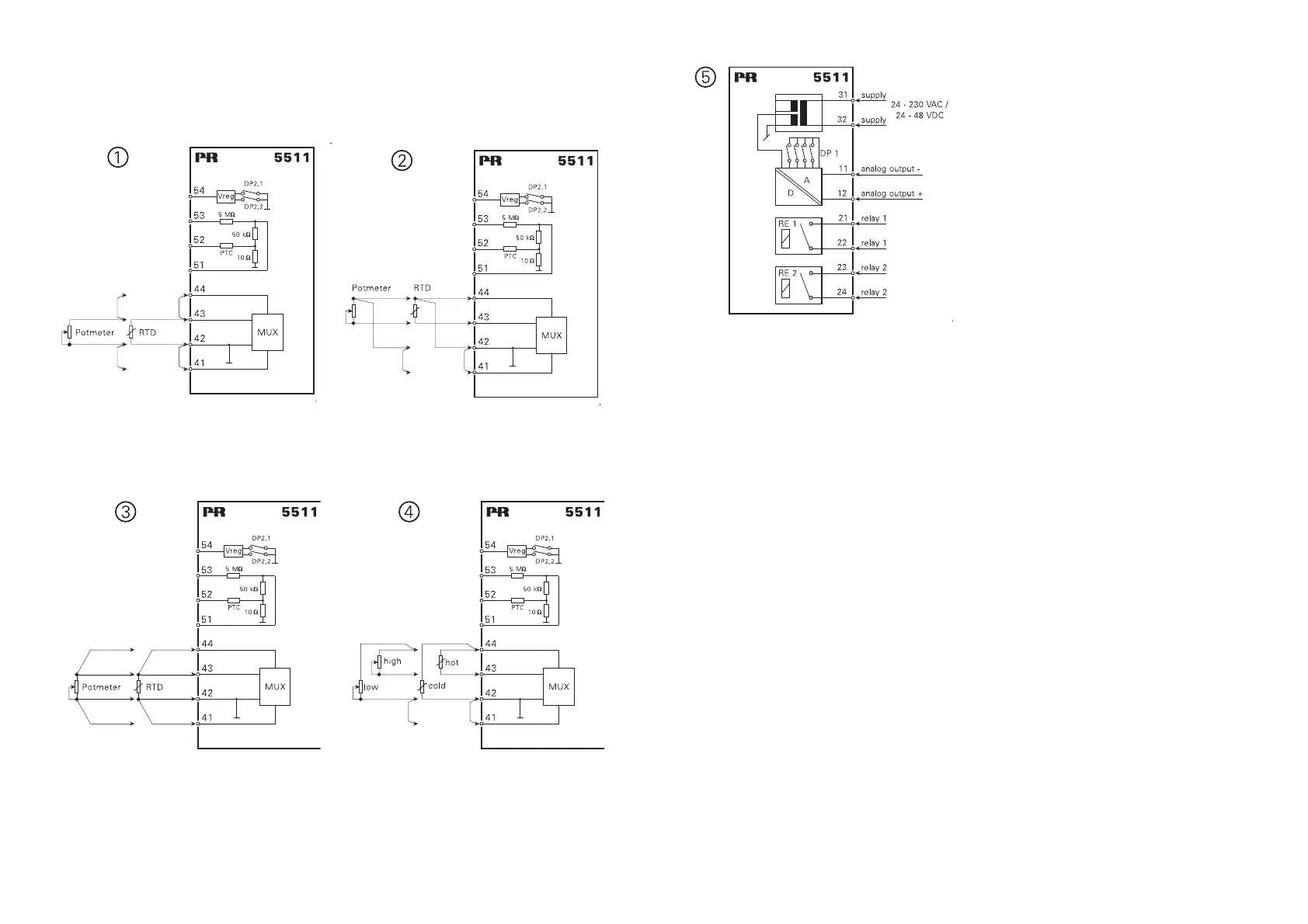

Wiring diagrams

for RTD and resistance input

2-wire input for RTD temperature

sensor and variable resistance

(potentiometer).

3-wire input for RTD temperature

sensor and variable resistance

(potentiometer).

4-wire input for RTD temperature

sensor and variable resistance

(potentiometer).

Differential input for RTD temperature

sensor and variable resistance

(potentiometers).

Wiring of power supply, analogue

output and relay outputs.
