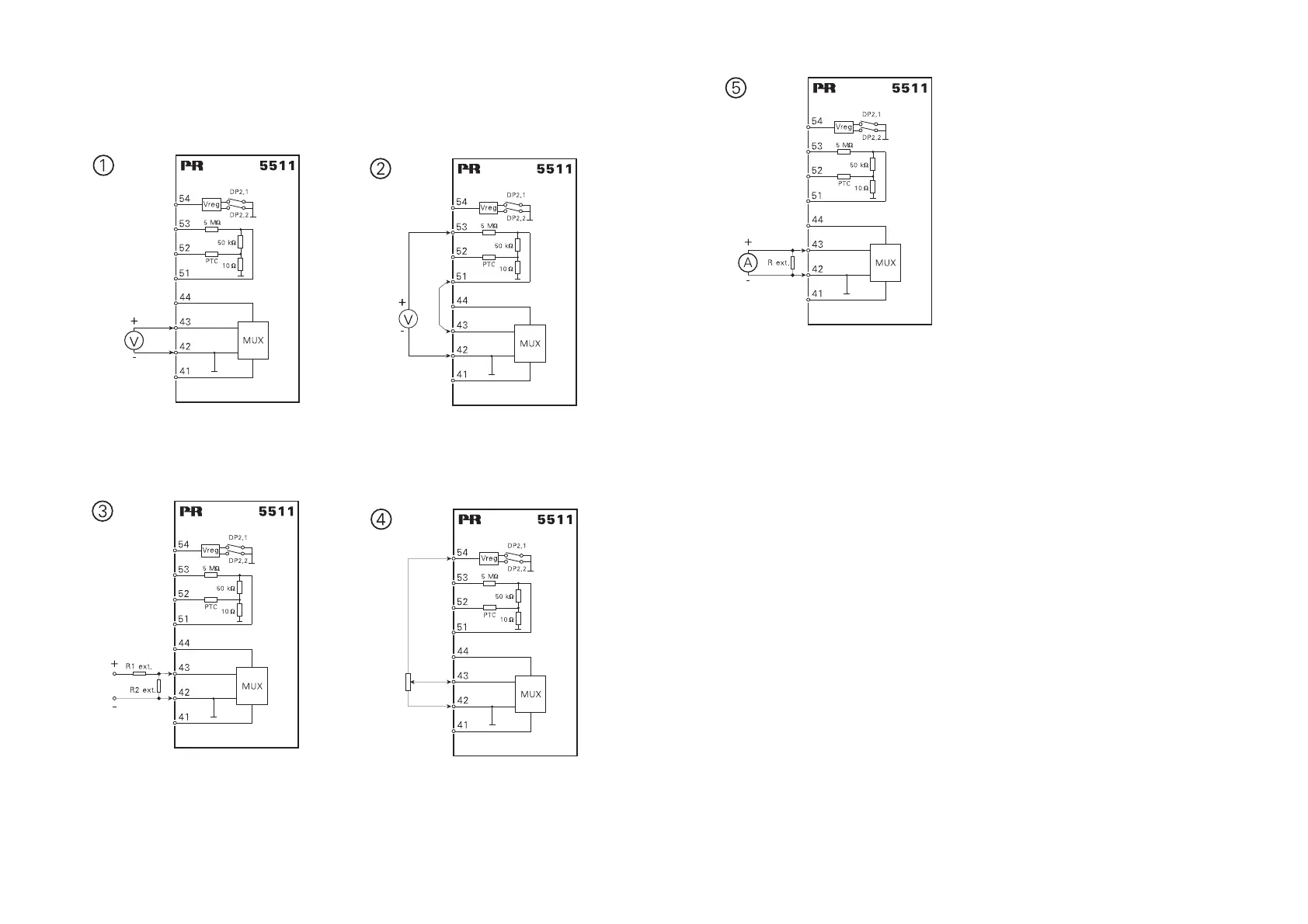

Wiring diagrams
for DC voltage input
Bipolar voltage input for
± 20 mV ≤ span ≤ ± 2400 mV.
Bipolar voltage input for
± 2400 mV ≤ span ≤ ± 240 V.
Bipolar voltage input for span > 240 V.
External voltage divider is calculated
as follows:
± 20 mV ≤ VR2 ≤ ± 2400 mV.
3-wire potentiometer input.
Aux. voltage (DP2) is set at 2.5 V ref.
Bipolar voltage input for current span
> ± 100 mA.
External shunt is calculated as follows:
± 20 mV ≤ VR
ext.
≤ ± 2400 mV.
