PR electronics 5511 User Manual

50 51
ORDER:
Type Version Output option Display option
5511
Standard version : A
No option : 1
Analogue output +
2 relays : 2
LED display : A
LCD display : B
D
A
RE 1
RE 2
24
23
22
21
12
11
32
31
DP 1
CPU
A/DPGA
MUX
10
50 k
PTC
5 M
41
42
43
44
51
52
53
54
DP2,1
DP2,2
Ω
Ω
Ω
Opto Link
5511
Vreg
↓↓
↓↓
RE 1 RE 2
relay 2
relay 2
relay 1
relay1
analogue output +
analogue output -
supply
21.6...253 VAC
/
19.2...300 VDC
supply
loop supply
2.5 Vref.
8 Vexcit.
voltage input
current input
mV output
Input -
R/RTD/TC input -
R/RTD/TC input +
mV input +
Relay outputs:
Max. voltage ................................................ 250 VRMS
Max. current ................................................ 2 A / AC
Max. AC power ........................................... 500 VA
Max. current at 24 VDC .............................. 1 A
Sensor / cable error indication:
Analogue output upscale ............................ Max. value +10%
Analogue output downscale ....................... Min. value -10%
Analogue output .......................................... Hold
Relay output ................................................ ON/OFF/Hold
Display:
Display readout ........................................... ±19999 (4½ digit)
Min. display readout .................................... 1.0
Decimal point .............................................. Programmable
Digit height .................................................. 14 mm
LED display:
Colour .......................................................... Red with variable intensity
Tendency readout for measurement
signal ........................................................... 2 green LEDs in the front
Relay ON/OFF indication ............................ 2 yellow LEDs
LCD display:
Bargraph resolution ..................................... 2.5%
Tendency readout for measurement
signal ........................................................... In display
Relay ON/OFF indication ............................ In display
GOST R approval:
VNIIM .......................................................... Cert. no. Ross DK.ME48.V01899
Observed authority requirements: Standard:
EMC 2004/108/EC
Emission and immunity ....................... EN 61326
LVD 73/23/EEC ............................................ EN 61010-1
PELV/SELV ................................................... IEC 364-4-41 and EN 60742
Of span = Of the presently selected range

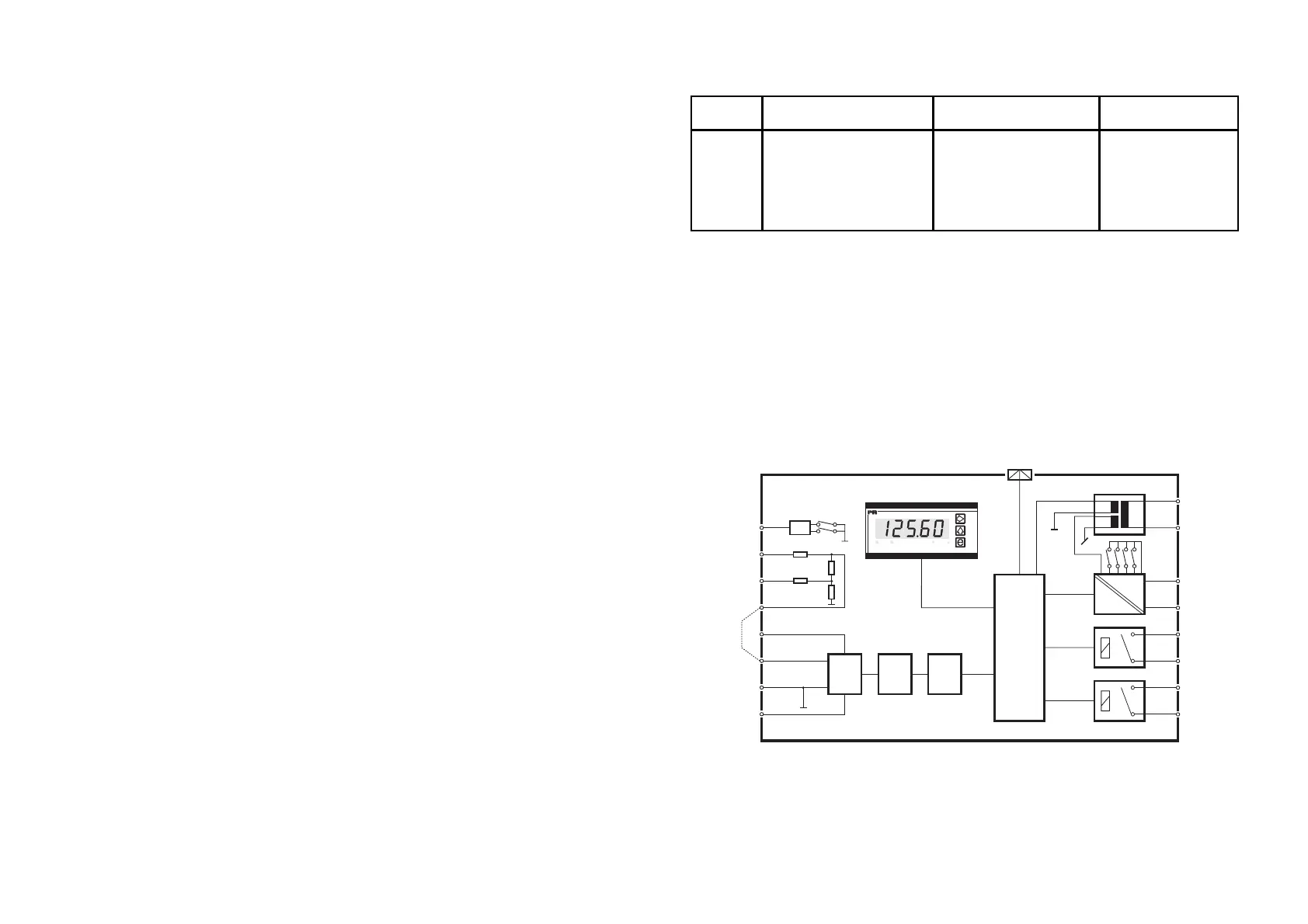

BLOCK DIAGRAM:
Note!
For TC inputs with internal CJC, remember to order the CJC connector type
5911.
Order: 5511WEIG
(special version of the 5511A2A)
