ASL PCA Replacement
About
This procedure provides instruction to replace the ASL
1
PCA
2
board.

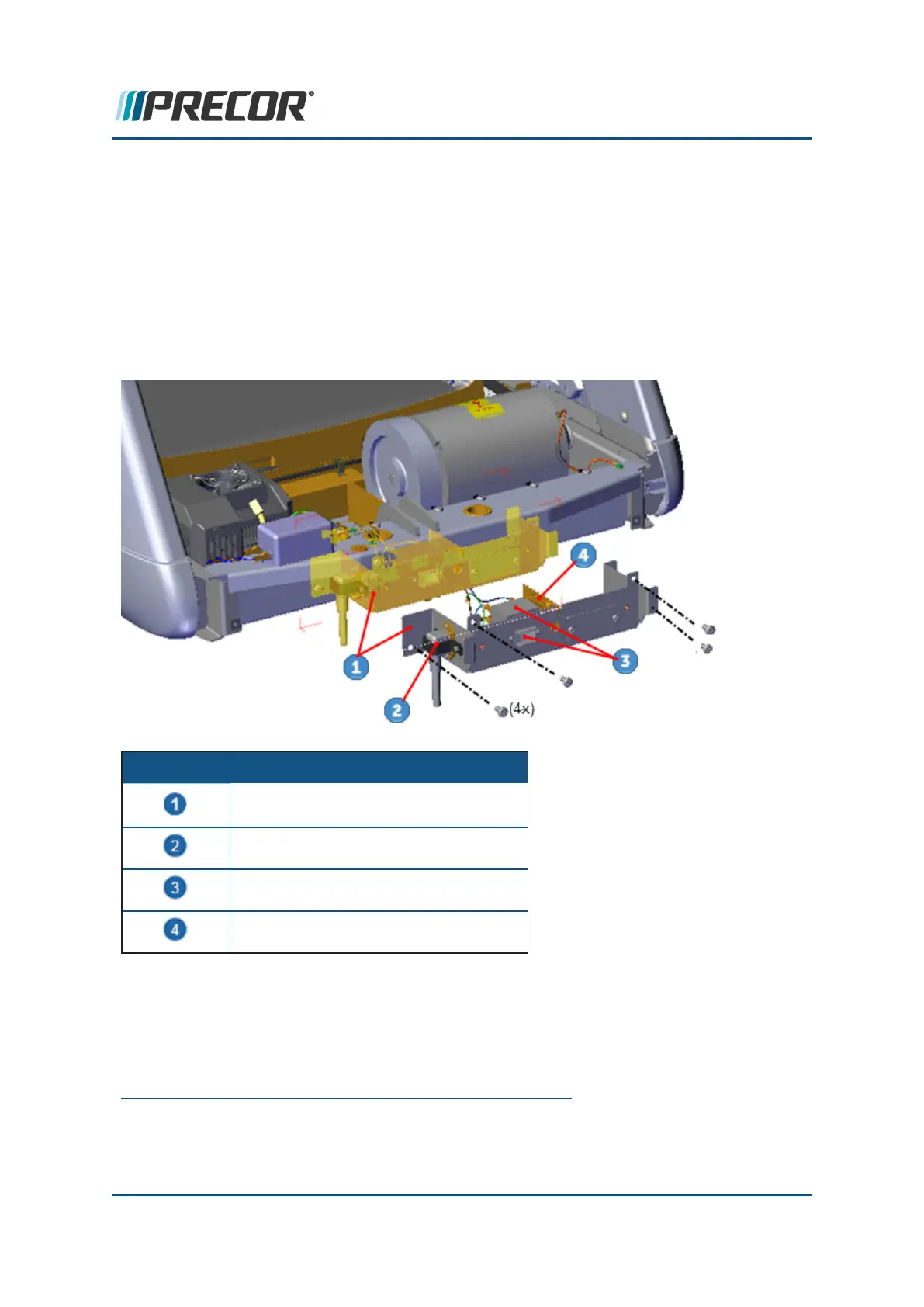

The Power Entry Assembly located in the front of the treadmill under the frame weldment
cross member contains the Power Cord Inlet Assembly, the ON/OFF SW Circuit Breaker,
and the ASLPCA board. The Power Entry Assembly Bracket must be removed to access
these components.
ID Description
Power Entry Assembly Bracket
Power Cord Inlet Assy
ON/OFF SW Circuit Breaker
ASL PCA Board
Wire Diagram
Power Entry Assembly wire diagram.
1
Active Status Light: Service and maintenance status light.
2
Printed circuit assembly, generally referred to as either an upper PCA or lower PCA.
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 117
