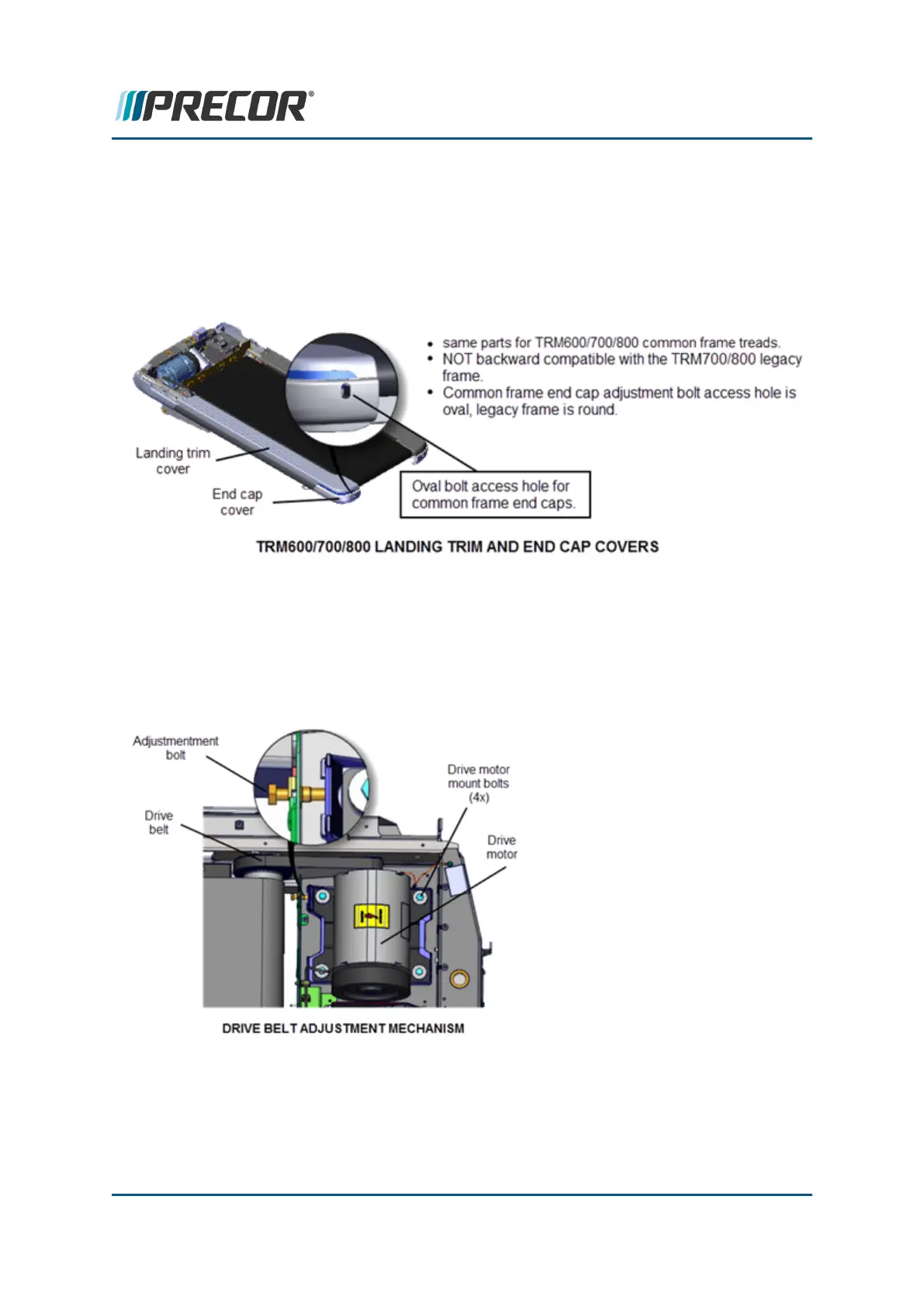

Landing Trim End Cap Covers
All three TRM600/700/800 series treadmills use the same common frame landing trim and
end cap covers. However, on the TRM700/800 series, the common frame covers are not
backward compatible with the legacy frame covers. The end cap covers can be used to visu-
ally identify a common frame machine. On common frame machines the shape of the belt
tension adjustment bolt access hole is oval and on legacy frames round.
Drive Belt Tension Adjustment
The new common frame has improved the drive belt adjustment process by adding a drive
belt adjustment bolt mechanism. The new procedure is faster, easier, and less prone to
error. Loosen the four motor mount bolts, use the belt tension adjustment bolt to tension the
belt and then re-tighten the motor mount bolts securing the belt tension and motor.
Dust Guard
The common frame dust guard was redesigned (trimmed back on the left side) so that the
drive belt can be easily removed. On the legacy frame, the top of the dust guard extends to
