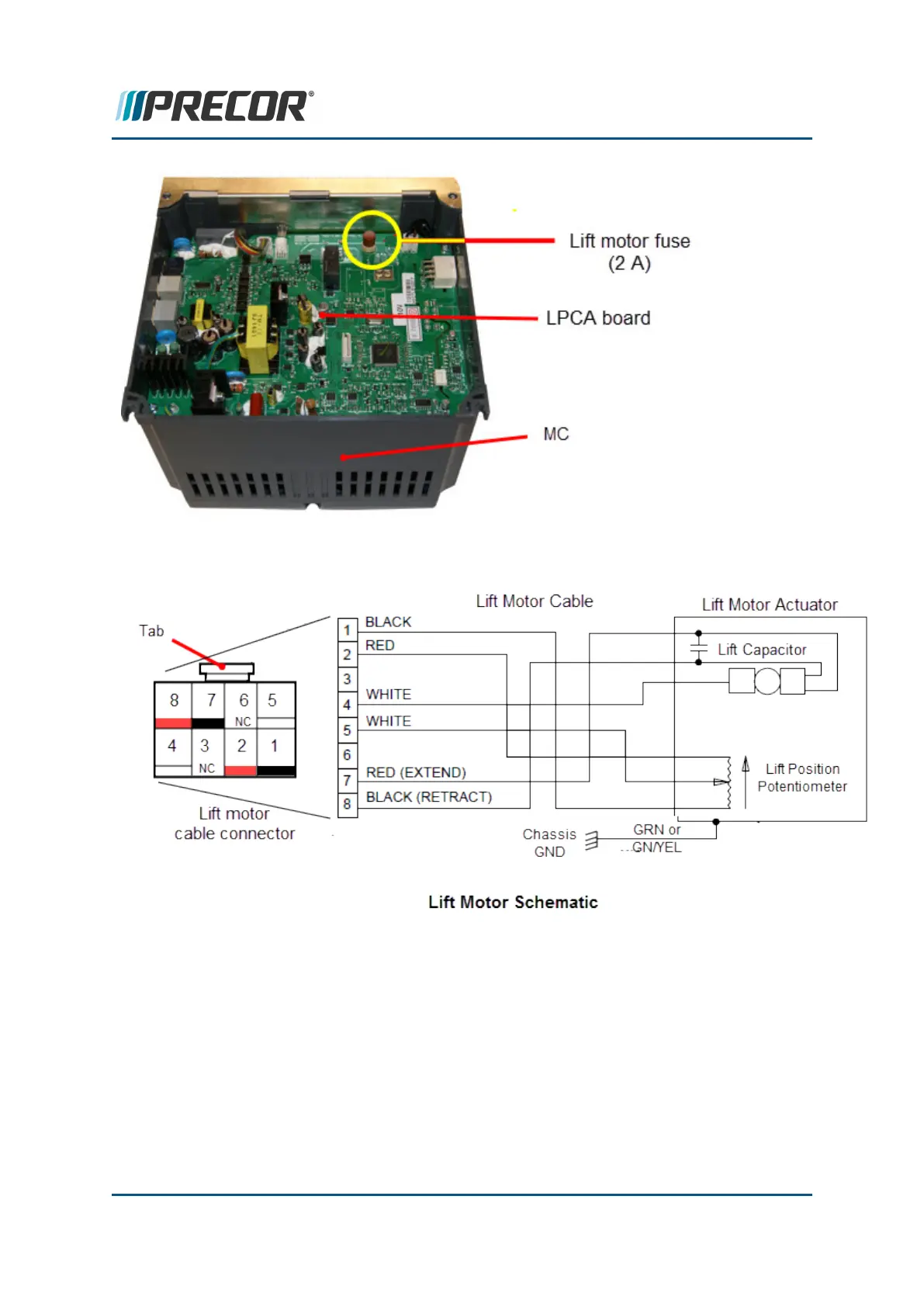

Lift motor cable schematic
Procedure
Removal Instructions
Review entire procedure before starting.
1. Remove the hood cover, see "Hood Cover Replacement" on page88.
2. Prepare the treadmill for service. To provide access to the lift extension tube removal,
raise and block the front of the treadmill per the Front Access instructions, see "Front
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 202
6 Replacement Procedures
Lift Motor Replacement
