Lift Motor Calibration
About
This procedure provides instruction to verify and calibrate the Lift Motor and Incline system.
The Lift Motor calibration should be verified any time the lift motor is replaced, the lift motor
fuse fails, or any incline system component is replaced.
Specifications
System Component Specification

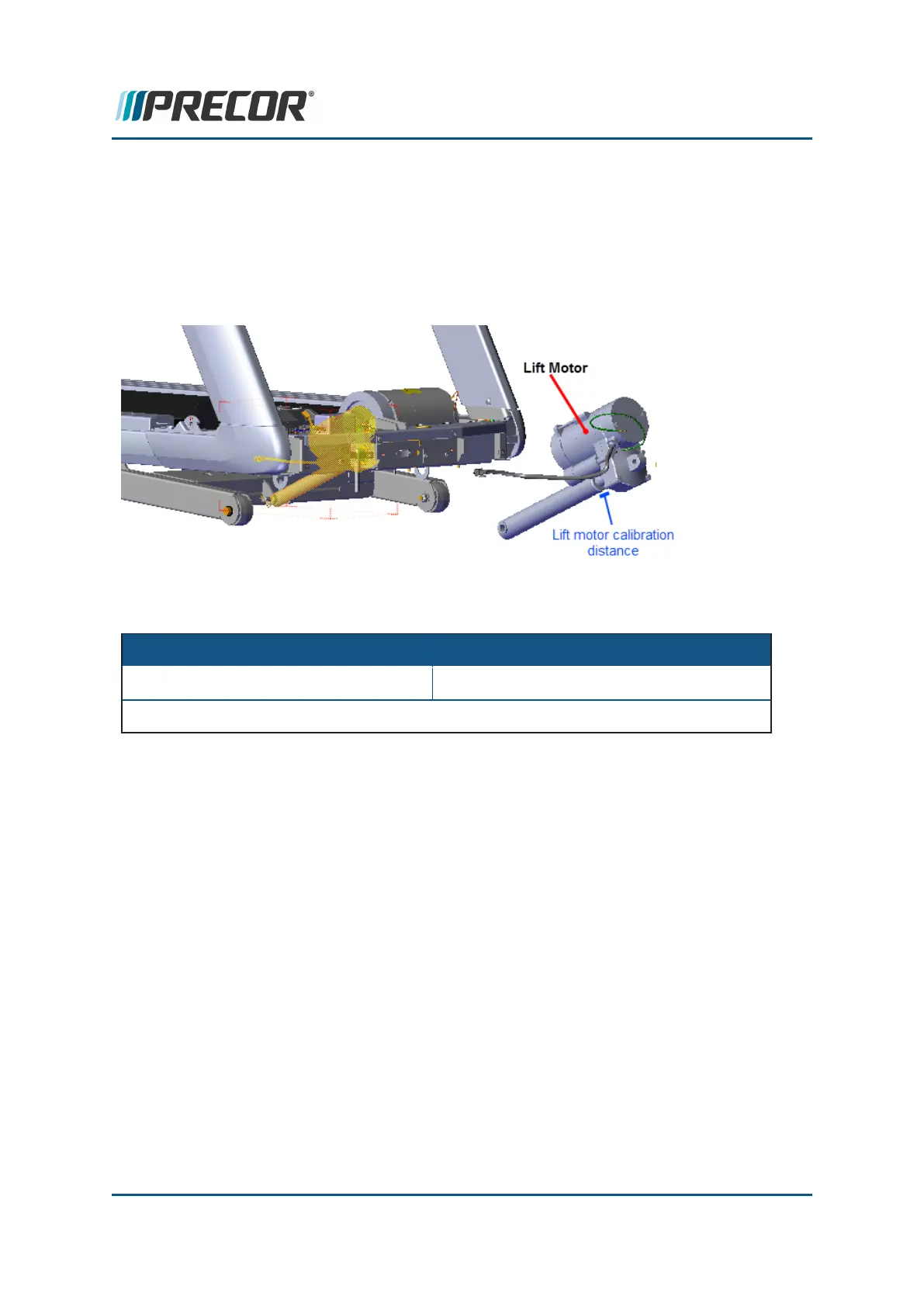

Lift Motor Calibration Distance* 1 1/8 in - 1 3/16 in (2.8 cm - 3.0 cm)
Note: * Calibration distance is specified at incline level 0.
Procedure
Review entire procedure before starting.
1. Remove the Hood cover, see "Hood Cover Replacement" on page88.
2. Prepare the treadmill for service. Choose one of two methods to access the lift exten-
sion tube and jackscrew components: 1) front access (by raising and blocking the
frame) or side access (by laying the treadmill on its side). Review each method and
use the method that best fits your particular circumstances.
a. "Front access" on page80 (recommended)
b. "Side access" on page82.
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
