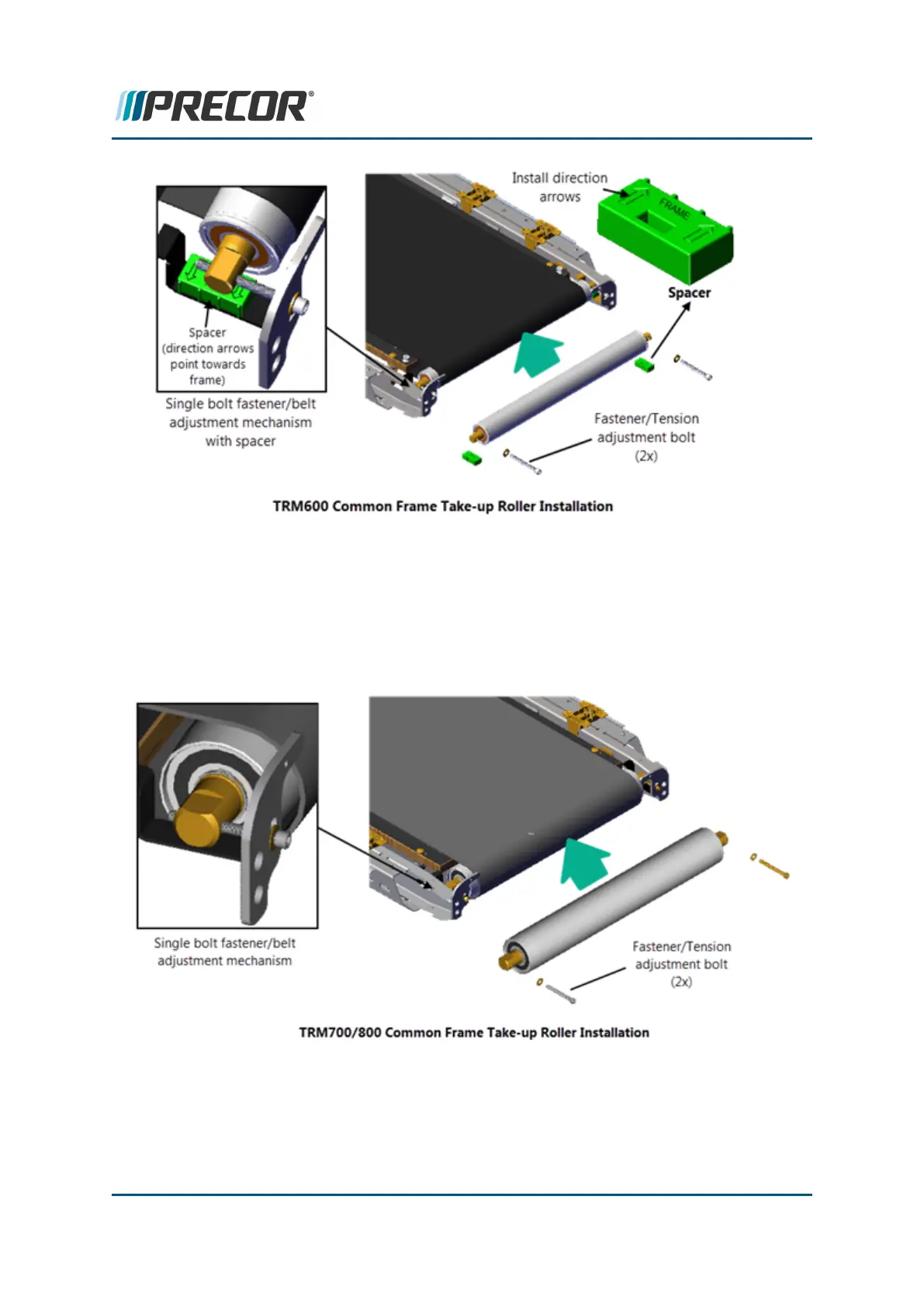

TRM700/800 Take-up Roller Installation
The TRM700/800 common frame take-up roller installation and belt adjustment mechanism
has changed from the legacy frame cassette style mechanism to the single bolt fasten-
er/belt tension adjustment mechanism. On the common frame, the running belt tension
adjustment bolt is both the take-up roller fastener and the belt tensioner. The downward
force from the belt tension holds the roller in place.
Common Frame Running Deck
TRM600 Running Deck
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 290
9 Theory of Operation
TRM600/700/800 Common Frame Overview
