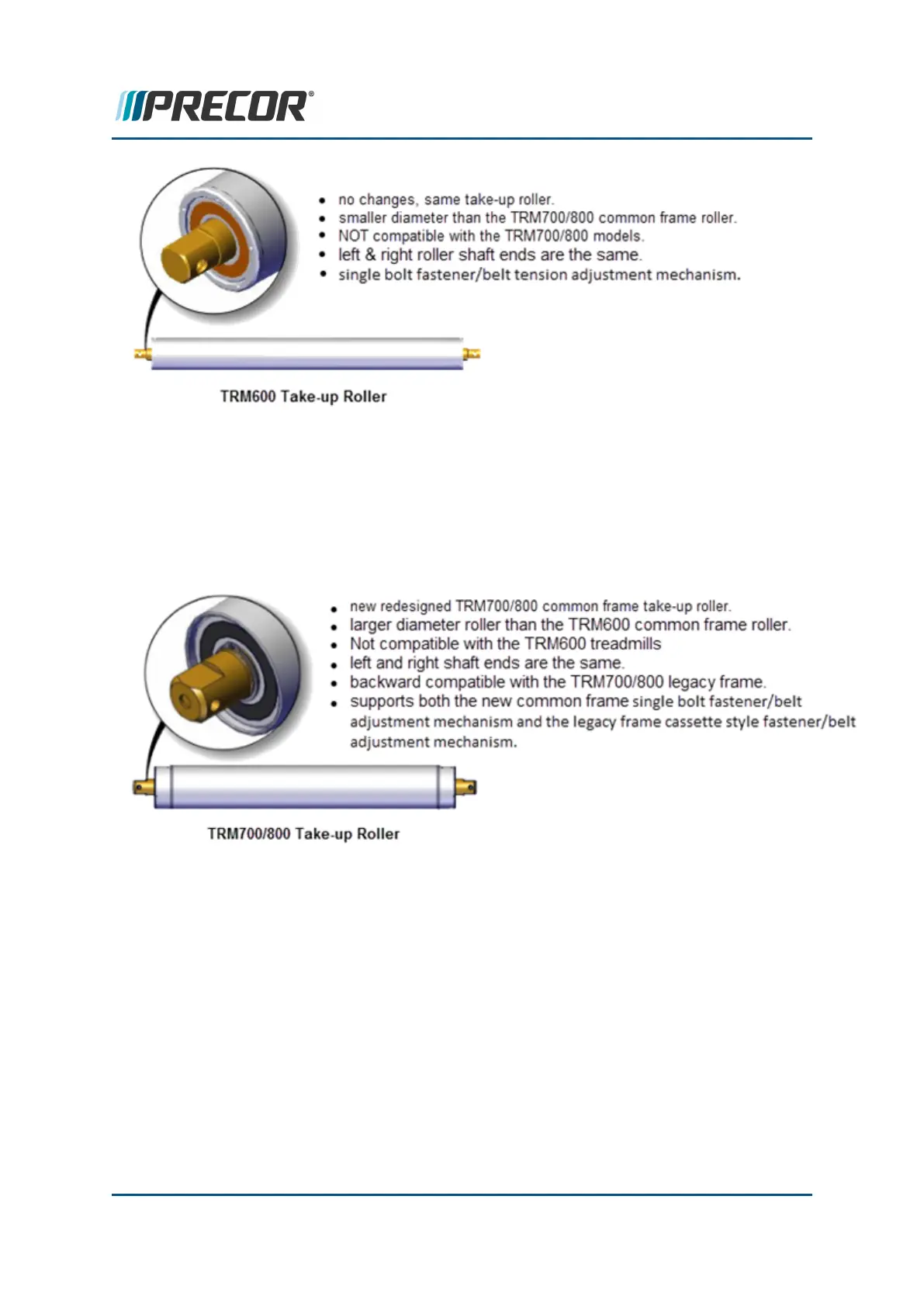

TRM700/TRM800 Take-up Roller
There is a new redesigned take-up roller for the TRM700/TRM800 common frame. It is a
multi-use roller designed to work with the new common frame single bolt fastener/belt ten-
sion adjustment mechanism and the legacy frame cassette style belt tension adjustment
mechanism. The legacy frame take-up roller part is no longer available, so the common
frame roller is now the replacement part for the legacy frame take-up roller.
TRM600 Take-up Roller Installation
The TRM600 common frame take-up roller installation is slightly different than the
TRM700/800 because the TRM600 take-up roller is a smaller diameter roller. A spacer is
required to raise the roller to the correct mounting height. Other than that, there is no dif-
ference between the TRM600 and TRM700/800 installation and belt adjustment procedure.
All common frame treadmills use the single bolt fastener/belt tension adjustment mech-
anism.
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 289
