model treadmills which use the tension adjustment bolt to both secure and adjust the belt
tension.
Procedure
Review the entire procedure before starting.
Removal
Removal
Review entire procedure before starting.
1. Switch the power OFF and unplug
1
the power cord.
2. Remove the hood cover, see "Covers and Panels Replacement" on page86, and
left/right Landing Trim covers, see "Covers and Panels Replacement" on page86.
3. Slowly relax the running belt tension using a 5/16" hex key driver and ratchet (only
use hand tools and not power tools). Alternately loosen the left and right tension
adjustment bolts in 1/4 turn increments so that the running belt tension is evenly
relaxed. Continue until all tension is removed.

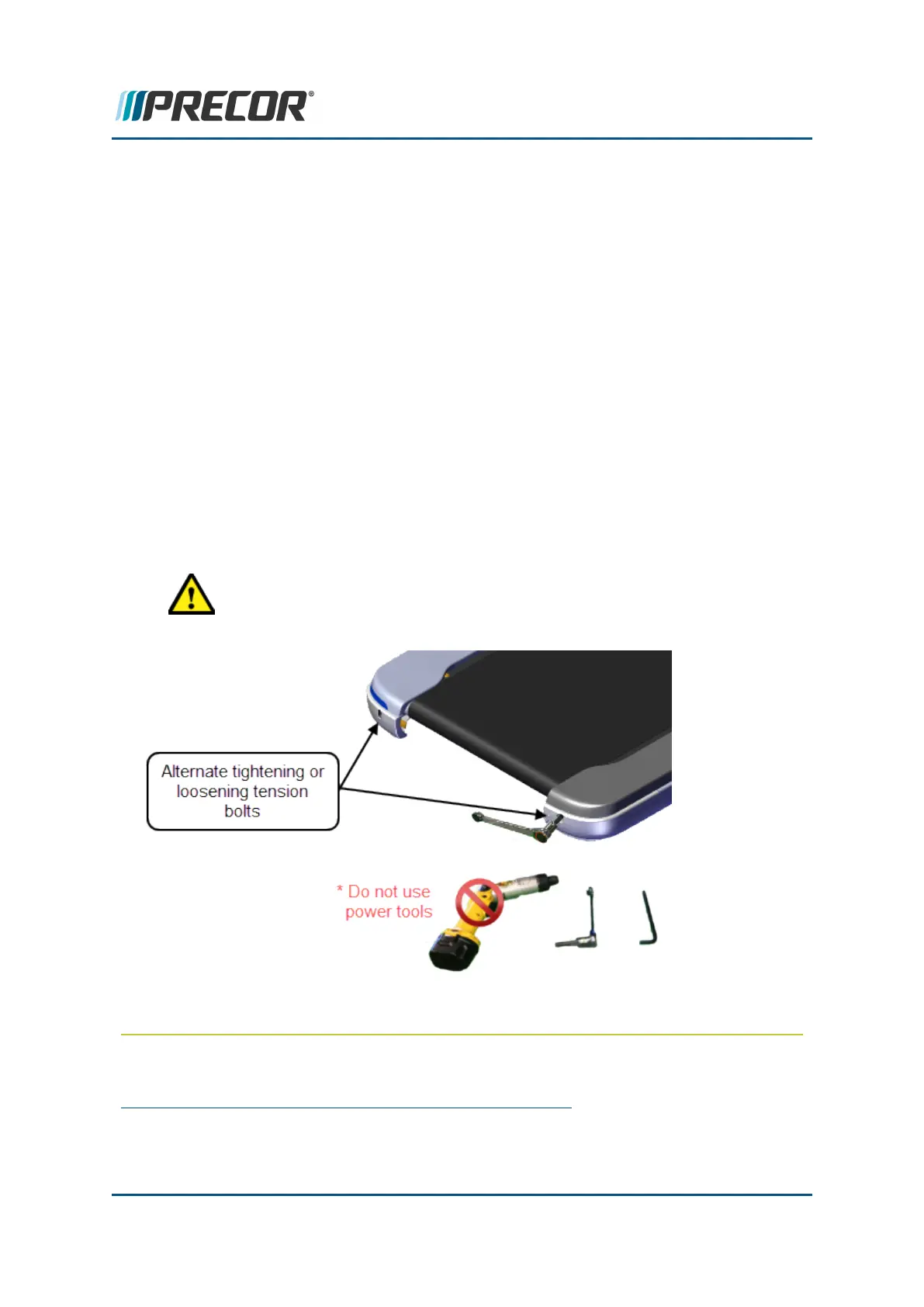

CAUTION:Only use hand tools to adjust tension. Power tools can easily over
and/or under tension causing damage to the belt and/or tension hardware
mechanism.
4. Use a pen or tape to mark the left and right ends of the roller prior to removal. The
roller must be reinstalled with the same left/right orientation.
1
Disconnect a device power cord plug or cable connector from the power receptacle or out-
let.
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 179
6 Replacement Procedures
Take-up Roller Replacement
To Next Page
