function was detected.
l Because only one status color and state can be shown at a time, the condition states
are prioritized as follows from lowest to highest: Blue Solid (lowest), Blue Pulsing, Yel-
low Solid, Yellow Pulsing (highest). Higher priority states are always shown before a
lower priority state, until cleared.
l The console UPCA
1
determines the ASL state using inputs from the error log and
maintenance counter. During active operation (workout in progress) or during the
pause state, the console transmits the ASL state to the lower control board (LPCA
2
).
l Only direct error code and maintenance counter data is used to determine the current
machine ASL state. No special algorithms (e.g., user behavior) are utilized to determ-
ine the status.
l Error code operation: A logged system error code will cause the ASL to begin pulsing
yellow. If the error self-corrects, the ASL will change from pulsing to solid yellow.
Depending on the error code type, after the end of a workout, the solid yellow light will
either revert back to a steady or pulsing blue, or it might require manually resetting the
light from the service menu.
l Maintenance counter operation: The counter starts at 1000 miles and counts down
the miles of active use to 0 miles. When the counter reaches zero, the ASL will begin
pulsing blue indicating preventative maintenance is due.

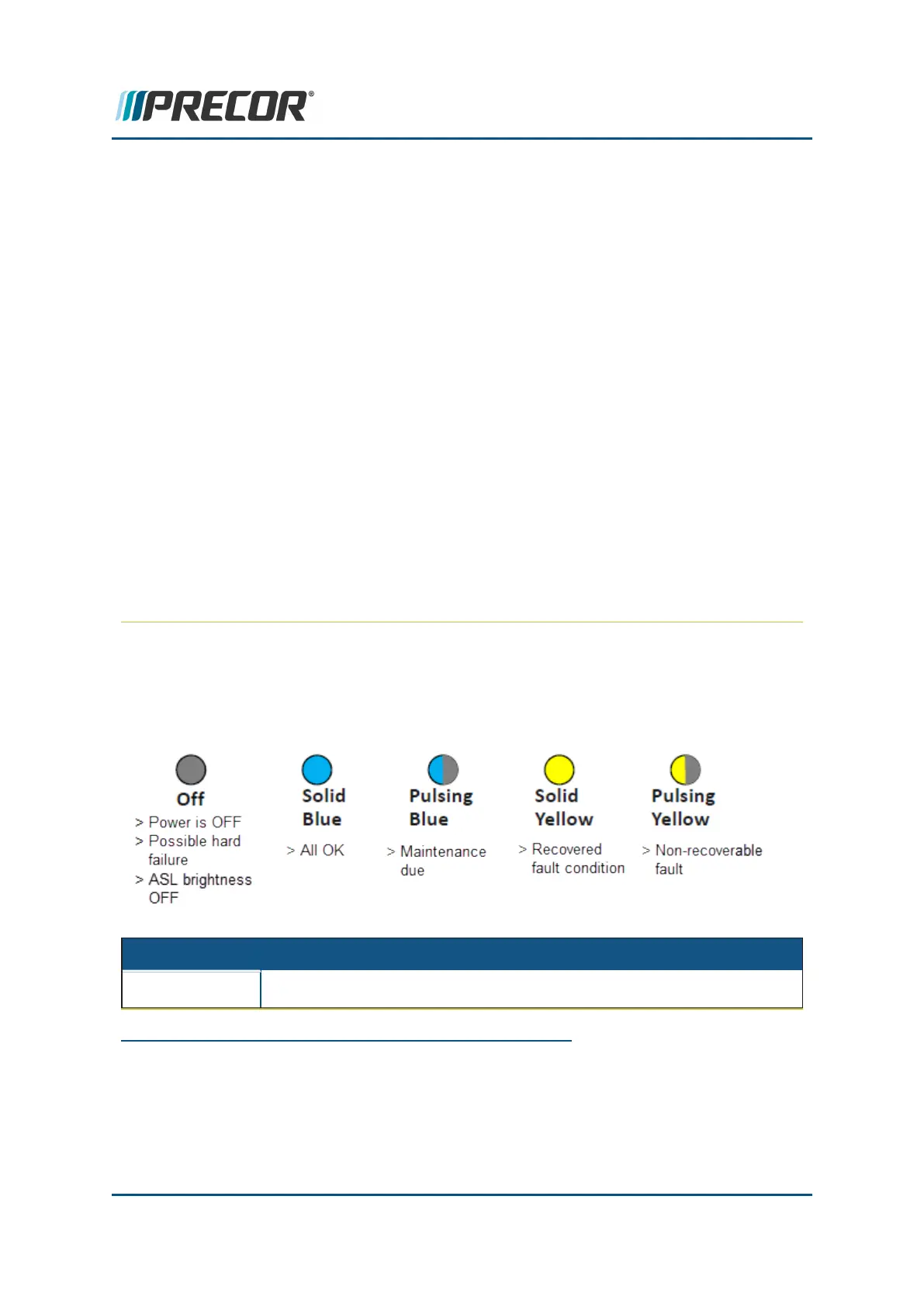

ASL States
The ASL utilizes a combination of blue and yellow lights to indicate the current operational
machine status.
ASL State DESCRIPTION
OFF The unit is powered OFF or there is no power to the LPCA or some
1
Upper PCA board
2
Lower Printed Circuit Assembly board; also refered to as the Lower PCA or simply as the
lower board. On treadmills, it is the console to base function interface and the motor con-
troller unit (MCU). On self-powered units, it is the lower PCA console to base function inter-
face.
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
