1. Switch the power OFF and unplug the power cord.
2. Remove the hood cover, see "Covers and Panels Replacement" on page86, and
left/right Trim Landing covers, see "Covers and Panels Replacement" on page86.
3. Remove the Take-up Roller, see "Take-up Roller Replacement" on page178.
4. Remove the Drive Roller, see "Drive Roller Replacement" on page168.
5. Remove the left/right rear deck fastener hardware:
a. Remove the left/right #3 Phillips rear deck fasteners (4x) and washers (4x).
These fasteners attach to the left and right rear deck pivot assemblies. The 1/2"
fastener nuts are press fit into the bottom of the deck pivot housing, be aware
that the nuts can fall from the housing as the bolts are being removed. If this
happens, reinsert the nut into the pivot housing. Retain part(s) and/or fastener
(s) for installation.
b. If the deck is being flipped or replaced, use a plastic putty knife sharp edge to
pry up and remove the pine tree clips (2x). Alternatively you can pop the pine
tree clips from the back side after the deck is removed. Retain part(s) and/or
fastener(s) for installation.
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 195
6 Replacement Procedures

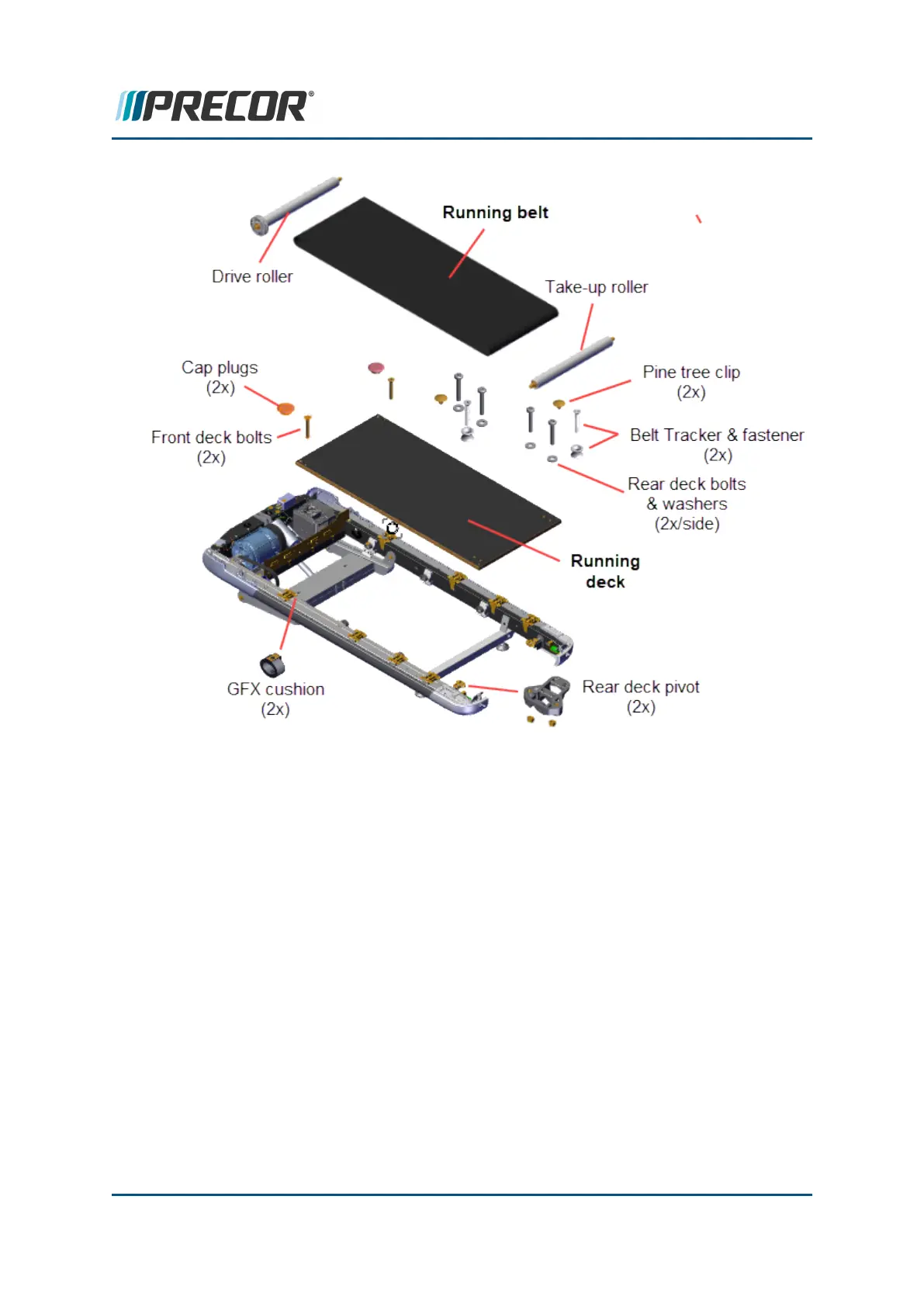

Running Belt and Deck Replacement Procedure
