TIP: Avoid applying downward pressure on the bolts while removing. Pressing
down on the bolts can push the nuts out of the pivot housing .reinstall the nut into
the pivot housing if this occurs.

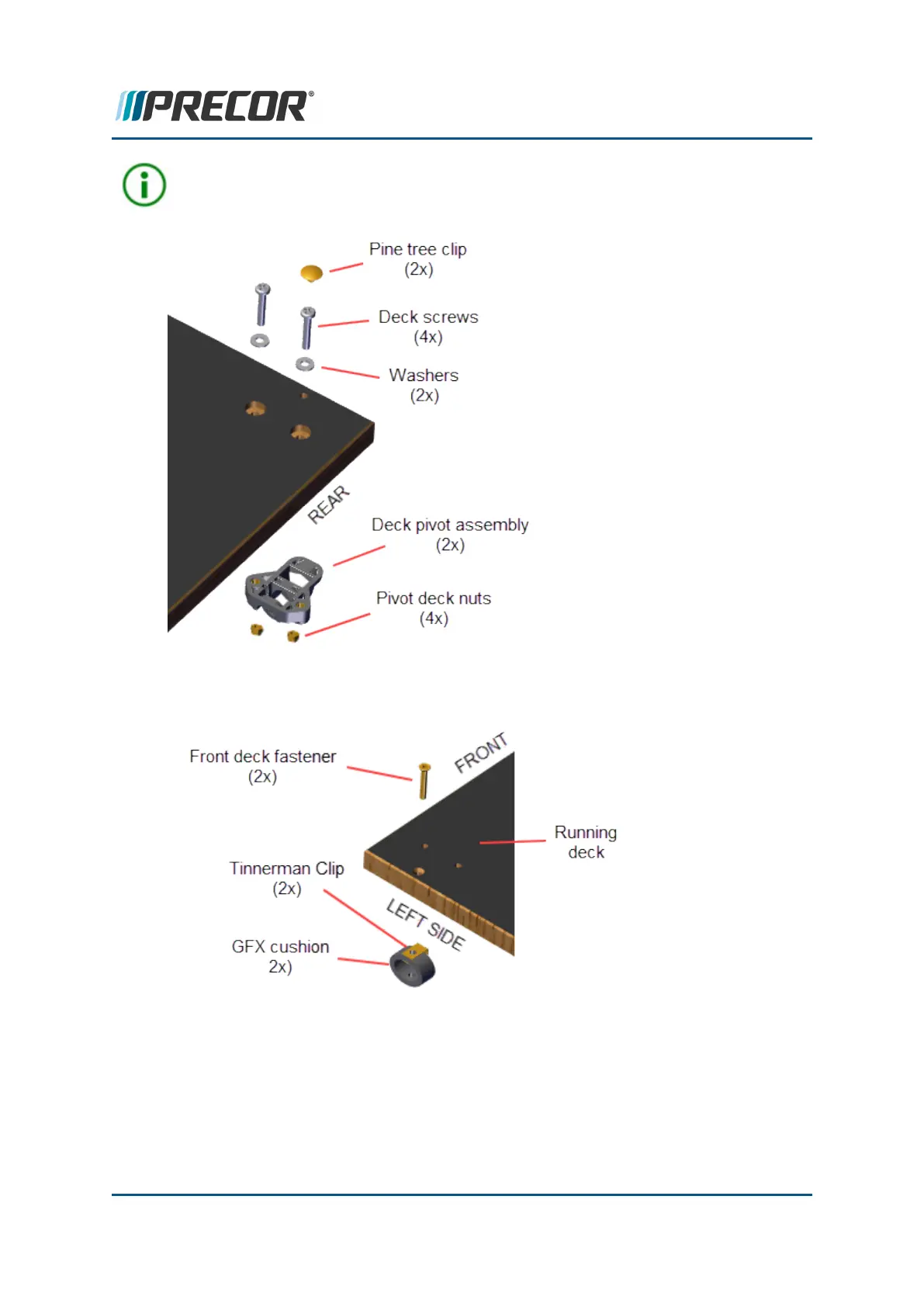

6. Remove the left and right #3 Phillips front deck screws. These screws are attached to
the front GFX Cushion Tinnerman clips. Retain fastener hardware for installation.
7. Carefully lift the deck and belt out of the treadmill frame.
8. Remove the running belt from the deck.
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 196
6 Replacement Procedures
Running Belt and Deck Replacement Procedure
