Removal Instructions
1. Switch the power OFF and unplug
1
the power cord.
2. Remove the hood cover, see "Covers and Panels Replacement" on page86.
3. Remove the left and right trim landing covers, see "Trim Landing Covers Replace-
ment" on page91.

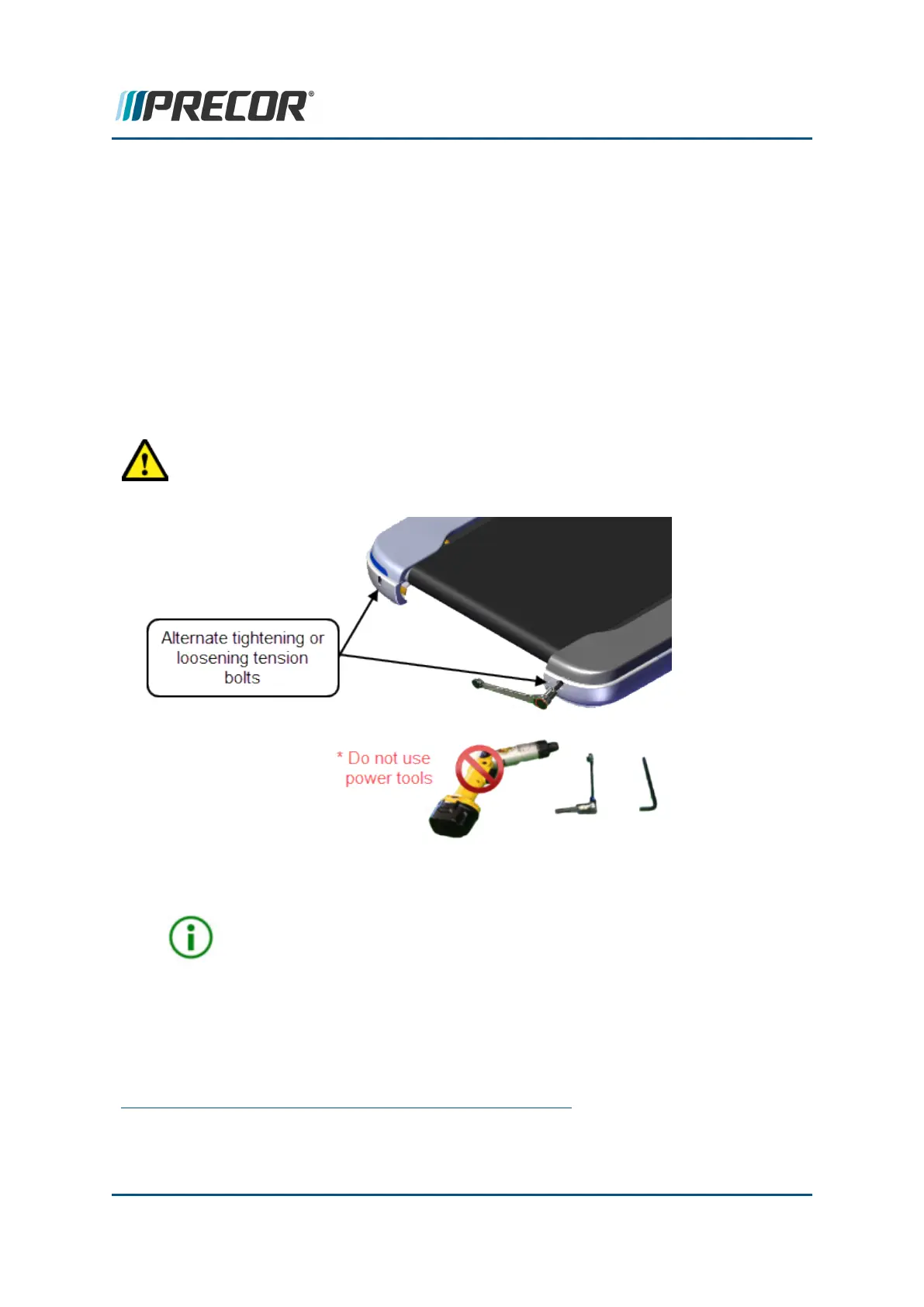

4. Use a 5/16" hex key socket and ratchet to relax the running belt tension by alternately
loosening the left and right belt tension adjustment bolts in 1/4 turn increments until
the tension is fully removed. Use this method to evenly remove the left and right belt
tension. Do not use power tools which can make it difficult to control the left/right 1/4
turn incremental bolt loosening requirement. Uneven belt tension removal can cause
damage to the running belt or tension adjustment hardware.
CAUTION:Only use hand tools to adjust tension. Power tools can easily over
and/or under tension causing damage to the belt and/or tension hardware mech-
anism.
5. Walk the Drive Belt off the Drive Roller pulley and then the Drive Motor pulley. Tem-
porarily place the Drive Belt on the inside of the Drive Roller pulley.
TIP: Use (turn) the Drive Motor flywheel to make it easier to turn the motor pul-
ley and help walk the belt onto or off the Drive Motor and Drive Roller pulleys.
1
Disconnect a device power cord plug or cable connector from the power receptacle or out-
let.
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 143
6 Replacement Procedures
Drive Belt Replacement
