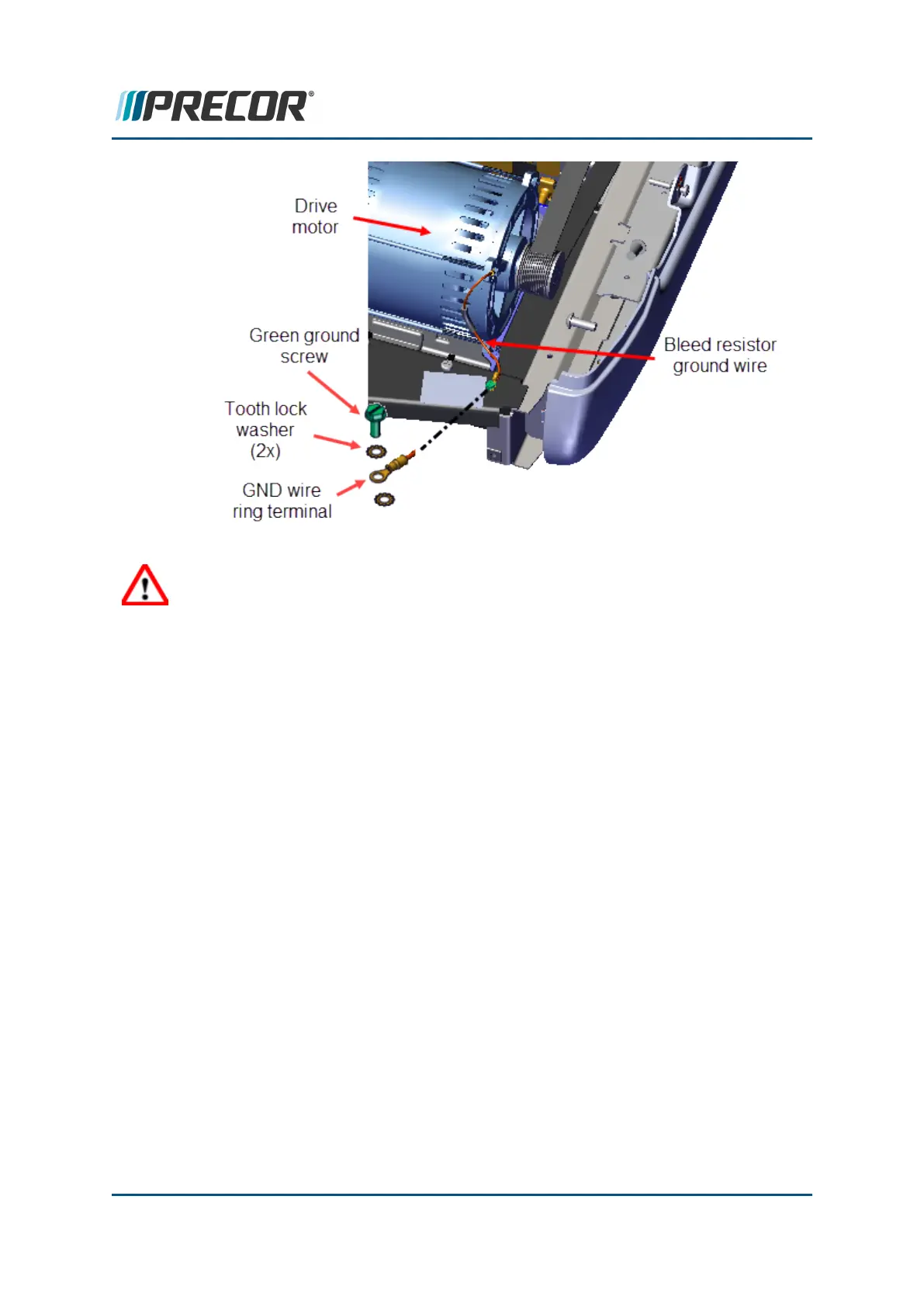

WARNING:Static electric shock hazard. Make sure the motor static bleed resistor
ground wire is securely connected to the frame. When the ground wire is not con-
nected, touching the motor housing could cause static charge electrical shock
and personal injury.
2. Reconnect the Motor Controller "MTH" (front side) and "MOTOR" (rear side) cables,
see Motor Controller (MC) Replacement. Slightly lift the MC to make it easier to recon-
nect the cables to the MC I/O ports. Make sure the cable connectors have the correct
orientation and alignment before inserting into the MC I/O port.
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 165
6 Replacement Procedures
Drive Motor Replacement
