TIP: Remove the MC fasteners so that the MC module can be raised to allow easy
access to disconnect and connect the I/O
1
connectors.

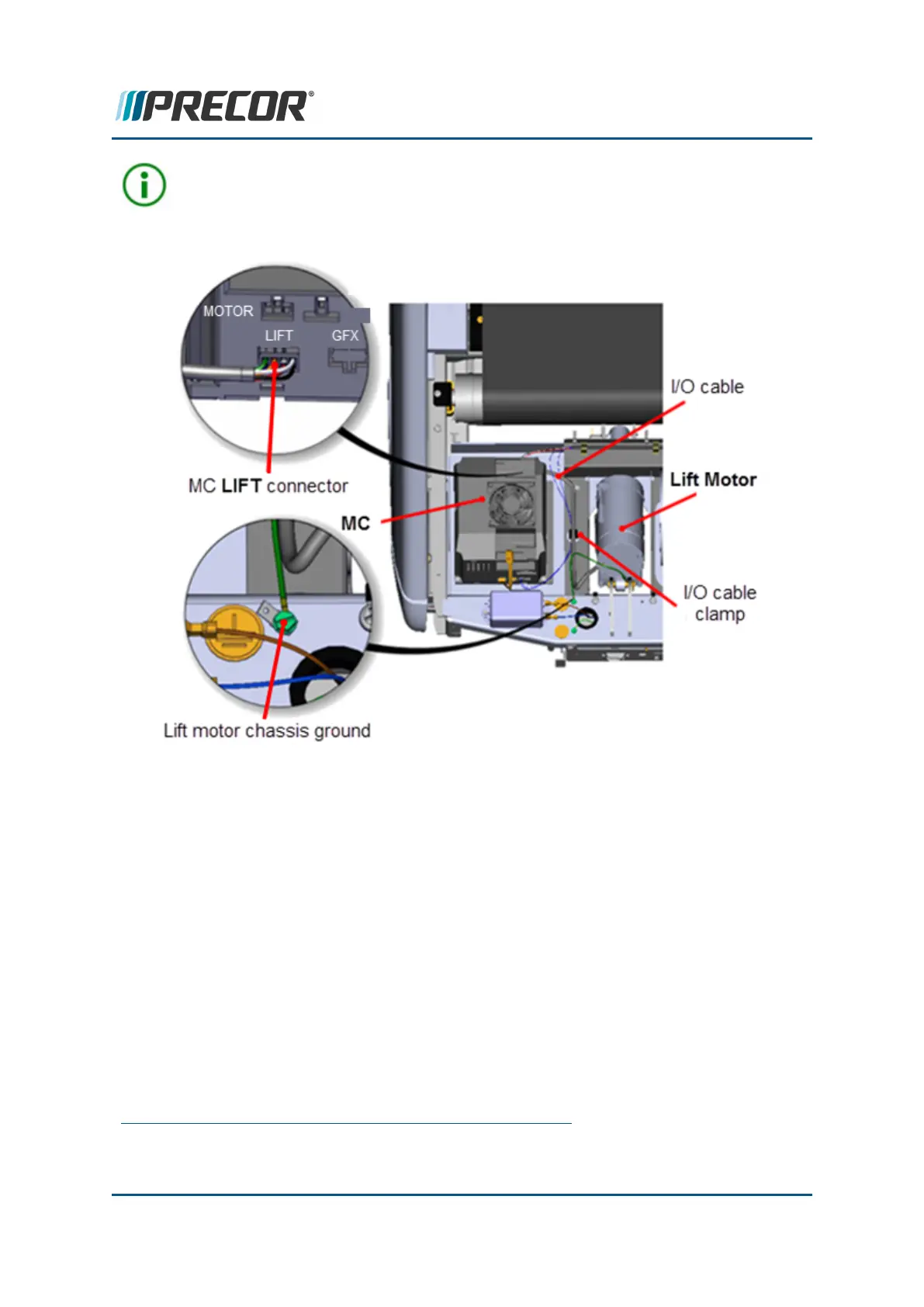

5. Remove the lift motor ground wire (GRN or GRN/YEL) from the frame chassis ground
screw fastener.
6. Remove the extension tube hitch pin and clevis pin fastener hardware from the lift plat-
form mounting bracket. Hold the lift platform while removing the clevis pin and care-
fully rest on the floor.
1
Input and Output Interface.
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 204
6 Replacement Procedures
Lift Motor Replacement
