VEHICLE EXTERIOR
ENGINE COMPARTMENT COMPONENTS

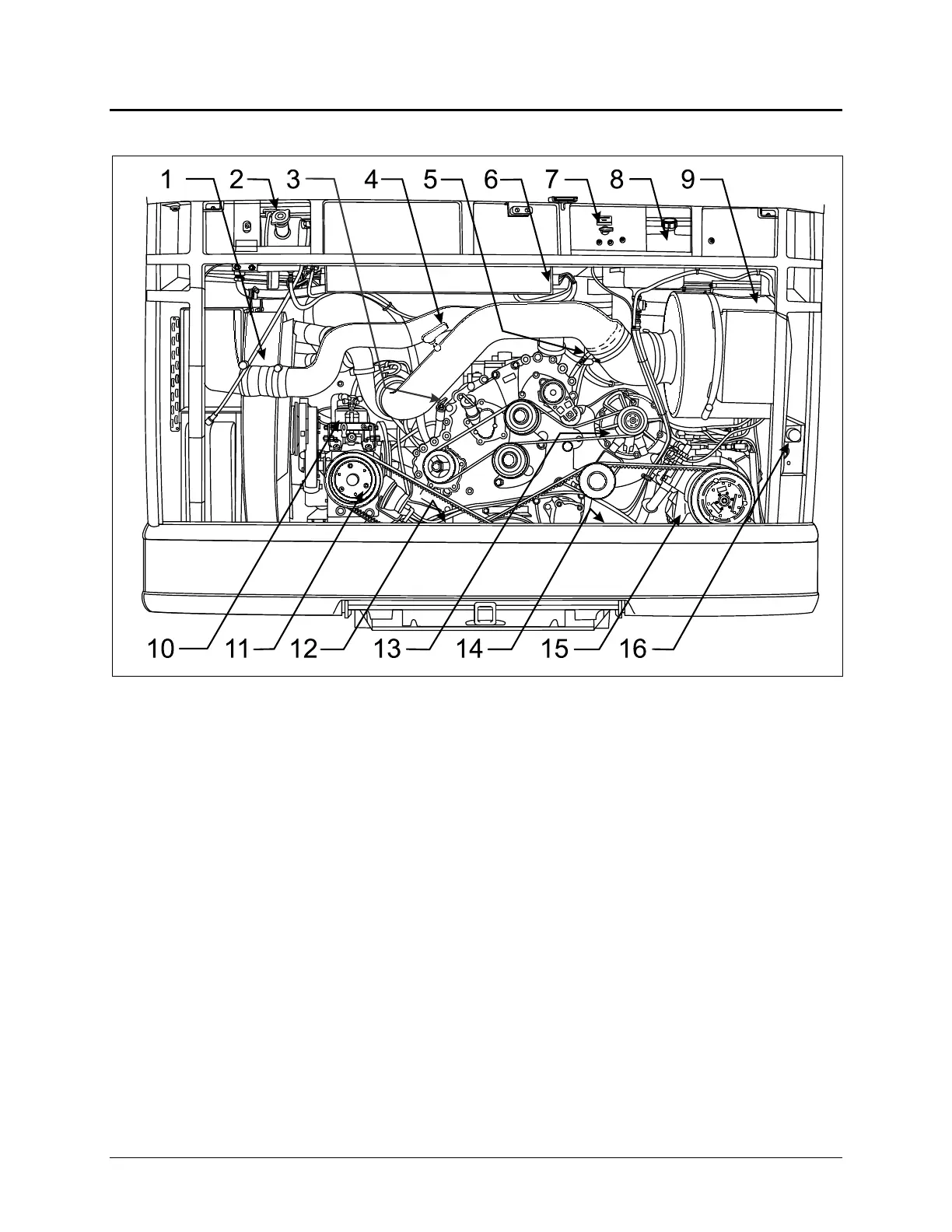

ENGINE COMPARTMENT 01071
1. Radiator;
2. Coolant fluid surge tank;
3. Transmission oil dipstick;
4. Air filter restriction indicator;
5. Engine oil dipstick;
6. Starter selector switch and
Engine rear start push-button switch;
7. Belt tensioner control valve;
8. Engine oil reserve tank;
9. Air filter;
10. Auxiliary A/C compressor (optional);
11. Radiator fan gearbox;
12. Engine coolant filter/conditioner and
Engine oil filters;
13. Alternator;
14. Primary and secondary fuel filters;
15. Main A/C compressor;
16. 110 – 120 volt connector;
