CONTROLS AND INSTRUMENTS

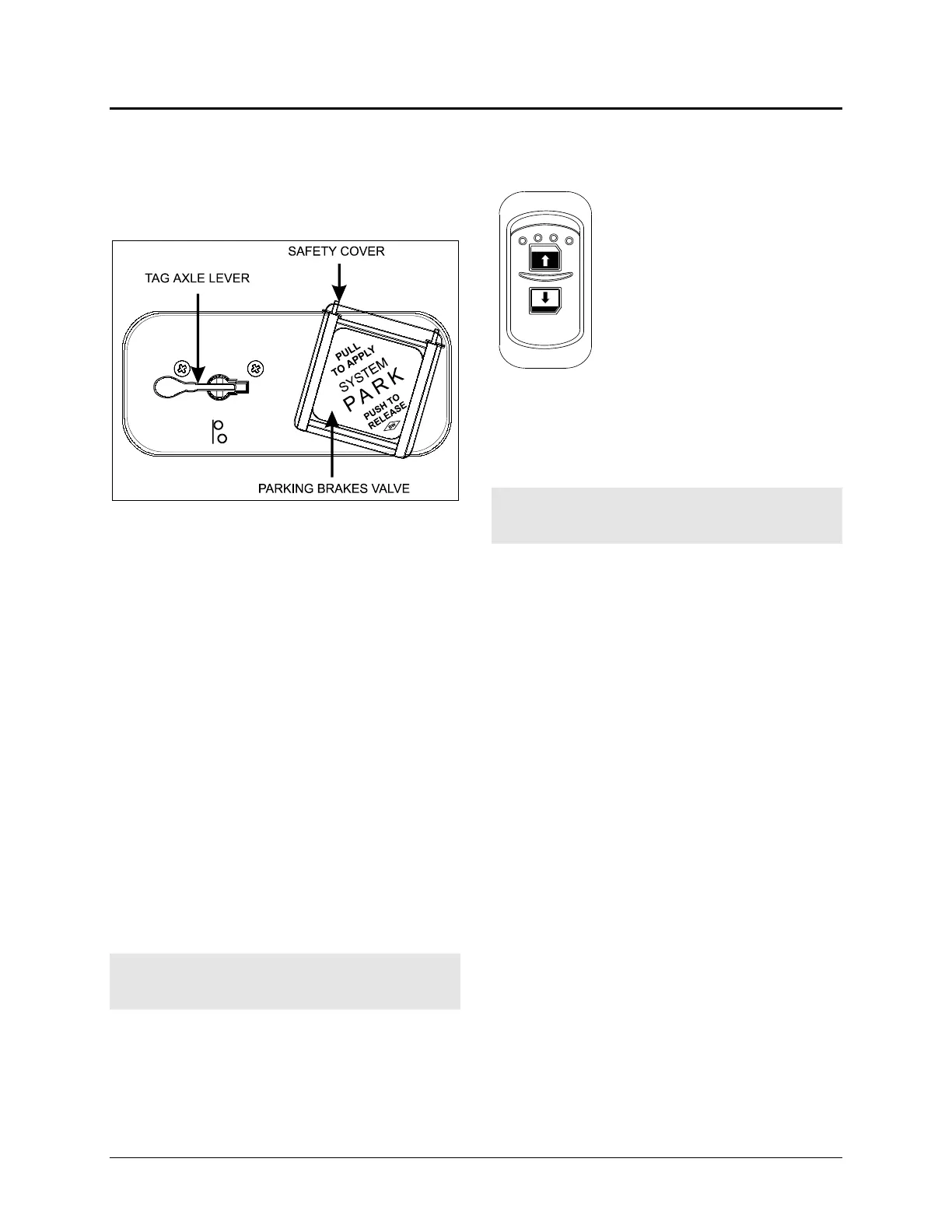

TAG AXLE CONTROL VALVE (8)
Unload (or lift) the tag axle by pushing the lever
forward. Pulling the lever back will load (or lower)
the tag axle. Refer to "Other Features" in chapter
4 for additional information.
CONTROL VALVES 12129
COOLANT HEATER TIMER (9)
Use to program the start time of the optional
engine coolant heater. Refer to chapter 4 "Other
Features" for additional information.
12-VOLT DC POWER OUTLET (10)
This socket can be used to power small 12 volt
DC appliances such as a cellular phone or a
vacuum cleaner. The maximum power
consumption allowed for appliances plugged in
this socket is 130 watts. Make sure appliances
are equipped with suitable plugs that will not
damage the socket.
ACCESSORY POCKET (11)
If no astray is installed, the space becomes an
accessory pocket.
To open the ashtray, push slightly on the cover’s
side. The ashtray can be removed for cleaning by
pulling it out.
Warning: To prevent a fire, never put paper or
plastic wrappers in the ashtray. Empty ashtray
often.
BLANK (12)
POWER WINDOW SWITCH (13)
06338
Use the rocker switch to open or
close the driver’s power window.
The switch for the power window
in the entrance door is on the
R.H. dashboard panel.
ASHTRAY (14)
To open the ashtray, push slightly on the cover’s
side. The ashtray can be removed for cleaning by
pulling it out.
Warning: To prevent a fire, never put paper or
plastic wrappers in the ashtray. Empty ashtray
often.
CIGARETTE LIGHTER (15)
Push lighter in to activate. When ready to use, it
will spring out automatically. Replace lighter in
non-activated position. The cigarette lighter
socket can be used to power 12-volt appliances
(e.g. flashlight, vacuum cleaner). The maximum
power consumption allowed for appliances
plugged in this socket is 130 watts. Make sure
the appliances are equipped with suitable plugs
that will not damage the socket.
Note: The cigarette lighter can still be used after
the ignition key has been removed.
Diagnostic Data Reader (DDR) Receptacle
To facilitate troubleshooting of the DDEC, WT and
ABS systems and to obtain data logged in the
ECM (Electronic Control Module) memory, a
Diagnostic Data Reader (DDR) (not supplied) can
be connected through the DDR receptacle. A
user's manual is supplied with the optional DDR.
The DDR receptacle is located inside the footwell,
on the upper left side wall.
