VEHICLE EXTERIOR
A/C CONDENSER DOOR
Pull the release latch located inside the adjacent
baggage compartment to open the condenser
door.

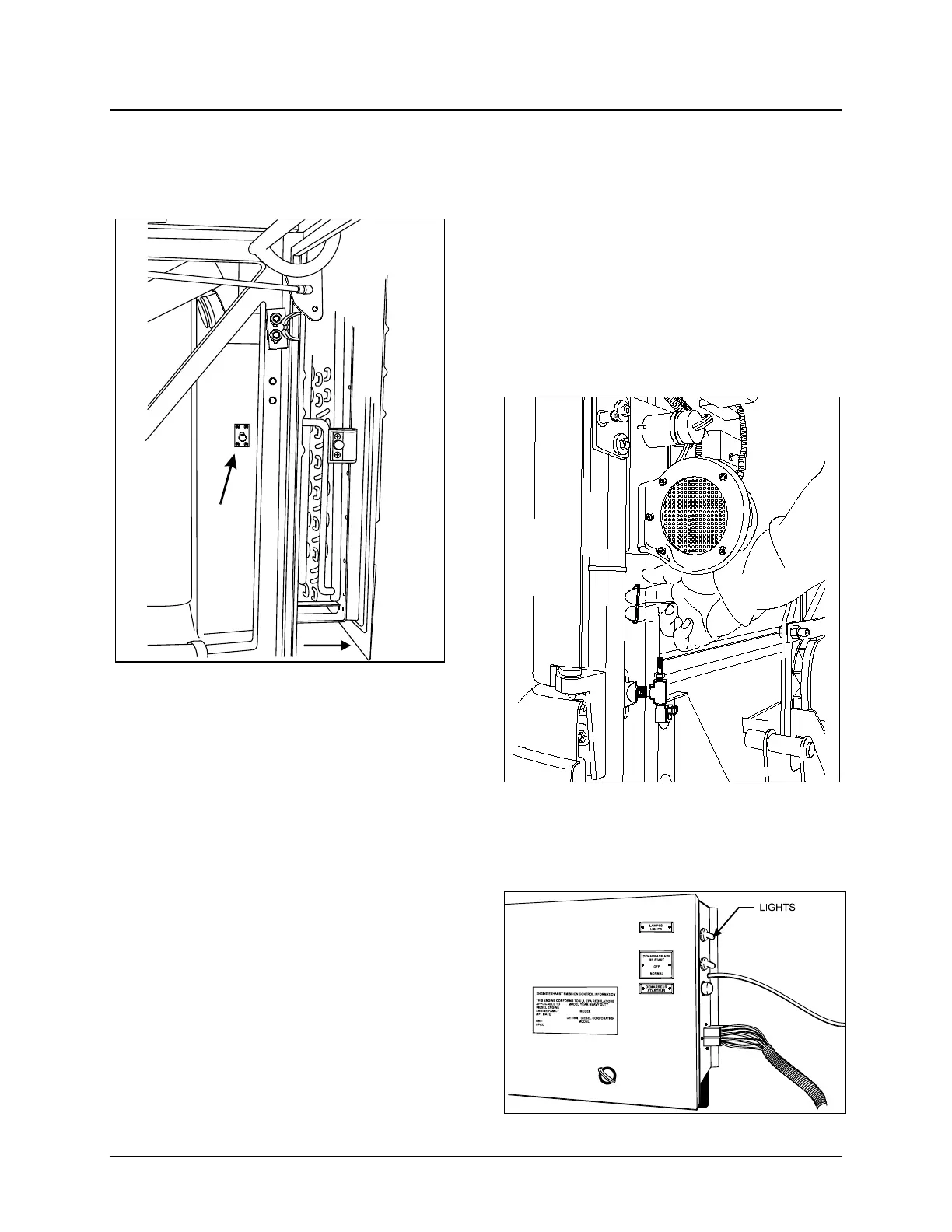

CONDENSER DOOR 18378
ENGINE COMPARTMENT REAR
DOORS
To open the engine compartment rear doors,
open the engine compartment R.H. side door
and pull the lever located on the rear door, close
to the bottom door hinge. The engine
compartment doors swing out to provide access
to the following:
• Engine;
• Alternator(s);
• Compressor(s);
• Belt tension valve (refer to Chapter 7, Care
and Maintenance);
• Engine starting selector (refer to chapter 5,
Starting and Stopping Procedures);
• Rear junction compartment;
• Certification plates;
• Diagnostic Data Reader (DDR) receptacle
(refer to chapter 4, Other Features);
• Engine coolant surge tank;
• Air cleaner restriction indicator;
• Engine oil dipstick;
• Engine oil reserve tank;
• Power steering fluid reserve tank;
• Automatic transmission oil dipstick;
• Engine coolant filler cap;
• Primary air circuit fill valve and drain cock;
• 110-120 volt connector (see description
below).
OPENING THE ENGINE COMPARTMENT REAR DOORS
FROM R.H. SIDE DOOR
18371
A catch holding each door open engages when
the door is fully open. Release the catches
before closing the doors. Close the L.H. door
first, then firmly shut the R.H. door.
REAR JUNCTION BOX 06409
1-7
