VEHICLE EXTERIOR
Turn the lights ON in the engine compartment
using the switch on the right-hand side of the rear
junction box.
Warning: Unless otherwise specified, do not
run engine when the engine compartment rear
door is open. Close the engine compartment
rear door before starting the engine.
110-120 Volt Connector

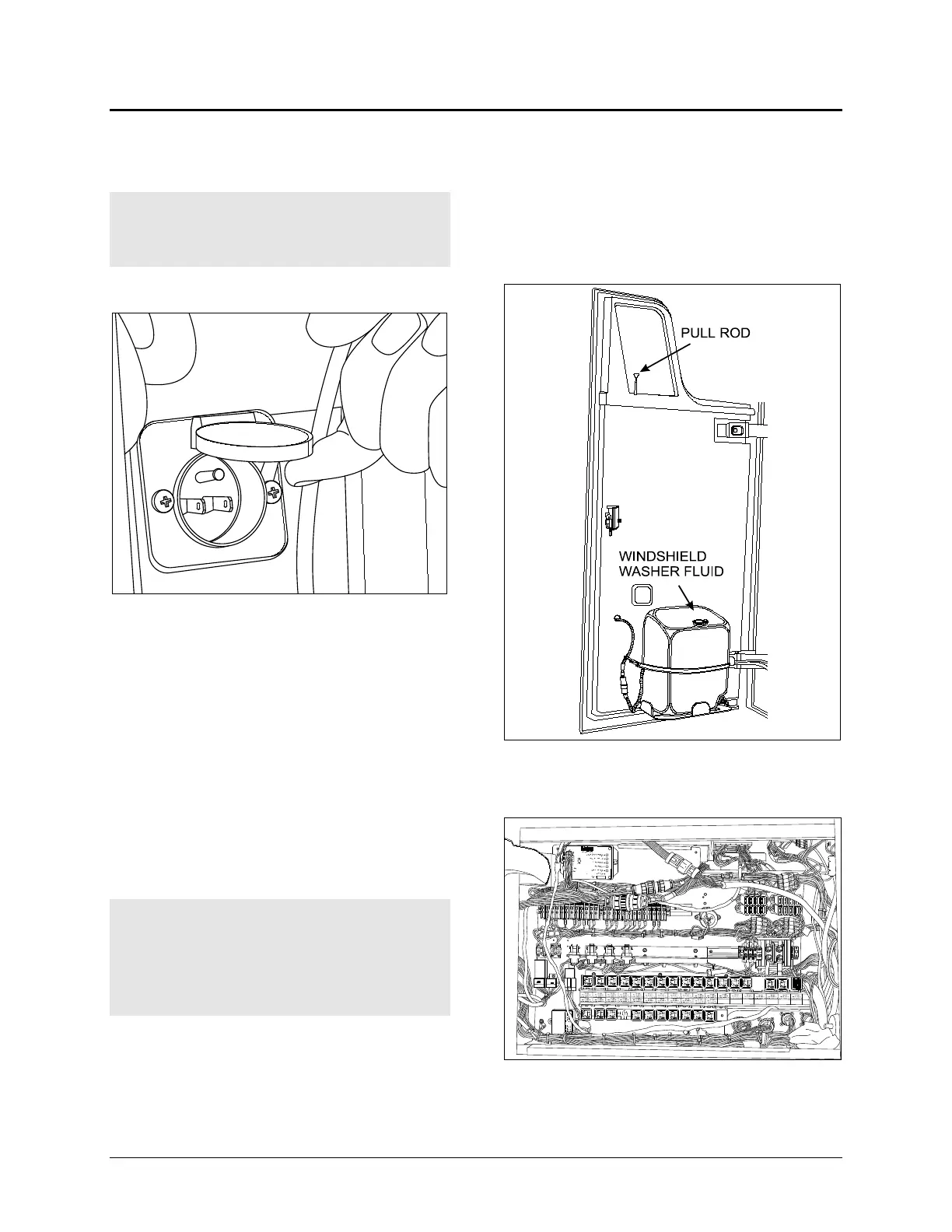

110 VOLT CONNECTOR 06390
This connector is used with a 110-120 volt
supply and is connected to the engine block
heater. Refer to "Other Features" chapter.
To access the connector, open the engine
compartment rear door. The connector is
attached to the R.H. side frame post.
RECLINING BUMPER COMPARTMENT
The front bumper can be tilted downward to give
access to the bumper compartment. Pull the
lever on top of the bumper to unlock. Tilt down
the entire bumper assembly to access the
compartment. Push the bumper back up firmly in
place to lock in position.
Warning: The compartment behind the bumper
is not designed for storage. Never store loose
objects in this compartment since they can
interfere with the steering linkage mechanism.
Use care when opening or closing the reclining
bumper compartment to prevent personal injury.
FRONT SERVICE COMPARTMENT
To open the front compartment door, pull the rod
inside the vehicle, next to the driver’s power
window. The front service compartment provides
access to the following:
• Front junction box;
• Windshield washer reservoir;
• Accessory air tank drain valve;
• Accessory system fill valve;
• ABS electronic control unit and blinker
switch.
FRONT SERVICE COMPARTMENT DOOR 18381
The light in the front electric & service
compartment turns ON automatically when the
door is opened.
FRONT JUNCTION BOX IN SERVICE COMPARTMENT
06397
1-8
