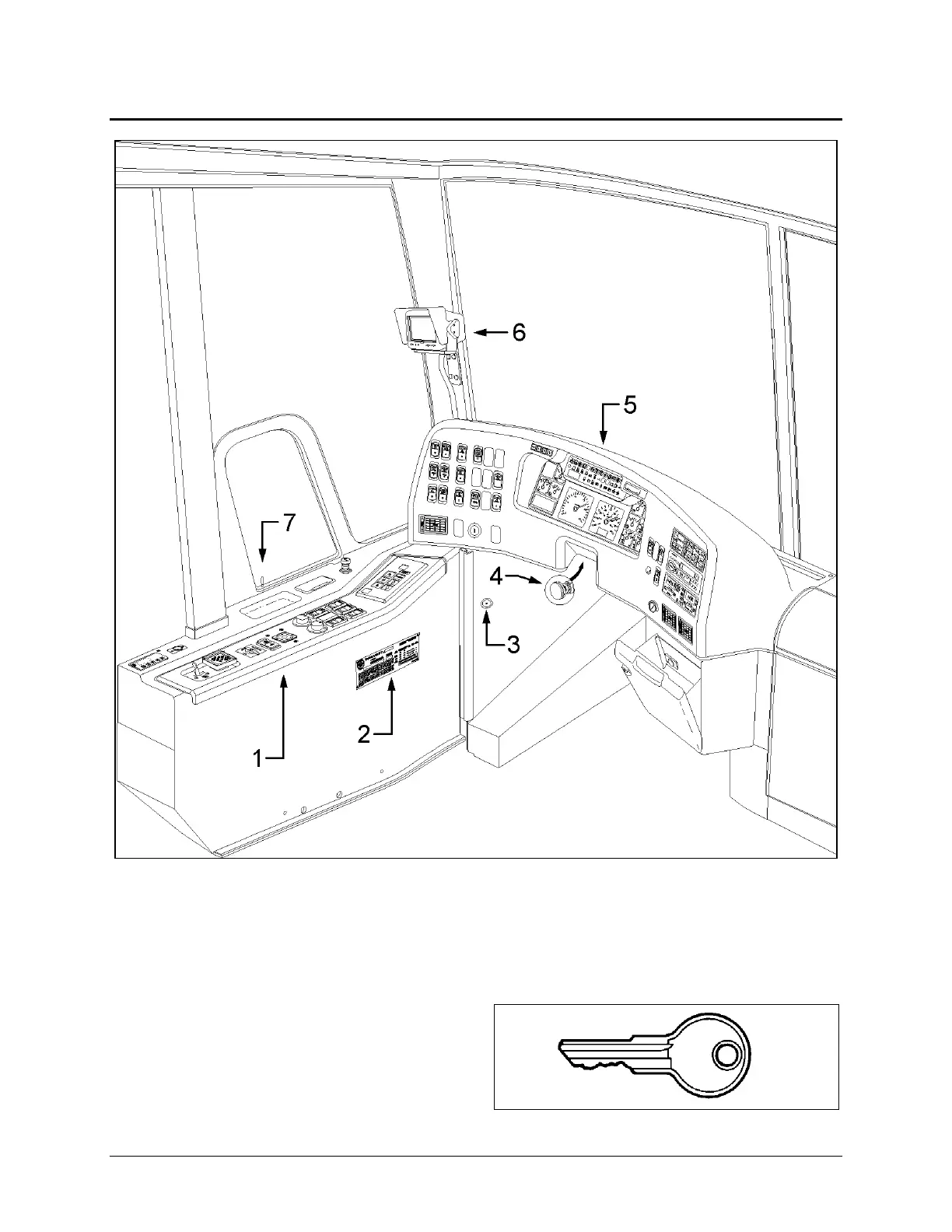

Chapter 3: CON
TROLS
A
ND
INSTRUMEN
TS
DRIVE
R'S A
RE
A
1.
L.H. con
trol pan
el
2.
DOT
certif
ication plate
3.
Diagnostic
Data
Reader (
DDR)
receptacl
e
4.
Foot operat
ed ste
ering
wheel a
djustm
ent
unlock
air valve
5.
Dashboar
d
6.
Rear vie
w TV m
onitor (opt
ional)
7.
Front ser
vice door
unlock
ing pu
ll
-
rod
KEYS
Four diff
erent k
ey m
odels are pro
vided
with the
vehic
le:
IGNIT
ION K
EY
23056
3-1
22
24
