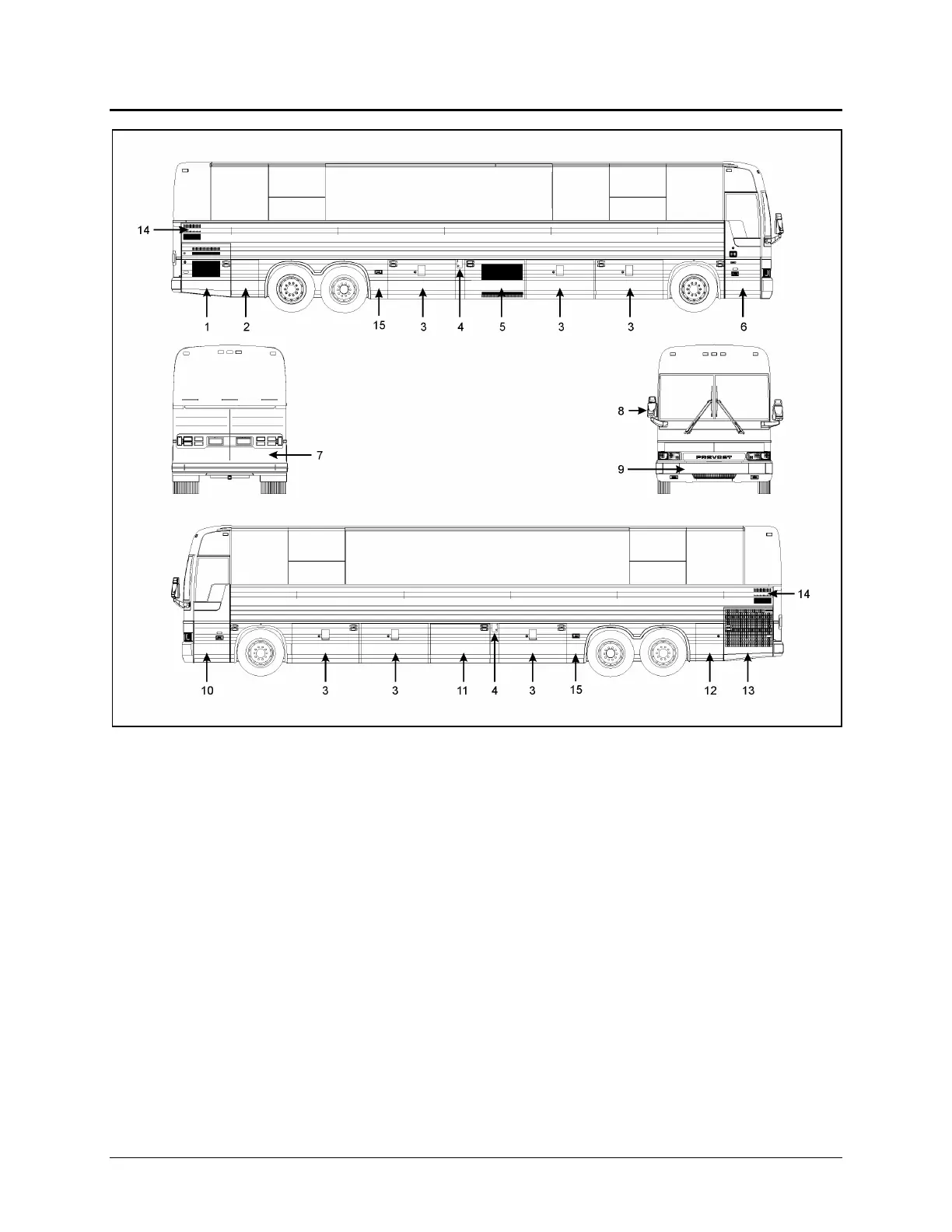

VEHICL
E EXT
ERIO
R
XL2
-
45 EXTE
RIOR VIEW
(TY
P
I
CAL
)
18362
1.
Engine c
ompar
tment R.H.
side d
oor
8.
Rear
-
vie
w m
irr
or
2.
R.H. side r
ear ser
vice com
p
artm
ent
9.
Reclinin
g bum
per
3.
Baggage c
om
partment
10.
Front ser
vice com
partm
ent
4.
Fuel filler
door
11.
Evaporat
or com
partm
ent
5.
Condenser
com
partm
ent
12.
L.H. side r
ear ser
vice c
ompartm
ent
6.
Entranc
e door
13.
Radiator door
7.
Engine c
ompar
tment re
ar doors
14.
Engine a
ir intak
e
15.
Hinged re
ar fender
1-2
7
9
Table of Contents
Table of Contents
2
Safety Precautions
6
Vehicle Exterior
7
Engine Compartment Components
10
Engine Compartment R.h. Side Door
11
Side Rear Service Compart
11
Baggage Compartment
12
Fuel Filler Door
12
A/C Condenser Door
13
Engine Compartment Rear Doors
13
Reclining Bumper Compartment
14
Front Service Compartment
14
Evaporator Compartment
15
Side Rear Service Compartment
15
Radiator Door
16
Entrance Door
16
Keyless Entry System
16
Rear View Mirrors
17
Back-Up Camera
18
Trailer Hitch
18
Headlights
19
Vehicle Interior
20
Driver's Seat - "Delivery
20
Driver's and Co-Pilot's Seats -Isri- (Optional)
20
Pneumatic ISRI Seats
20
Electric ISRI Seats
20
Safety Belts
21
Steering Wheel Adjustment
21
Sunshades (Blinds)
22
Inside Mirrors
22
Adjustable Hvac Registers
22
Windows
22
Driver's Power Window
22
Fixed Windows
22
Awning Windows
22
Sliding Windows
22
Keys
23
Remote Entry Transmitter
24
Ignition Switch
25
L.h. Control Panel
26
Transmission Control Pad
26
Cruise Control Switches
26
Mirror Controls
27
Level Low System
28
Parking Brakes Control Valve
28
Tag Axle Control Valve
29
Coolant Heater Timer
29
12-Volt DC Power Outlet
29
Accessory Pocket
29
Power Window Switch
29
Ashtray
29
L.h. Dashboard Panel
30
Control Switches
30
HVAC Control Unit
34
Air Registers
35
Center Dashboard Panel
35
Cluster
35
Message Center Display (MCD)
35
Gauges
35
Telltale Panel
37
Steering Column Controls
40
Multi-Function Lever
40
Transmission Output Retarder
42
Horns
42
1St
42
2Nd
42
3Rd
42
4Th
42
Foot-Operated Controls
43
Service Brakes
43
Accelerator Pedal
43
Steering Wheel Adjustment Unlock Air Valve
43
Automatic Transmission
43
Operation
44
Range Selection - Push Button Shifter
44
Functions of the Mode Button
44
Reverse
45
Other Features
47
Detroit Diesel Electronic Control (Ddec) System
47
Ddec IV Electronic Control Module (Ecm)
48
Message Center Display (MCD)
48
Gauge Mode
49
Fuel Economy Mode
49
Clock/Dist Mode
50
Set-Up Mode
51
Diagnostic Mode
53
Data Log Mode
55
Passwords
55
Prodriver
56
World Transmission Electronic Control Unit (Ecu)
56
Transmission Retarder
57
Jacobs Engine Brake
57
Anti-Lock Braking System
57
Retractable Tag Axle
57
Variable Assistance Steering Gear
58
Coolant Heater
58
Switching the Heater on
58
Switching the Heater off
59
Coolant Heater Timer
59
110-120 Volt Connector
62
Keyless Entry System
62
Keyless Operating Instructions
62
Programming a Personal Code
63
Procedures
65
Starting Engine from Driver's
65
Compartment
65
Stopping Engine
65
Starting Engine from the Engine
65
Cold Weather Starting
66
Engine Block Heater
66
Engine Warm-Up
66
World Transmission (WT) Warm-Up
66
Emergency Exits
68
Awning Windows
68
Sliding Windows
68
Fixed Windows
68
Roof Escape Hatch
68
Emergency Air-Fill Valves
69
Emergency and Parking Brakes
69
Safety Equipment
70
Fire Extinguishers
70
First Aid Kit
70
Warning Reflectors
70
Jack/Tools
70
Daytime Running Lights
70
Fog Lights
70
Cornering Lights
71
Compartment Lighting
71
Mud Flaps and Splash Guards
71
Back-Up Camera
71
Back-Up Alarm
71
Back-Up Alarm Cancel Switch
71
Alarm System
71
Spare Parts Kit
71
Care and Maintenance
72
Cleaning
72
Seat Upholstery
72
Converter
72
Plastic & Vinyl
73
Windows
73
Stainless Steel
73
Formica
73
Carpet
73
Rubber Components
73
Floor Cleaning
73
Exterior Surfaces
73
Tar or Oil
74
Insects
74
Tree Sap
74
Windows
74
Wiper Blades
74
Fluid Level Verification
74
Engine Oil Level
74
Automatic Transmission Oil Level
75
Power Steering Fluid Level
75
Radiator Fan Gearbox Oil Level
76
Wheel Bearing Oil Level
76
Coolant Fluid
77
Windshield Washer Tank
77
Other Verifications
77
Air Tank Purge
77
Fire Extinguishers
78
Water Separator
78
Belt Tension Adjustment
78
Back-Up Camera
79
Air Filter Restriction Indicator
79
A/C and Heating System Air Filters
79
Driver's Area Filters
80
Cabin System Air Filter
80
Hose Inspection
80
Lubrication
80
Pre-Starting Inspection
80
With Engine Stopped
80
With Engine Running
82
First Service on New Vehicle
82
Engine Oil
82
Automatic Transmission Oil Filter
83
Coolant System Strainer
83
Changing Wheels
83
Jacking Points
83
Hydraulic Jack
83
Towing
84
General Recommendations
84
Walk-Around Inspection (before Every Trip)
86
Lubrication and Servicing Schedule
87
Lubricant Specifications
90
Part Number Specifications
91
Technical Information
92
Dimensions & Weights
92
Capacities
92
Fuel Type
92
Wheels and Tires
92
Belts
93
Engine
93
Transmission
93
Gear Ratios
93
Brakes
93
Brake Chamber Effective Area
93
Air System
93
Anti-Lock Braking System (Abs)
93
Steering
94
Electrical System
94
Suspension
94
Independent Front Suspension
94
Drive Axle
94
Tag Axle
94
Alignment
94
Drive Axle Ratio
94
Front Axle
94
Heating and Air Conditioning
95
Oil Specifications
95
Engine
95
Automatic Transmission
95
Differential
95
Fan Gearbox
95
Power Steering Reservoir
95
Wheel Bearings
95
Pre-Heating System (Optional)
96
Webasto
96
Ddec IV Diagnostic Codes
96
World Transmission (Wt) Diagnostic Codes
98
Diagnostic Code Memory List (WT)
98
Main Code
99
Sub Code
99
Active Indicator
99
Ignition Cycle Counter
99
Event Counter
99
Clearing the Active Indicator and Code Records from the Code List in Memory
99
Code Reading and Code Clearing Procedures
99
Reading Codes
99
Clearing Codes
100
Exiting the Diagnostic Display Mode
100
Clearing Records from the Code List in Memory
100
Diagnostic Code Response
100
Diagnostic Code List and Description
101
Oil Level Sensor (Ols) Codes
109
Exiting the Oil Level Display Mode
110
Clearing Codes
110
Light Bulb Data
110
Plates and Certification
111
Safety Certification
112
DOT Certification Plate
112
EPA Engine Label
112
Vehicle Identification Number (VIN)
113
Coach Final Record
113
