8.1 Configuring General Settings
Purpose:
Network settings must be properly configured before you operate device over network.
Steps:
1. Enter the Network Settings interface.
Menu > Configuration > Network
2. Select the General tab.

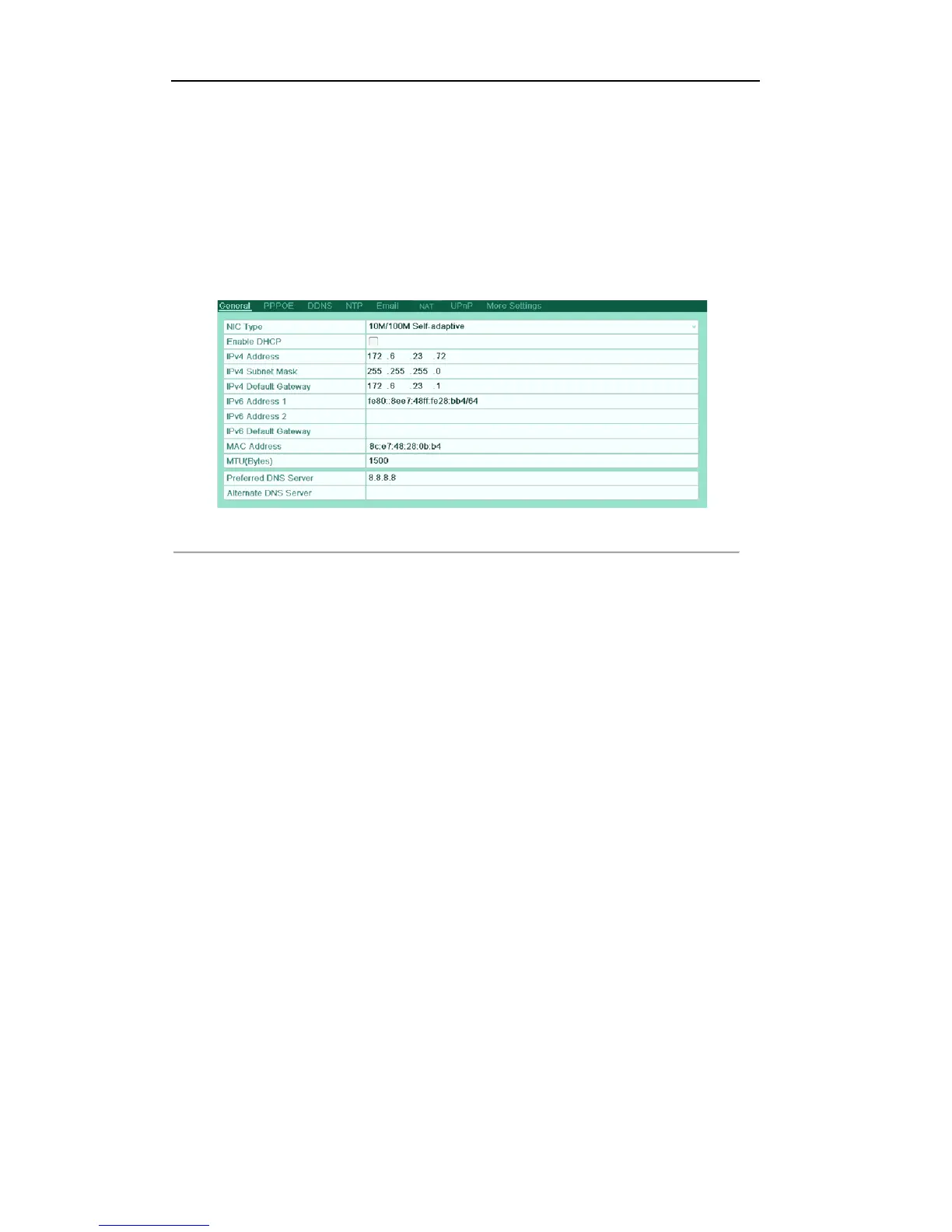

Figure'9.1'General'Network'Settings' '
3. In the General Settings interface:
You can configure the following settings: NIC Type, IPv4 Address, IPv4 Gateway, MTU and DNS
Server.
If the DHCP server is available, you can click the checkbox of DHCP to automatically obtain an IP
address and other network settings from that server.
Notes:
! When the DHCP is failed, the default IP address (192.168.1.64) will be used.
! The valid value range of MTU is 500 ~ 1500.
4. After having configured the general settings, click the Apply button to save the settings.
1. Select the working mode.
Multi-address Mode: The parameters of the two NIC cards can be configured independently. You can
select LAN1 or LAN2 in Select NIC field for parameter settings.
You can select one NIC card as default route. And when the system is connecting with the extranet the
data will be forwarded through the default route.
