User Manual
102

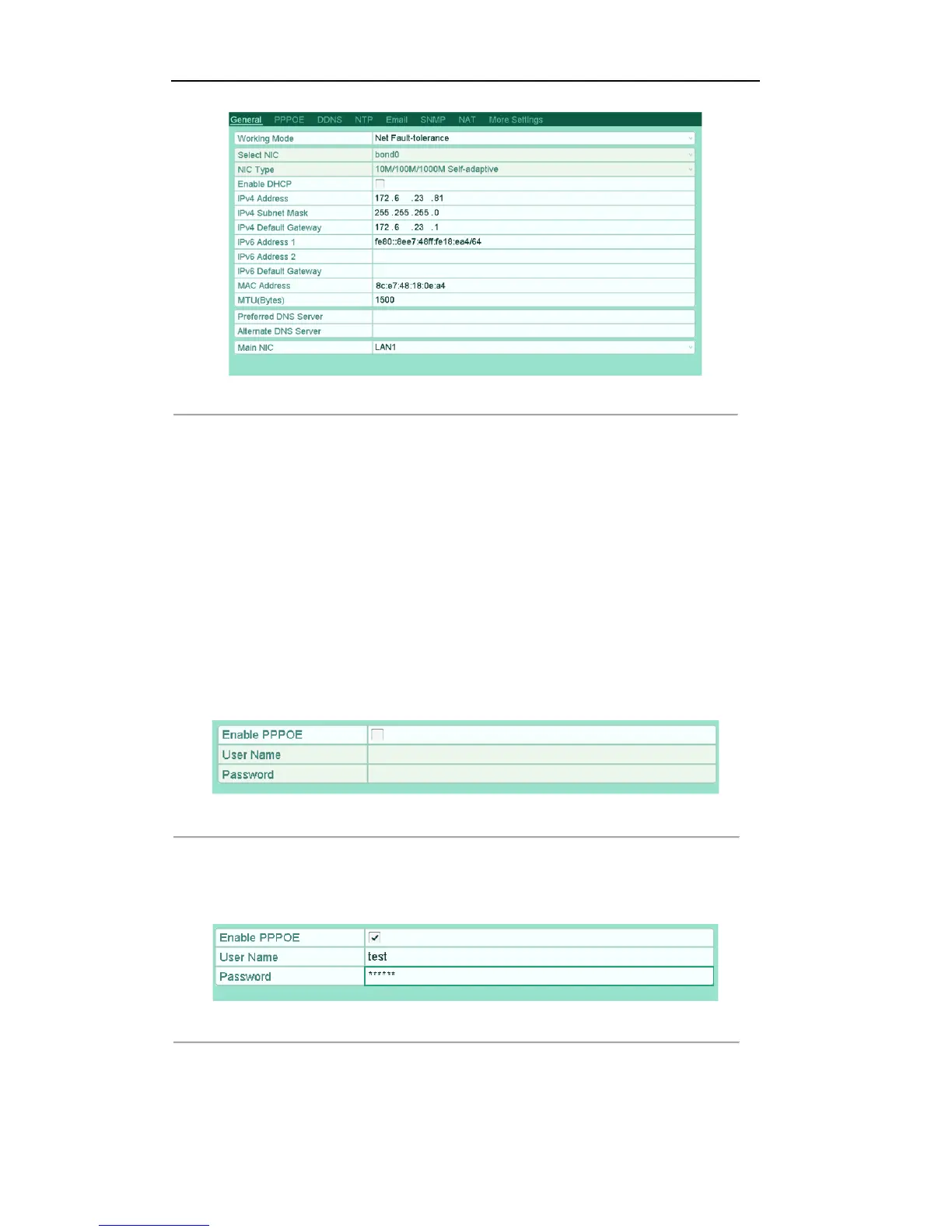

Figure'9.4'Net'Fault[tolerance'Working'Mode'
8.2 Configuring Advanced Settings
8.2.1!Conf igur ing!P P P oE !Se tting s!
Purpose:
Your device also allows access by Point-to-Point Protocol over Ethernet (PPPoE).
Steps:
1. Enter the Network Settings interface.
Menu > Configuration > Network
2. Select the PPPoE tab to enter the PPPoE Settings interface.
Figure'9.5'PPPoE'Settings'Interface'
3. Check the PPPoE checkbox to enable this feature.
4. Enter User Name and Password for PPPoE access.
Note: The User Name and Password should be assigned by your ISP.
Figure'9.6'PPPoE'Settings'Interface'
5. Click the Apply button to save and exit the interface.
6. After successful settings, the system asks you to reboot the device to enable the new settings, and the
PPPoE dial-up is automatically connected after reboot.
