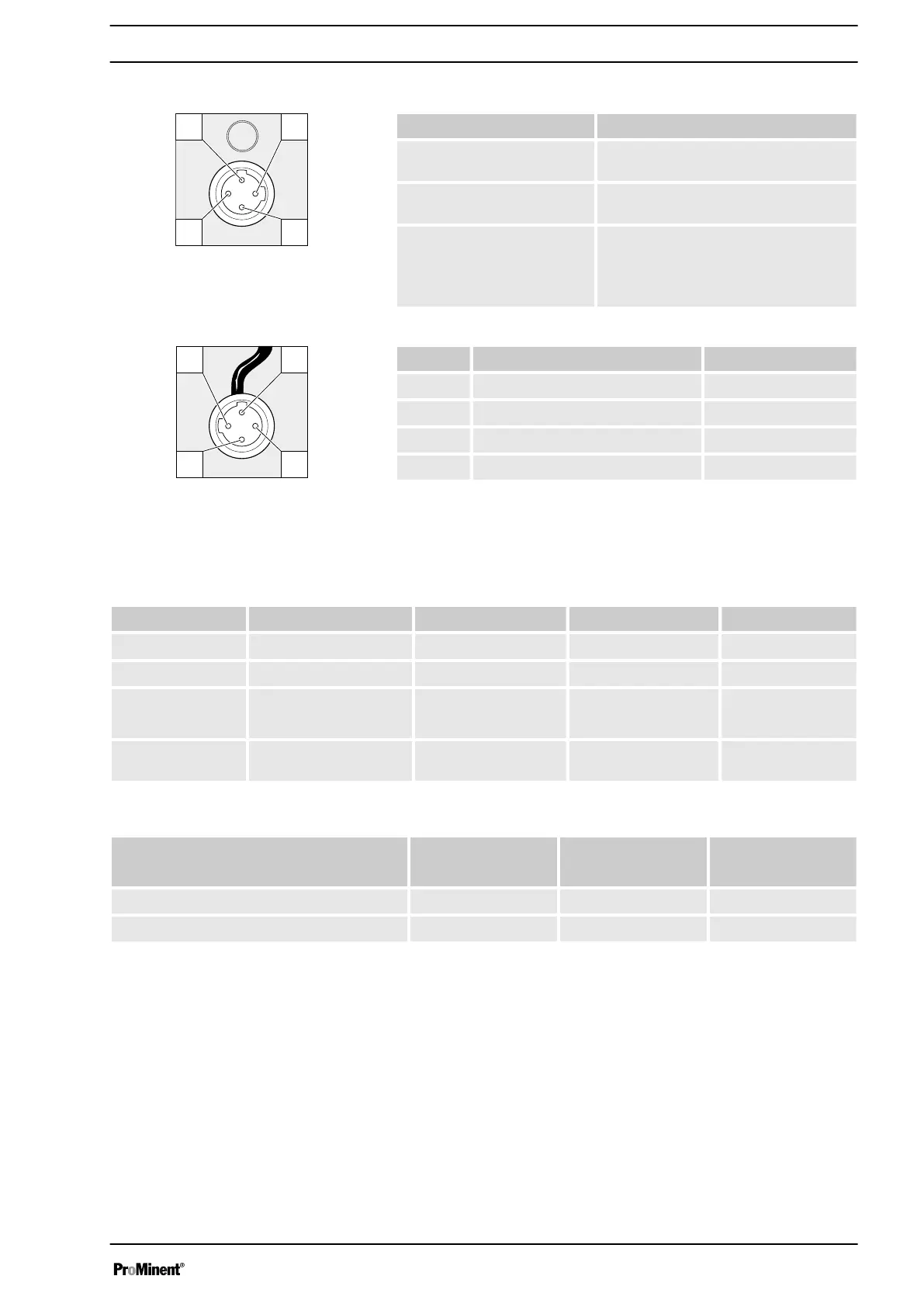

ProMinent DULCO flex Control User Manual

Electrical interface
Specification Value
Supply voltage, approx.: +5 V, can be loaded to 20 mA (current
limitation 150 mA)
Power consumption: min. 10 mA, max. 20 mA (sensor pres‐
ence detection)
Sensor signal: potential-free contact (load: 0.5 mA at
+5 V) or
semiconductor switch (residual voltage
< 0.3 V)
Pin Function 4-wire cable
1 Power supply (5 V) brown
2 not assigned white
3 Sensor signal blue
4 Earth GND black
9.2.6 Relay
9.2.6.1
Relay functions
Tab. 5: DULCO flex Control DFXa
Identity code Designation Type Maximum voltage Maximum current
0 no relay - - -
1 Fault indicating relay Changeover contact 230 V AC 6 A
4 Fault indicating relay +
Pacing relay
Releasing (N/C)
Energizing (NO)
24 V DC
24 V DC
1 A
100 mA
C Fault indicating relay +
4-20 mA output
Releasing (N/C) 24 V DC 100 mA
Tab. 6: Relay type switches in the event of...
Relay type* Level
warning
Level
low
Processor
fault
Fault indicating relay: X X X
Warning relay: X - -
* Can be reprogrammed in the
‘Relay’ menu.
9.2.6.2 "Fault indicating relay" output (identity code 1)
A fault indicating relay can be ordered as an option - refer to ordering
information in the appendix. It is used to emit a signal when there is a fault
with the pump and for the "Liquid level low, 1st stage" warning message
and "Liquid level low 2nd stage" fault message.
The fault indicating relay can be retrofitted and is operational once
attached to the relay board - refer to "Retrofitting relays" supplementary
operating instructions.
2
1
3
4
P_DE_0011_SW
Fig. 18: Assignment on pump
2
1
3
4
P_DE_0012_SW
Fig. 19: Assignment on cable
Installation, electrical
35
