AHD DVR User Manual
18
Tosetupmaskarea:
① GotoMainMenuSetupLiveMaskinterface.




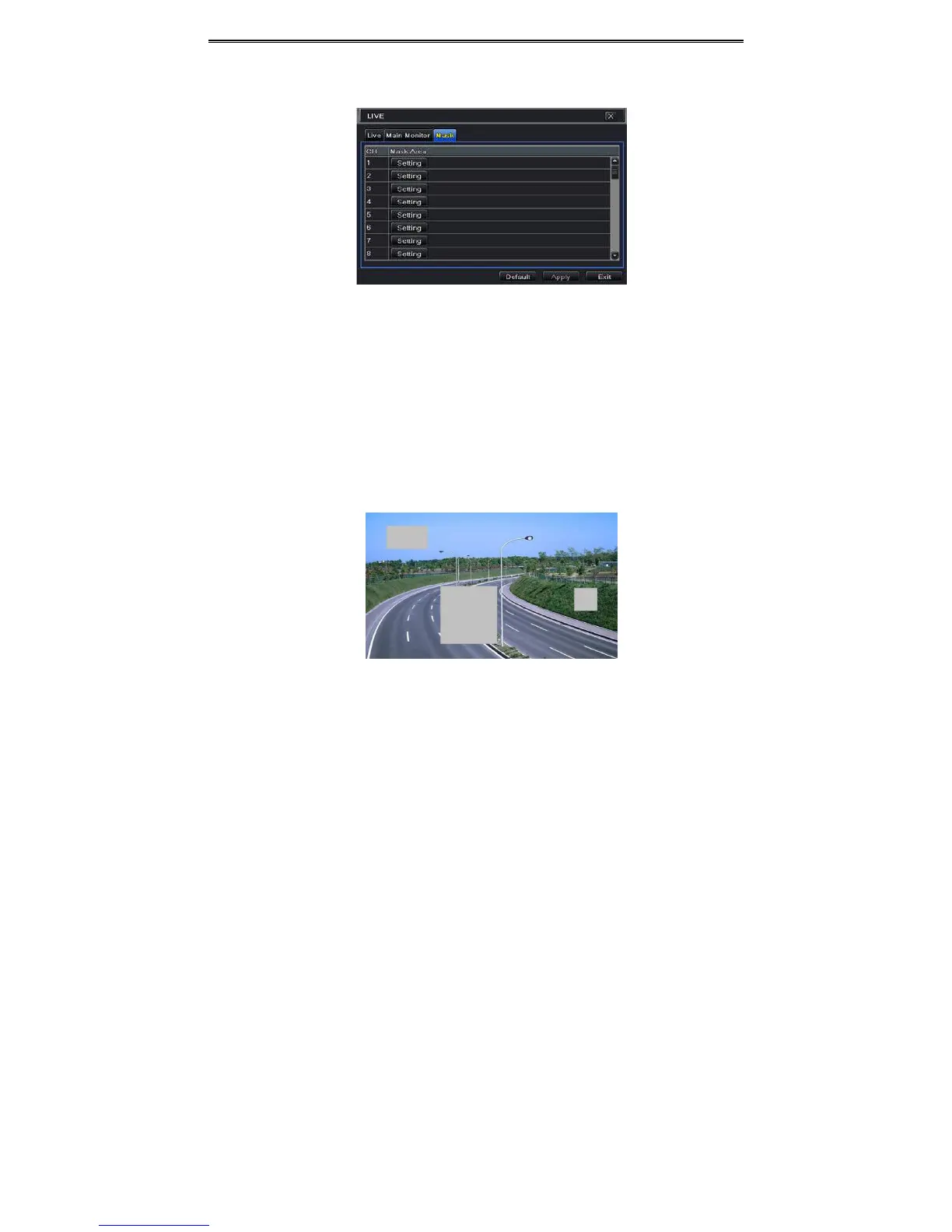

Fig4‐9LiveConfiguration‐Mask

② Click“Setting”buttontogotoliveimage.
③ Pressanddragtheleftmousebuttontosetmaskareaasshownbelow.
④ Rightclicktoexitthemasksettinginterface.
⑤ Click“Apply”buttontosavethesetting.

Todeletemaskarea:
① Click“Setting”buttoninthemaskinterface.
② Selectacertainmaskedareaanddoubleclicktodeletethatmaskedarea.
③ Thenclick“Apply”buttontosavethesetting.


Fig4‐10SettingMaskArea

5.3 RecordConfiguration
Recordconfigurationincludessixsubmenus:enable,recordbitrate,time,recyclerecord,stamp
andsnap.
Before Configuration, please make sure your DVR has been installed with HDD and has
completeditsinitialization.

