Configuration MP.11-R Installation and Management
QoS (Quality of Service) Parameters (BSU Only)
129
• SF Table Reference Index: Select one of the possible SFCs that have been previously configured from the drop-
down box to associate to this QoS Class.
• PIR Table Reference Index: Select one of the possible PIRs that have been previously configured from the drop-
down box to associate to this SFC.
• PIR Priority: This priority per rule defines the order of execution of PIRs during packet identification process. The PIR
priority is a number in the range 0-63, with priority 63 being executed first, and priority 0 being executed last. The PIR
priority is defined within a QoS class, and can be different for the same PIR in some other QoS class. If all PIRs within
one QoS class have the same priority, the order of execution of PIR rules will be defined by the order of definition of
SFCs, and by the order of definition of PIRs in each SFC, within that QoS class.
• Entry Status: This field is always set to Enable.
Click Add to add the entry. The new entry will be listed as the next sequential index entry in the QoS Class Table.
From this screen you may also edit an existing QoS Class by clicking on Details. See View/Edit an Existing QoS Class.
View/Edit an Existing QoS Class

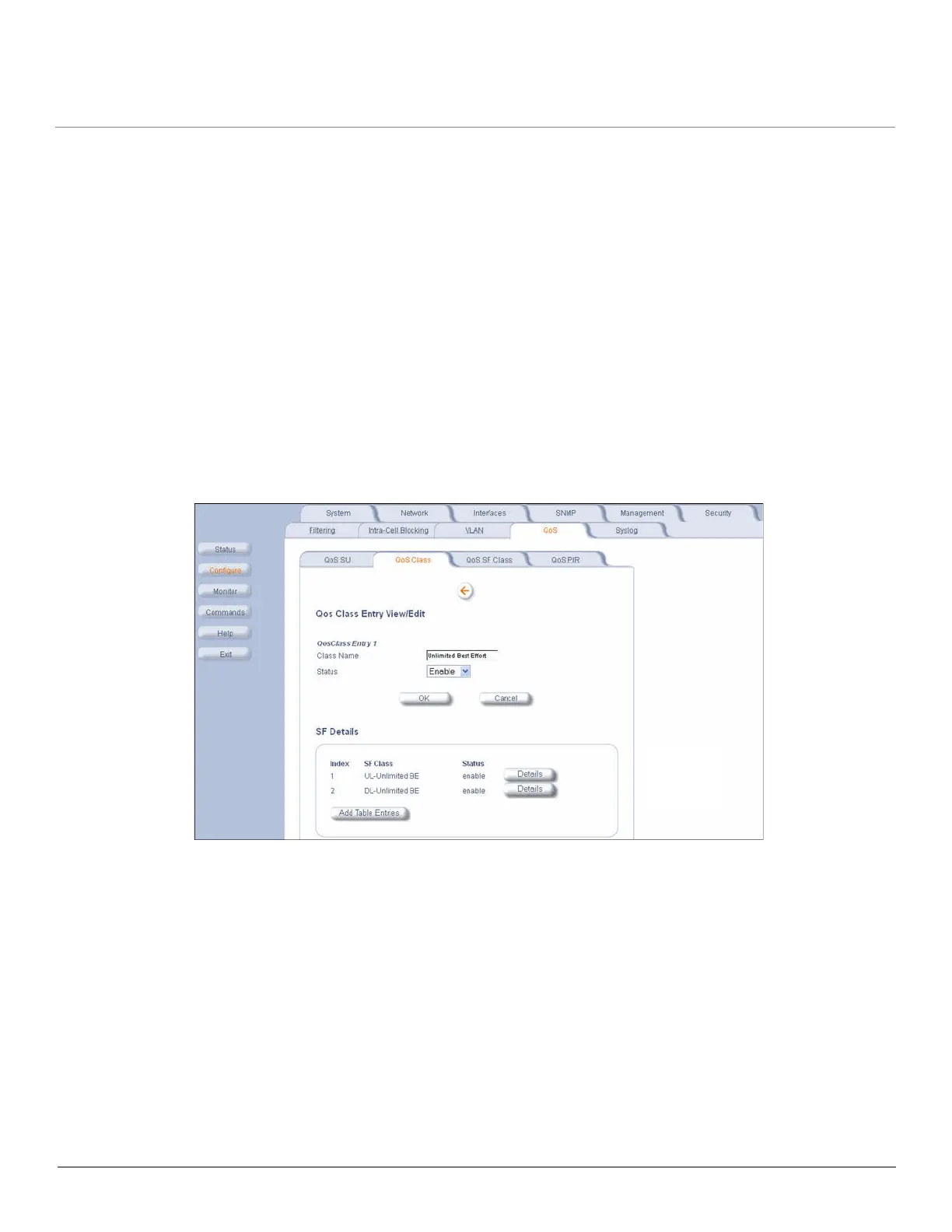

To view/edit a QoS Class click class’ Details.
You may enable, disable or delete this QoS Class entry by clicking on the Status drop-down box and then clicking OK.
You may also edit an existing SFC associated to this QoS class, or associate a new SFC to this QoS class. See the
following sections.
Edit an Existing SFC Associated with the QoS Class
To edit an existing SFC associated to this QoS Class, click Details.
