ConveyLinx-Ai2 Module Hardware Overview
Publication ERSC-1008 Rev 1.1 – October 2017
CONVEYLINX-AI2 MODULE HARDWARE OVERVIEW
ConveyLinx-IO modules are designed to be installed and integrated on or near the mechanical equipment requiring
I/O interface to the control system. Each ConveyLinx-IO provides connection points for up to 8 configurable digital
inputs or outputs, 24V power supply, and Ethernet network cables.

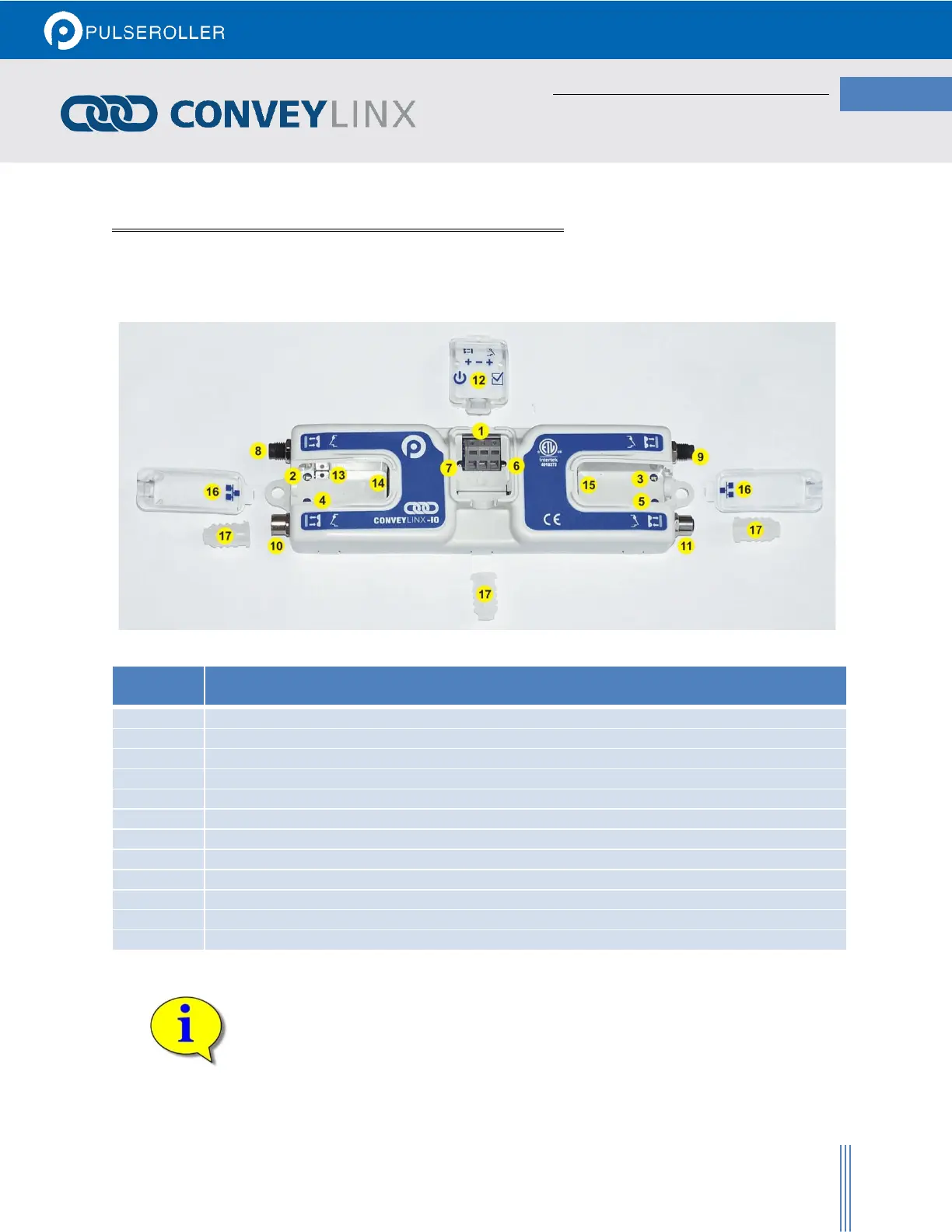

FIGURE 2 – CONVEYLINX-IO MODULE HARDWARE FEATU RE S I DE N T IF I C A TI ON
24VDC Power Terminals with separate connections for Logic and Motors
Left Male & Right Male I/O Port Status LED indicators
Left Female & Right Female I/O Port Status LED Indicators
Module Status LED Indicator
Module Power LED Indicator
Left & Right Male 4-pin M8 style connector for I/O connections
Left & Right Female M8 style connector for I/O connections
RemovableIP54 Power Compartment Cover
Module Replacement Button
Link Left and Link Right – RJ-45 style Ethernet network connection between modules
Removable IP54 Ethernet RJ-45 Port Compartment Cover – Left and Right
IP54 Protection Shrouds for Ethernet cabling and power wiring
* Indicates items shipped unattached to the module but included in the module’s box
The “left” and “right” naming convention for the module ports is based upon facing the
module as shown.
