Pulseroller ConveyLinx-IO User Manual

17
Hardware Connections
Publication ERSC-1008 Rev 1.1 – October 2017

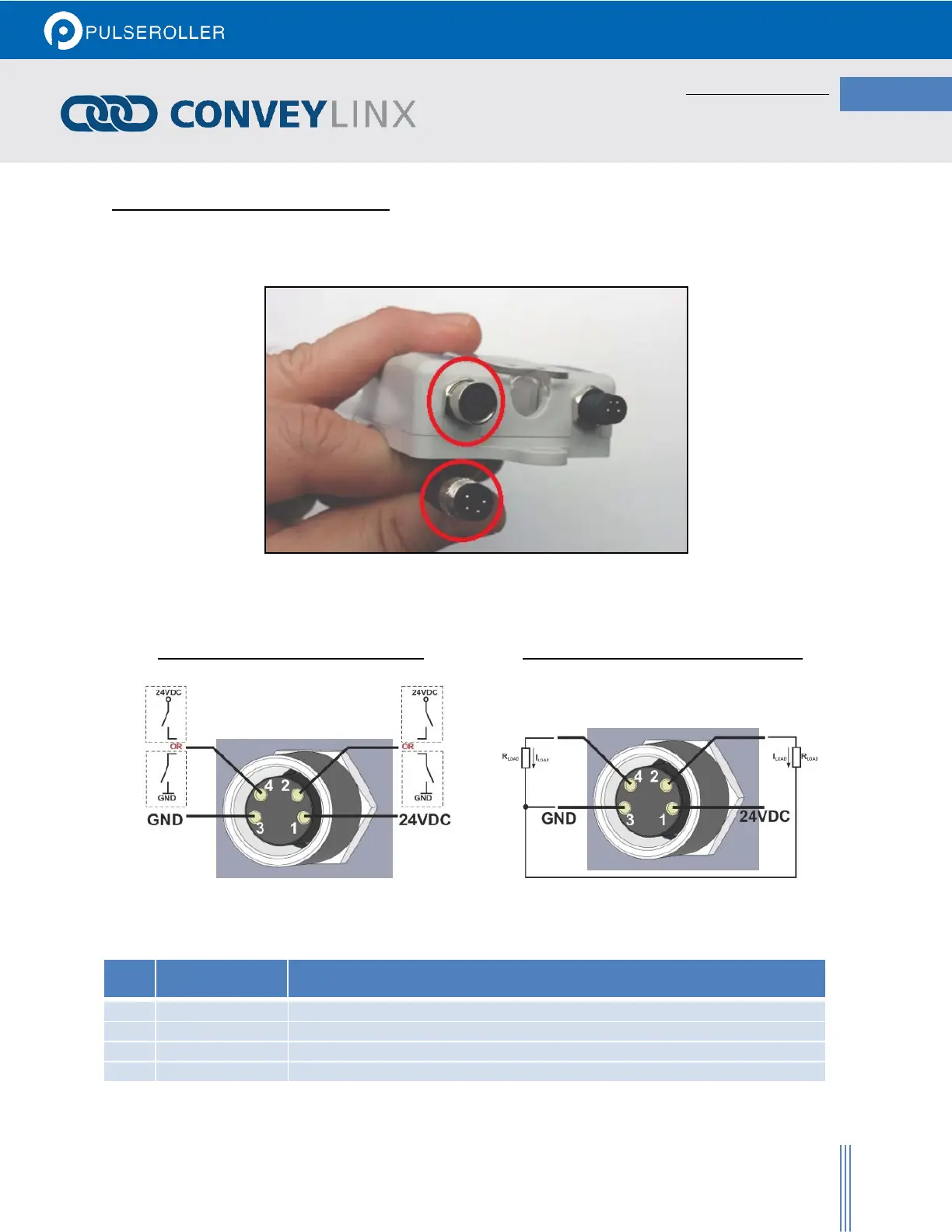

LEFT AND RIGHT FEMALE I/O PORTS
Each port is a standard M8 Female receptacle. Each receptacle is mechanically keyed to assure proper orientation
upon plugging in.
FIGURE 4 - C O N V E Y L I N X -I O F E M A L E M 8 P O R T A N D MATING M8 CONNECTOR
Input Signal Wiring for Female Port
Output Signal Wiring for Female Port
The signals are defined by the following chart:
Pin
Signal
Description
1
24V DC
Module 24VDC Supply
2
I/O
Input or Output signal based upon port configuration
3
GND
Module DC Common
4
I/O
Input or Output signal based upon port configuration
