ETHERNET LEFT AND ETHERNET RIGHT PORTS
Both of these ports are standard RJ-45 jacks conforming to standard Ethernet connection pin-out. In order to
maintain IP54 rating; Ethernet cables need to be equipped with protective shrouds. Figure 5 shows Ethernet
cables installed using shrouds to protect the RJ-45 connectors on the Ethernet cables. Each module is shipped with
3 shrouds.

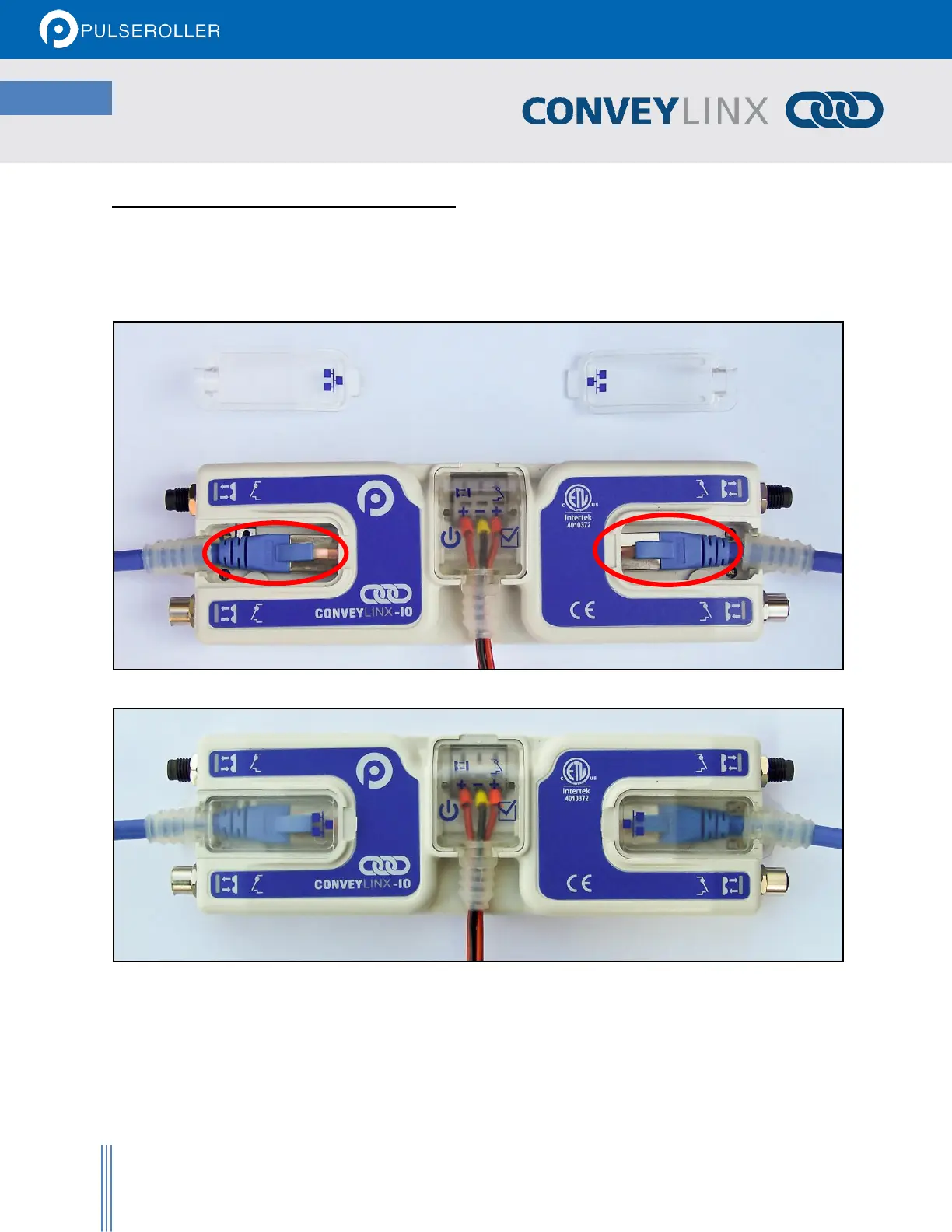

FIGURE 5 – CONVEYLINX-IO WITH LEFT & RIGHT ETHERNET CAB LES (COVERS REMOVED)
FIGURE 6 - ETHERNET CABLES CONNECTED WITH COVERS ATT A C H E D
