ConveyLinx-IO User’s Guide
Publication ERSC-1008 Rev 1.1 – October 2017
HARDWARE CONNECTIONS
LEFT AND RIGHT MALE I/O PORTS
Both of these ports utilize a 4-pin M8 male receptacle. Each receptacle is mechanically keyed to assure proper
orientation upon plugging in. Each of the two signal pins can be configured as a digital input or output.

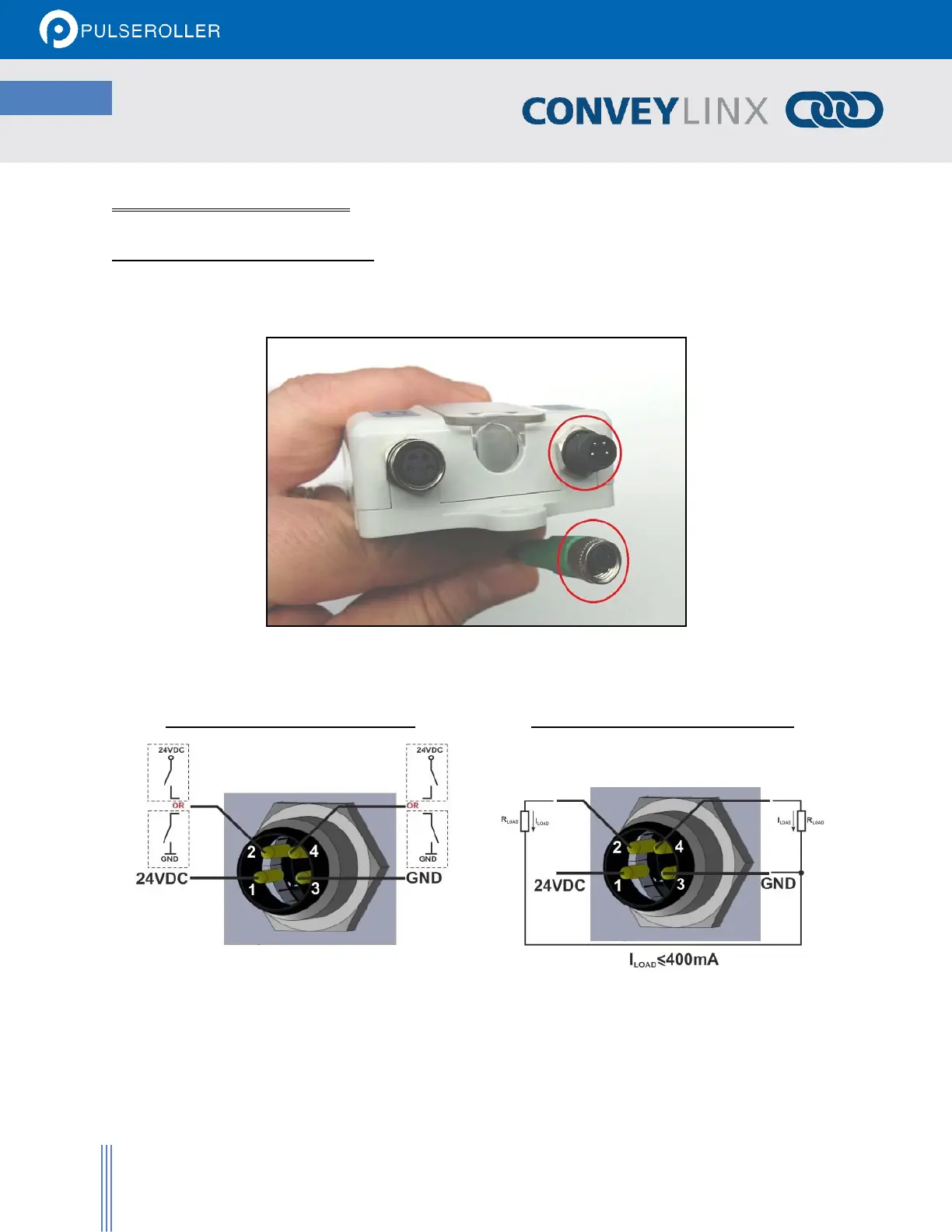

FIGURE 3 - M8 MALE RECEPTACLE AND FEM ALE M8 CONNECTOR
Input Signal Wiring for Male Port
Output Signal Wiring for Male Port
