Auto-Configuration
Publication ERSC-1008 Rev 1.1 – October 2017

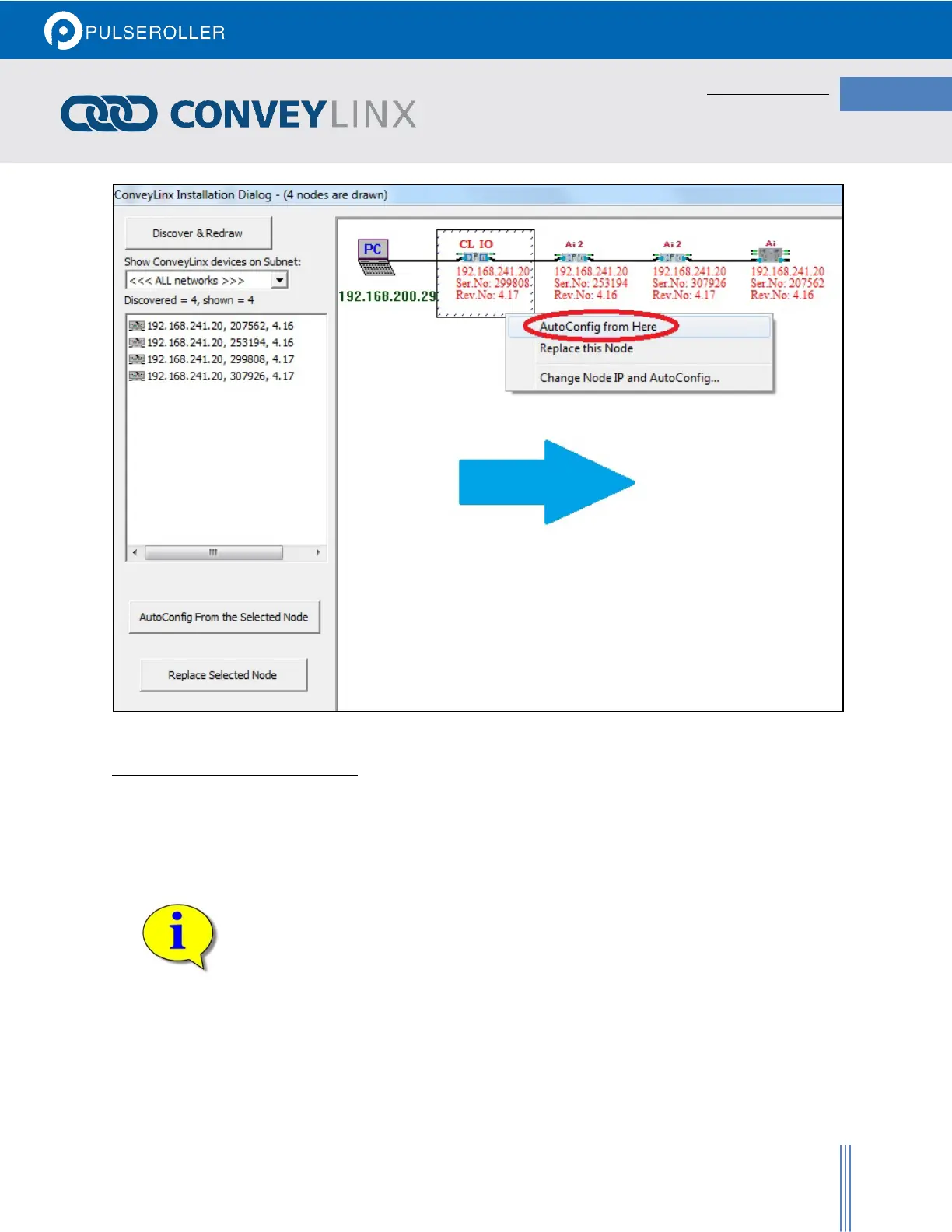

FIGURE 23 - AUTO CONFIGURATION TOPOLOGY VIEW SHOWING D U P L I C A T E I P A D D R E S S ES
AUTO CONFIGURATION RESULTS
NORMAL RESULTS
When the auto-configuration routine is complete, each ConveyLinx module will automatically reboot. When a
ConveyLinx-IO module has been successfully configured and rebooted, its Module Status LED will blink on and off
green.
Please note that the time to complete the Auto-Configuration procedure is dependent on
the number of modules being configured. Larger networks will take more time than
smaller networks.
The topology view will show the module detail information in black text (no longer red) when the auto
configuration is complete and successful as shown in Figure 24.
