Master. Furthermore, when the Auto Configuration Procedure occurs; the Auto Configuration Master will also
have its Node value changed to 20. All downstream ConveyLinx modules will then have their Node values
automatically set beginning with 21.

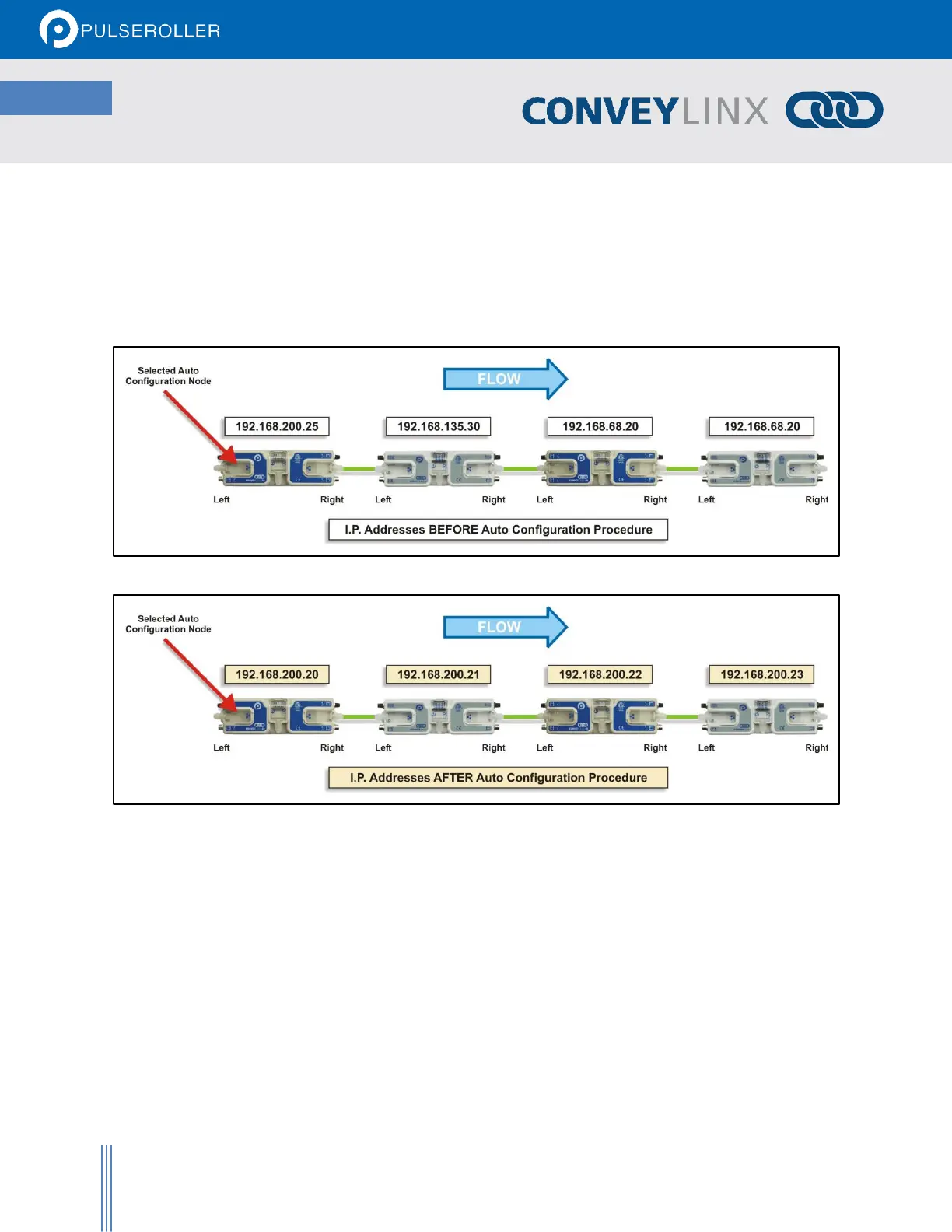

Figure 16 shows 2 ConveyLinx-IO and 2 ConveyLinx-Ai2 installed “out of the box” onto, for example, a conveyor.
Once the Auto Configuration Master is identified and the Auto-Configuration Procedure is performed; all 4
ConveyLinx modules will have their I.P. address configured as shown in Figure 17.
FIGURE 16 - I P A D D R E S S E S B E F O R E AUTO-CONFIGURATION
FIGURE 17 - I P A D D R E S S E S A F T E R A UTO-CONFIGURATION
The Auto-Configuration Procedure will assign Nodes up to and including Node 240. Therefore each Subnet is
limited to 220 ConveyLinx nodes.
