DCA Groups are used to vary the gain of several
channels at once from a single fader without changing
the position of the channel faders. DCA groups also
include a mute function.
NOTE: DCA Groups may also be
accessed by touching Menu> DCA
Groups.
About DCA Groups
When a channel is in one or more DCA Groups,
the output of that channel is equal to the sum of
the DCA fader settings and channel fader settings.
When a channel is in one or more DCA Groups,
the channel and all the DCA Groups must be
unmuted for audio topass. The same rule applies
when a channel is in a DCA, and Mute Group – all
must be unmuted for audio to pass.

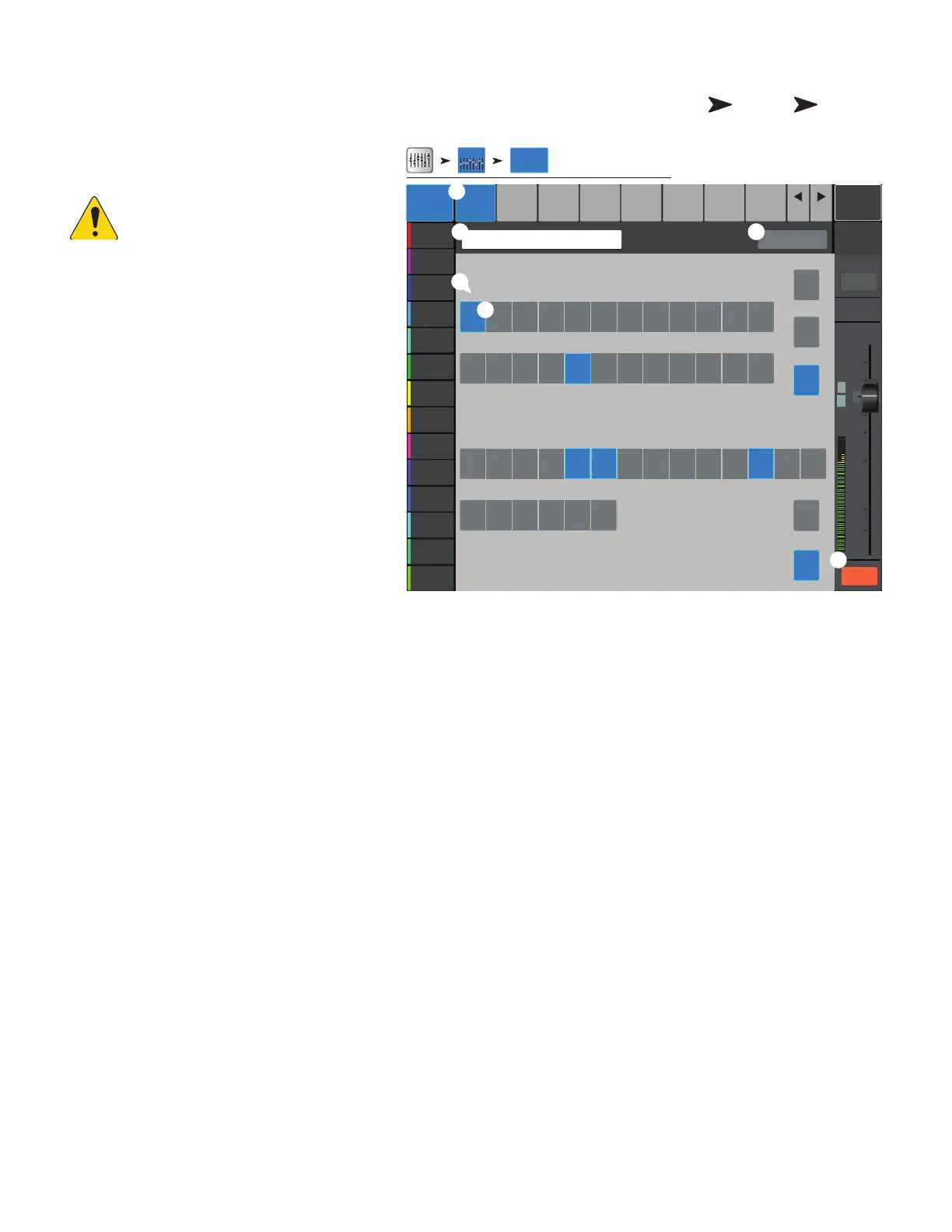

1.
DCA Select button
– Selects the
associated DCA group for editing.
2.
User-defined name field
Touch the
name field to display a keyboard that may be
used to enter a name for the DCA Group.
3.
Clear Assignments button –
Clears all assignments from the selected DCA Group.
4.
DCA system name label –
This name does not change.
5.
Assignment buttons
Touch one of the channel Assignment buttons to add the channel to the selected DCA Group. Inputs,
outputs and FX returns may be assigned to DCA Groups.
6. Main muted – The orange color of the mute button indicates that the channel is muted from a group, such as DCA or Mute Groups.
Press
Home
Touch
DCA Groups
Touch a
DCA
Main Mix
L/R
Joe’s Monitor
Aux 1
Aux 2
Aux 2
Aux 3
Aux 3
Aux 4
Aux 4
Aux 5
Aux 5
Aux 6
Aux 6
Aux 7
Aux 7
Aux 8
Aux 8
Aux 9
Aux 9
Aux 10
Aux 10
Aux 11
Aux 11
Aux 12
Aux 12
Aux 13
Aux 13
Aux 14
Aux 14
My DCA
DCA 3 DCA 6 DCA 8
DCA 2
DCA 7DCA 4 DCA 5
Prev
Next
L
F
10
5
u
5
10
20
0
40
10
Main
Cue
Main
L/R
Mute
Default
Scene:
Aux 2Aux 1
Aux 3
Aux 4 Aux 5
Aux 6
FX 2FX 1 FX
3
FX
4
FX
5
FX
6
Aux 7
Aux 8
Aux 9
Aux 10
Aux 11
Aux 12
Aux 13
Aux 14
21
3
4 5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25/26
27/28
29/30
Inputs
My DCA
Outputs
Clear Assignments
FX 2FX 1 FX
3
FX
4
FX
5
FX
6
Aux 2
Joe’s
Monitor
Aux 3
Aux 4 Aux 5
Aux 6
Aux 7
Aux 8
Aux 9
Aux 10
Aux 11
Aux 12
Aux 13
Aux 14
In 2In 1 In
3
In
4
In
5
In
6
In
7
In
8
In
9
In
10
In
11
In
12
In
13
In
14
In
15
In
16
In
17
In
18
In
19
In
20
In
21
In
22
In
23
In
24
Stereo In
27/28
Stereo In
29/30
Stereo In
25/26
2-Trk PB
Main
L/R
USB
Inputs 1-8
DCA 1
FX
DCA Groups
2
5
1
6
4
3
